REX012864K series 128×64 COG OLED 73.0mm x 41.86mm (2.7″)

SKU: REX012864K Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 73.0 × 41.86 mm
Pixels

128×64
Interface

6800, 8080, I2C, SPI
Construction

COG

Product Description

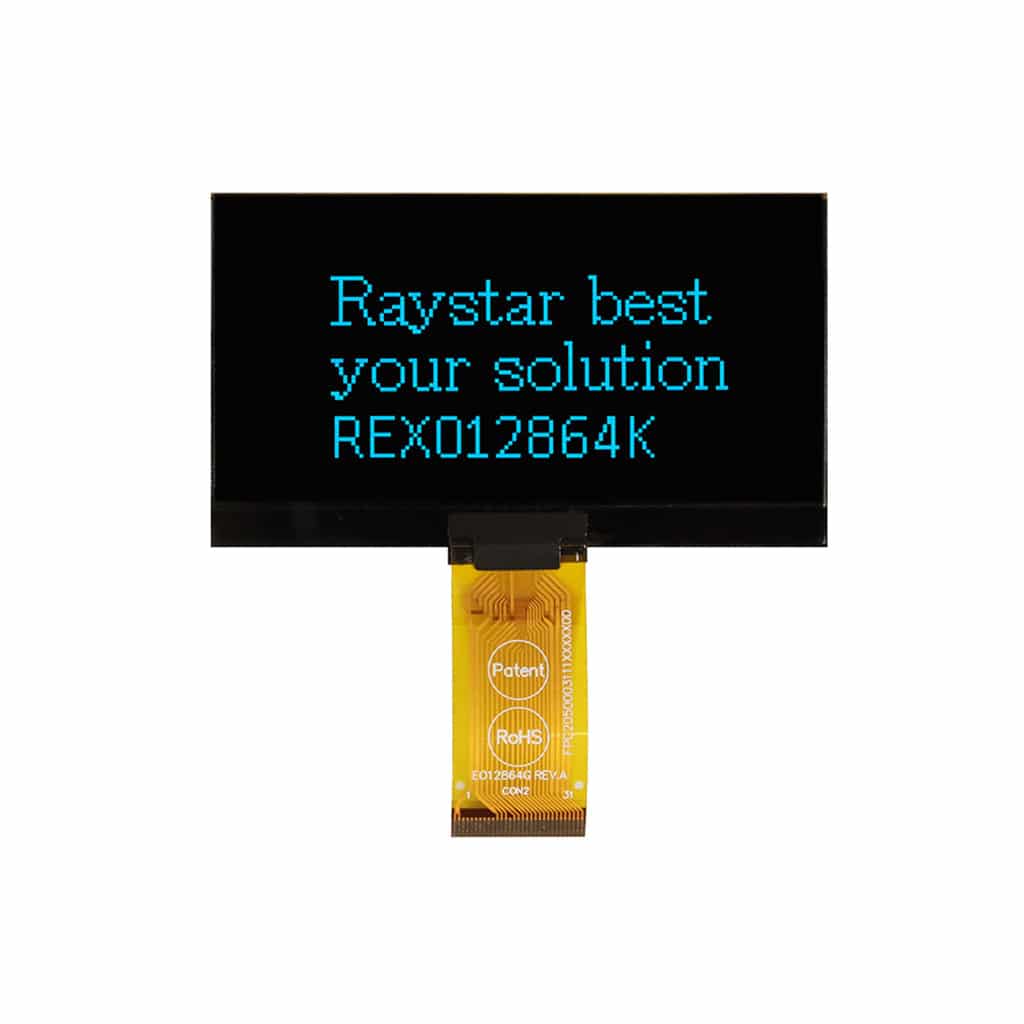

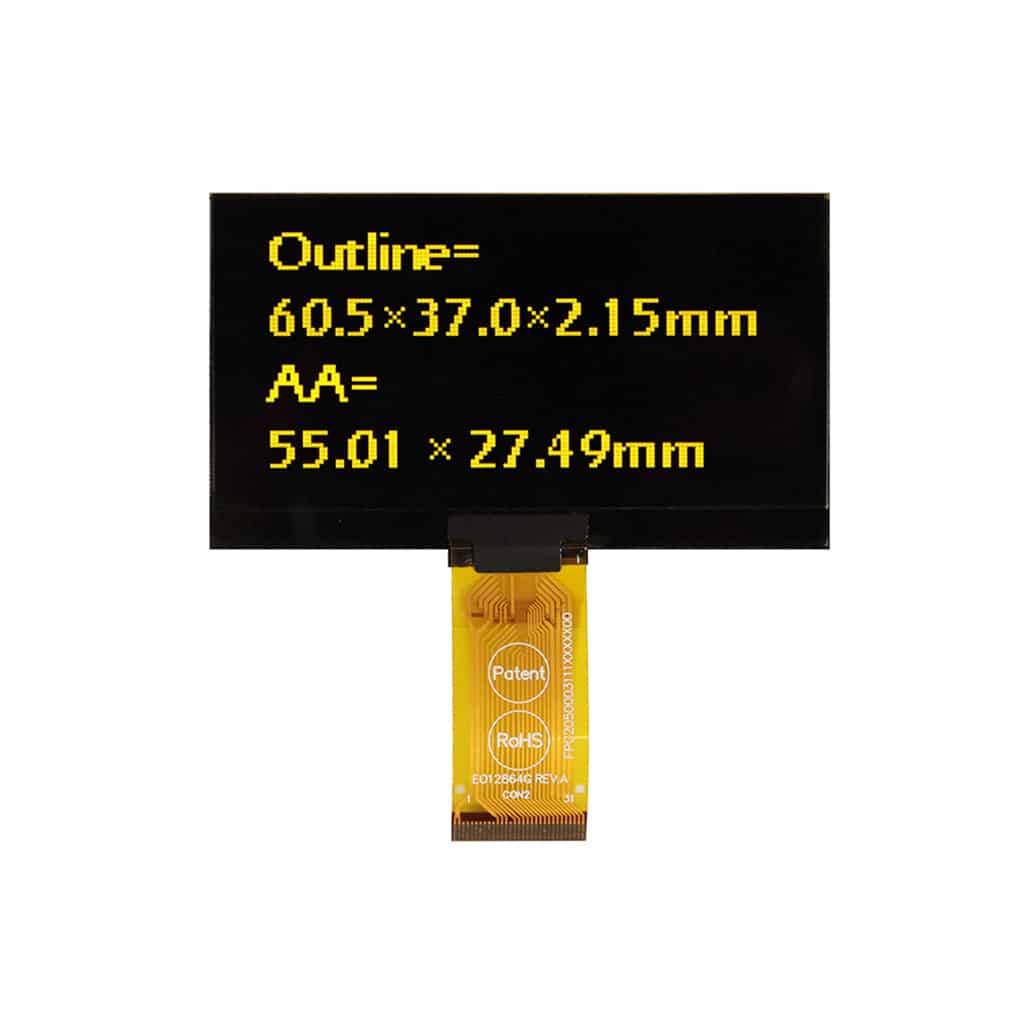

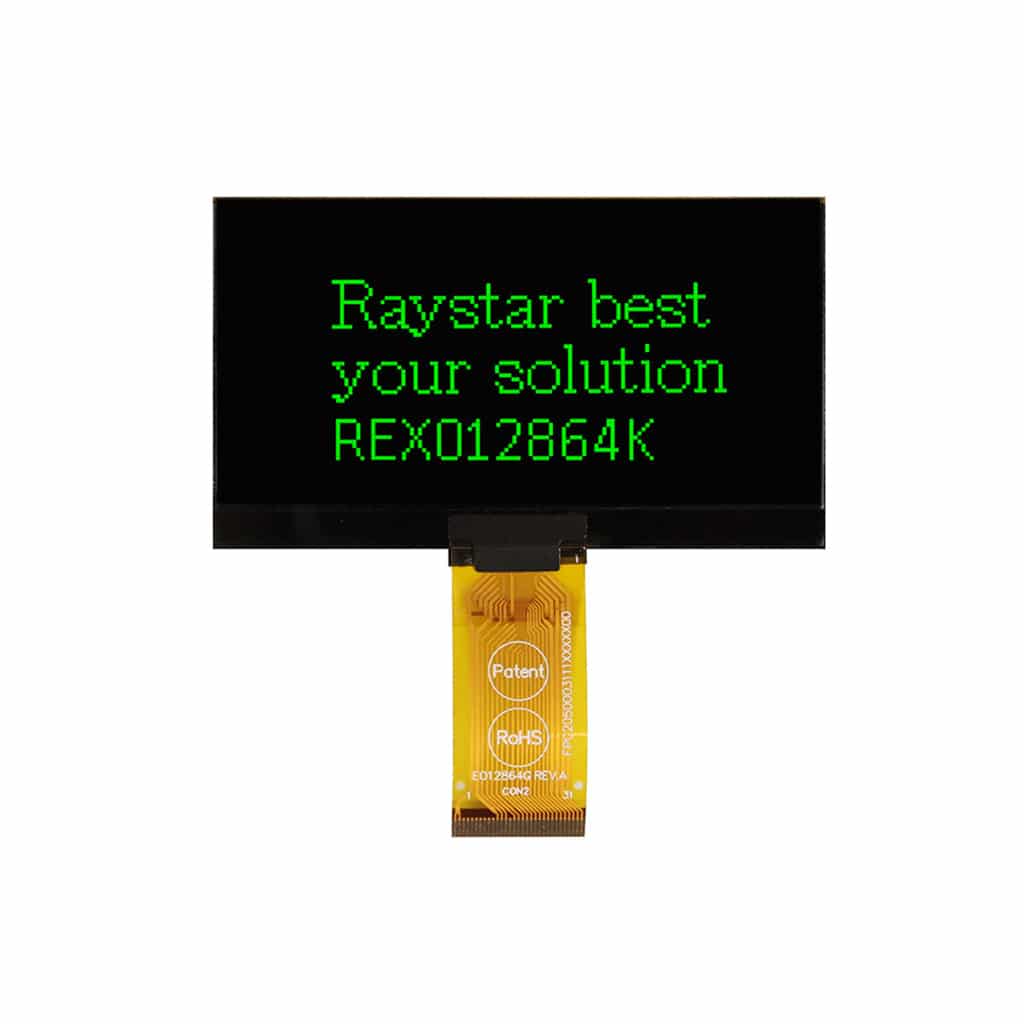

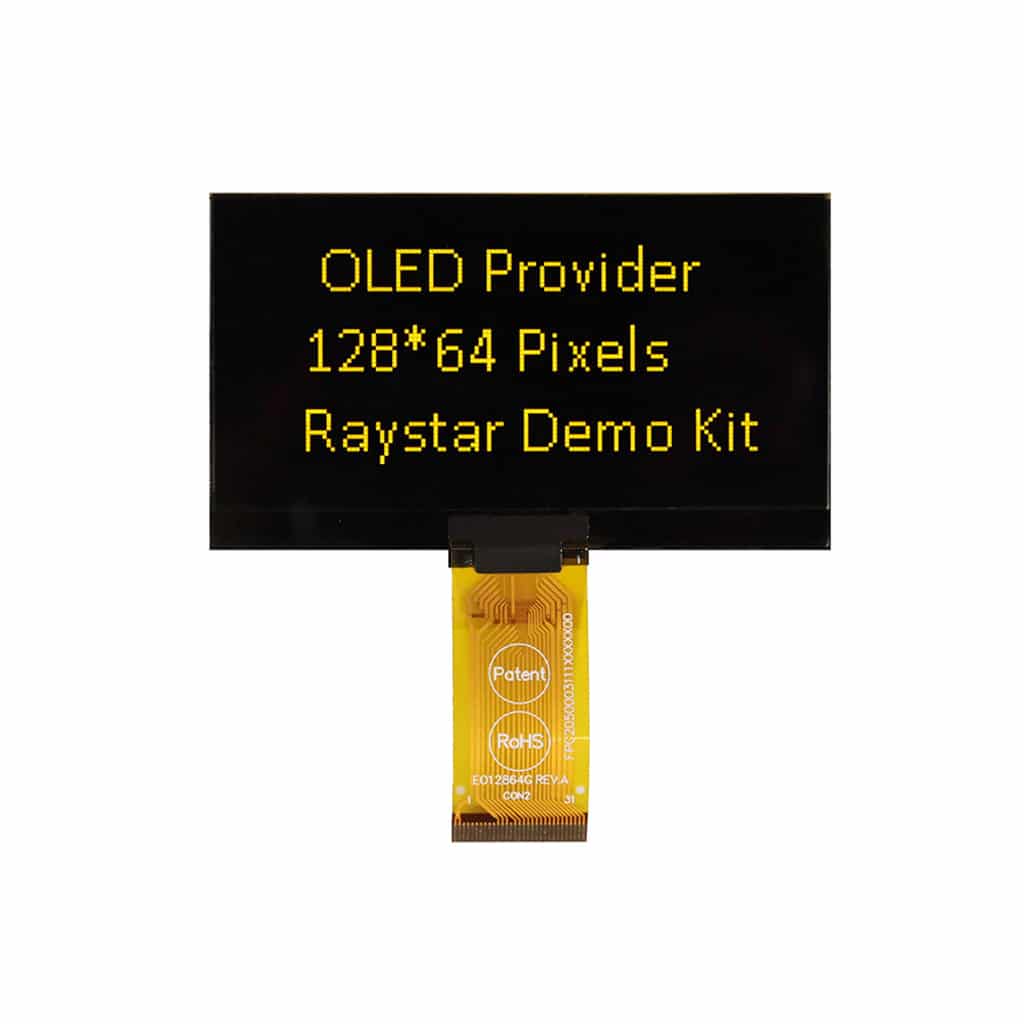

The REX012864K series is a 2.7″ Chip-On-Glass OLED  offering 128×64 pixels within a 63.41mm x 32.69mm viewable area, it comes with an integrated SSD1309ZC IC, and is available in Blue, Green, White or Yellow. This device has a choice of 6800, 8080, SPI or I2C interface











  • 128×64 Graphic OLED
  • Size: 2.7″
  • Available in Blue, Green, White or Yellow
  • Dimensions: 73.0mm x 41.86mm
  • Viewing Area: 63.41mm x 32.69mm
  • Active Area: 61.41mm x 30.69mm
  • Dot Size: 0.45mm x 0.45mm
  • Dot Pitch: 0.48mm x 0.48mm
  • 6800, 8080, I2C or SPI Interface
  • Power Supply: 3V
  • IC: SSD1309ZC
  • Standard Operating Temperature of -40°C to +80°C
