REX012864M 128×64 COG Dual Colour micro-OLED 26.7mm x 19.26mm (0.96″)

SKU: REX012864M Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 26.7 × 19.26 mm
Pixels

128×64
Interface

6800, 8080, I2C, SPI
Construction

COG

Product Description

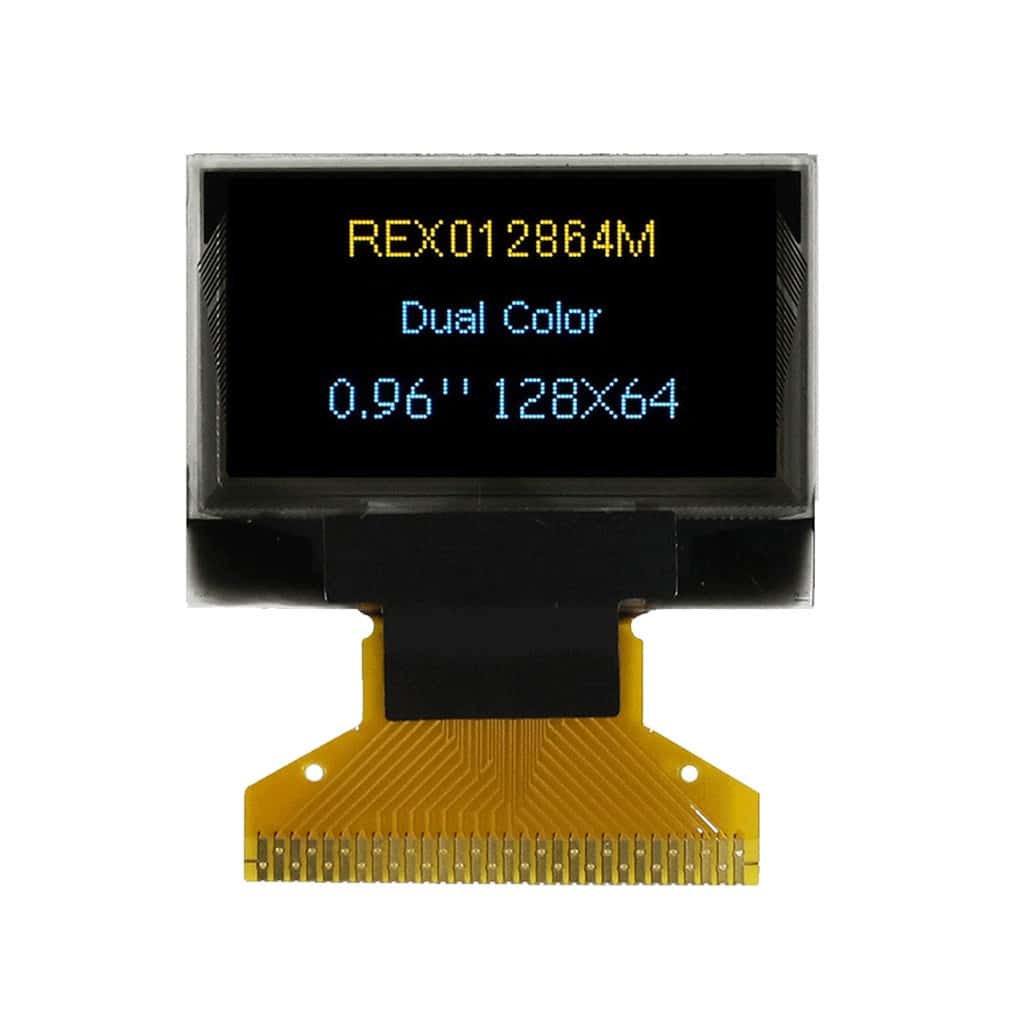

The REX012864MXPP3N00001 is a dual colour 0.96″ Chip-On-Glass OLED  offering 128×64 pixels within a 23.744mm x 13.204mm viewable area, it comes with an integrated SSD1306BZ IC. This device has a choice of 6800, 8080, SPI or I2C interface.

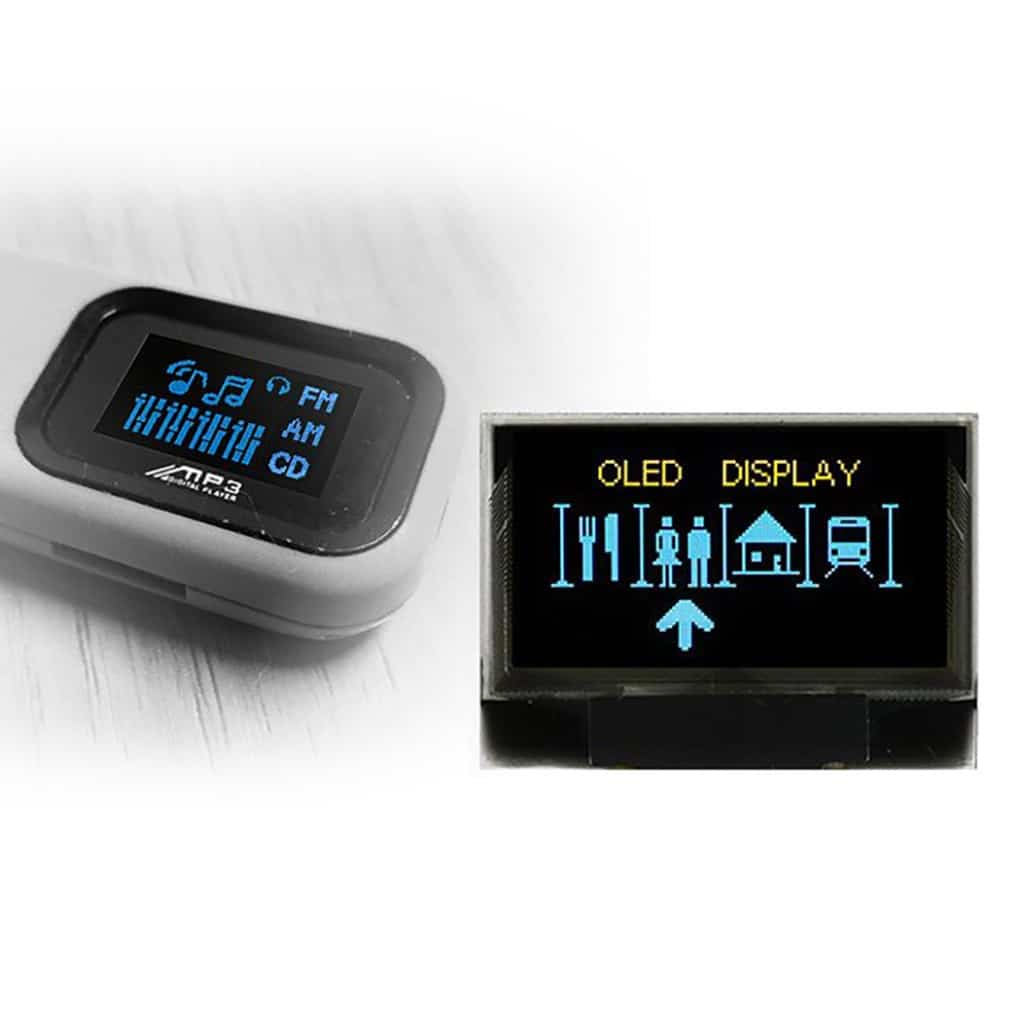

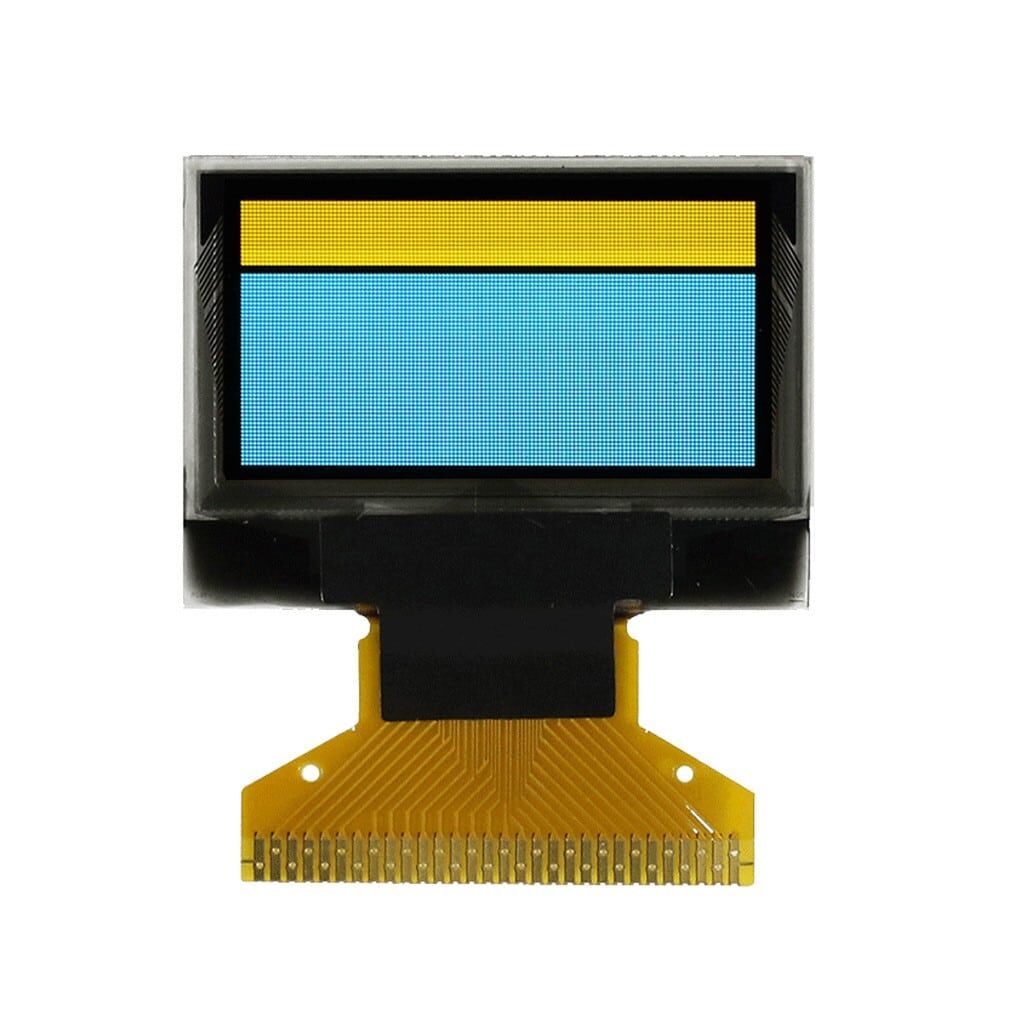

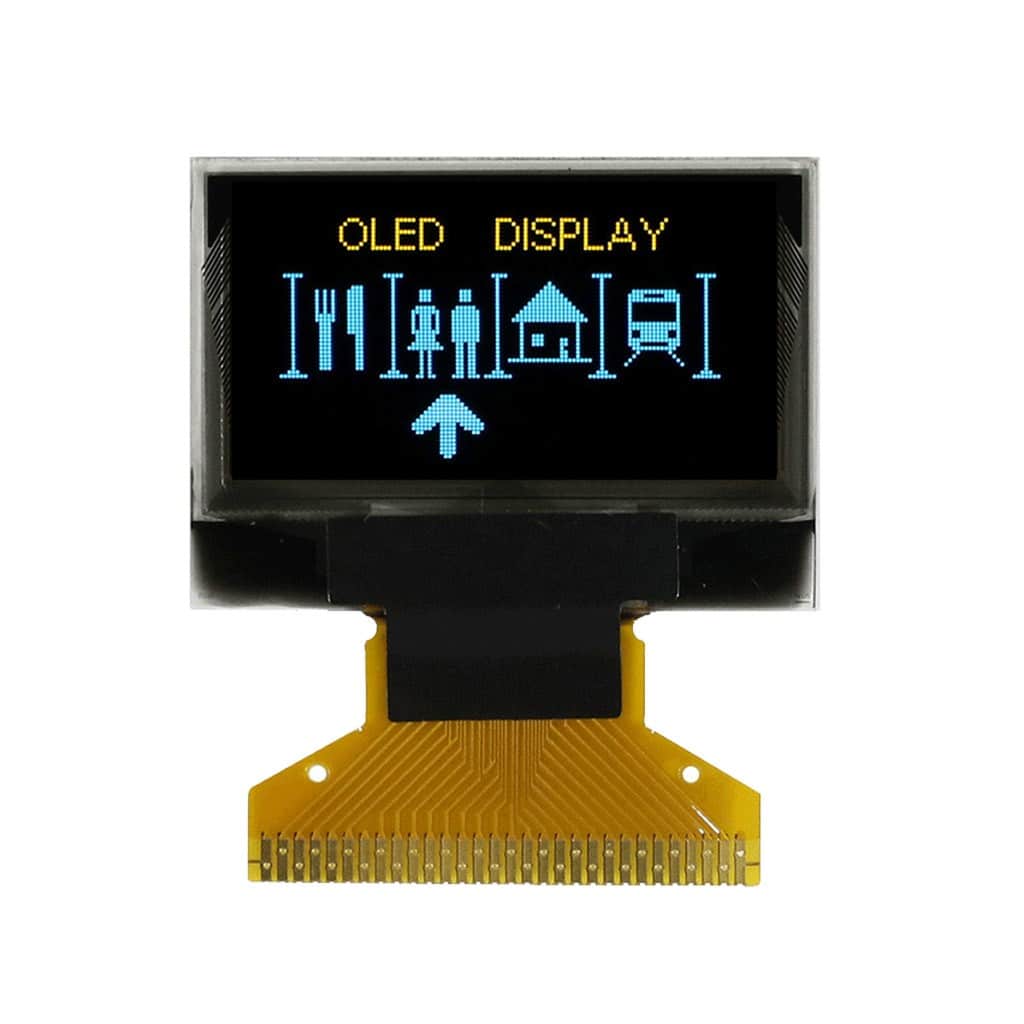

The top section of this OLED (128×16 pixels) is Yellow, with the balance (128×48) being Blue







  • 128×64 Graphic OLED
  • Size: 0.96″
  • Dual Colour: Yellow & Blue

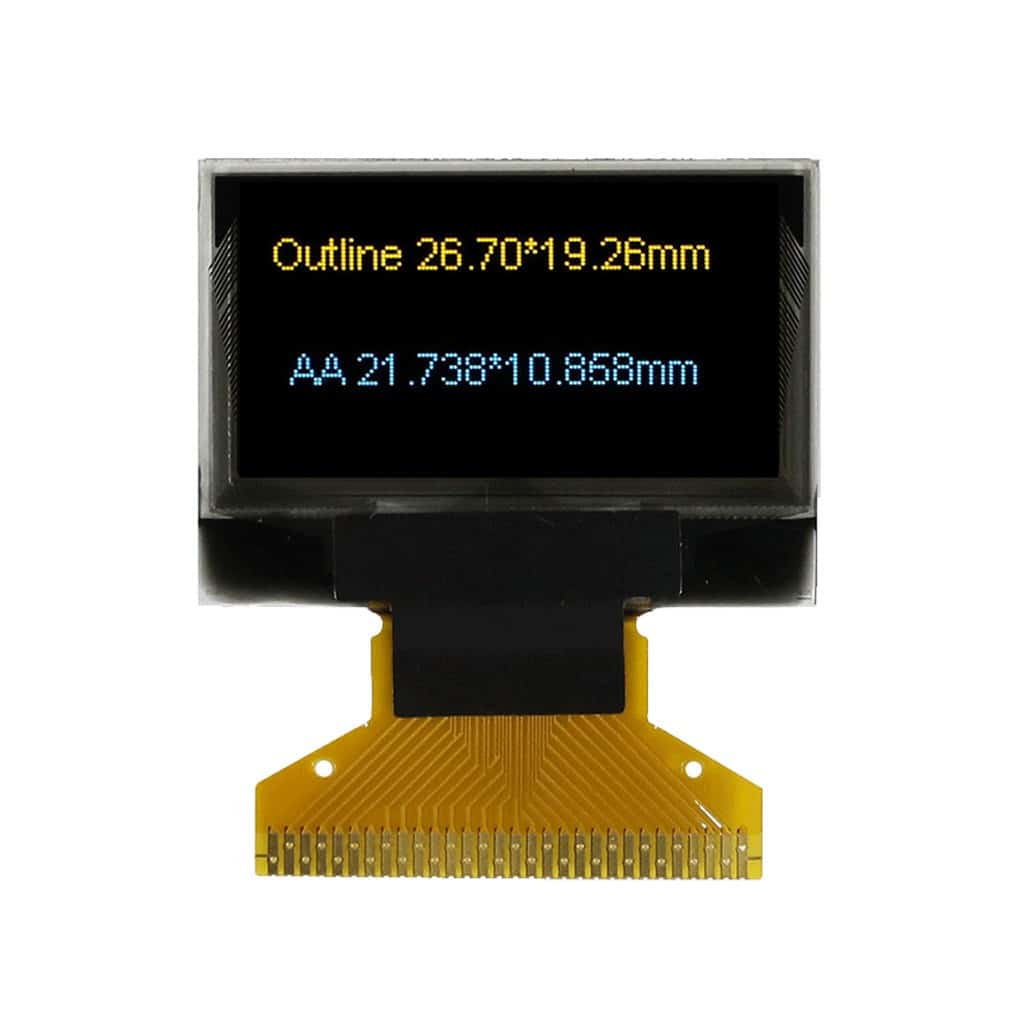

  • Dimensions: 26.7mm x 19.26mm
  • Viewing Area: 23.744mm x 13.204mm
  • Active Area: 21.744mm x 11.204mm
  • Dot Size: 0.148mm x 0.148mm
  • Dot Pitch: 0.17mm x 0.17mm
  • 6800, 8080, I2C or SPI Interface
  • Power Supply: 3V
  • IC: SSD1306BZ
  • Standard Operating Temperature of -40°C to +80°C
