REX025664A-ZIF series 256×64 COG OLED 60.5mm x 19.0mm (2.08″)

SKU: REX025664A-ZIF Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 60.5 × 19.0 mm
Pixels

256×64
Interface

6800, 8080, I2C, SPI
Construction

COG

Product Description

The REX025664A-ZIF series is a 2.08″ Chip-On-Glass OLED  offering 256×64 pixels within a 53.18mm x 14.78mm viewable area, it comes with an integrated SSD1362 IC that supports greyscaling, and is available in either White or Yellow. This device has a choice of 6800, 8080, SPI or I2C interface



This device is also available as a “solder straight on” version, which is part number REX025664A-Hotbar











  • 256×64 Graphic OLED
  • Size: 2.08″

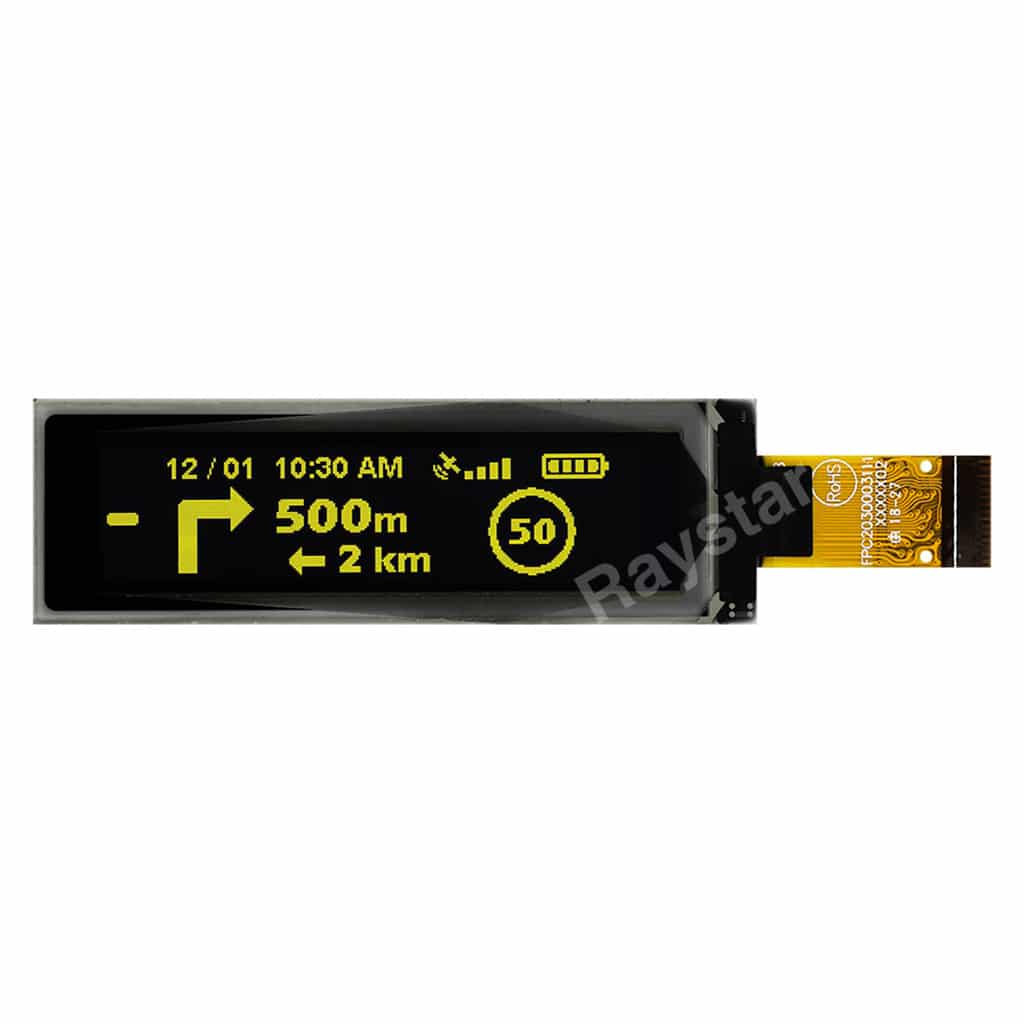

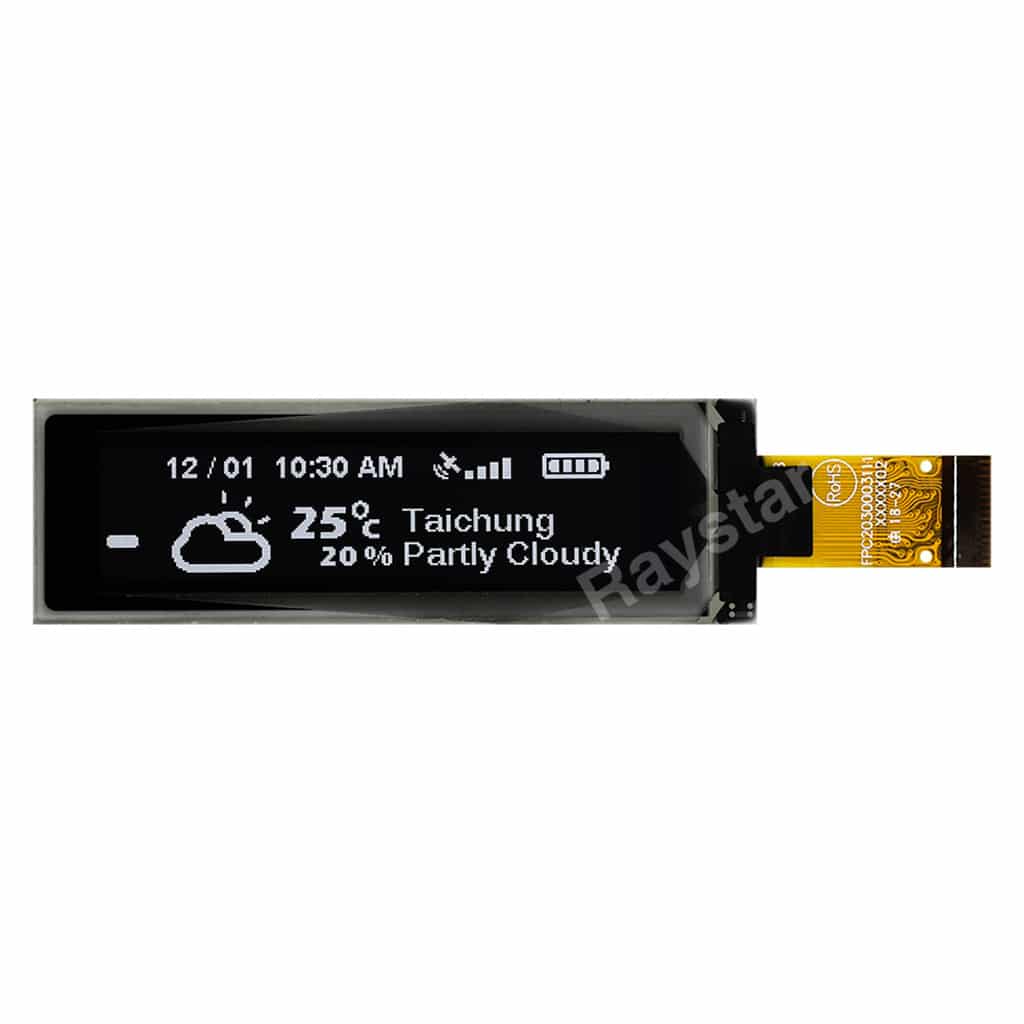

  • Available in White or Yellow
  • Dimensions: 60.5mm x 19.0mm
  • Viewing Area: 53.18mm x 14.78mm
  • Active Area: 51.18mm x 12.78mm
  • Dot Size: 0.18mm x 0.18mm
  • Dot Pitch: 0.20mm x 0.20mm
  • FPC Length: 20.0mm
  • 6800, 8080, I2C or SPI Interface
  • Power Supply: 3V
  • IC: SSD1362 which supoprts greyscaling
  • Standard Operating Temperature of -40°C to +80°C
