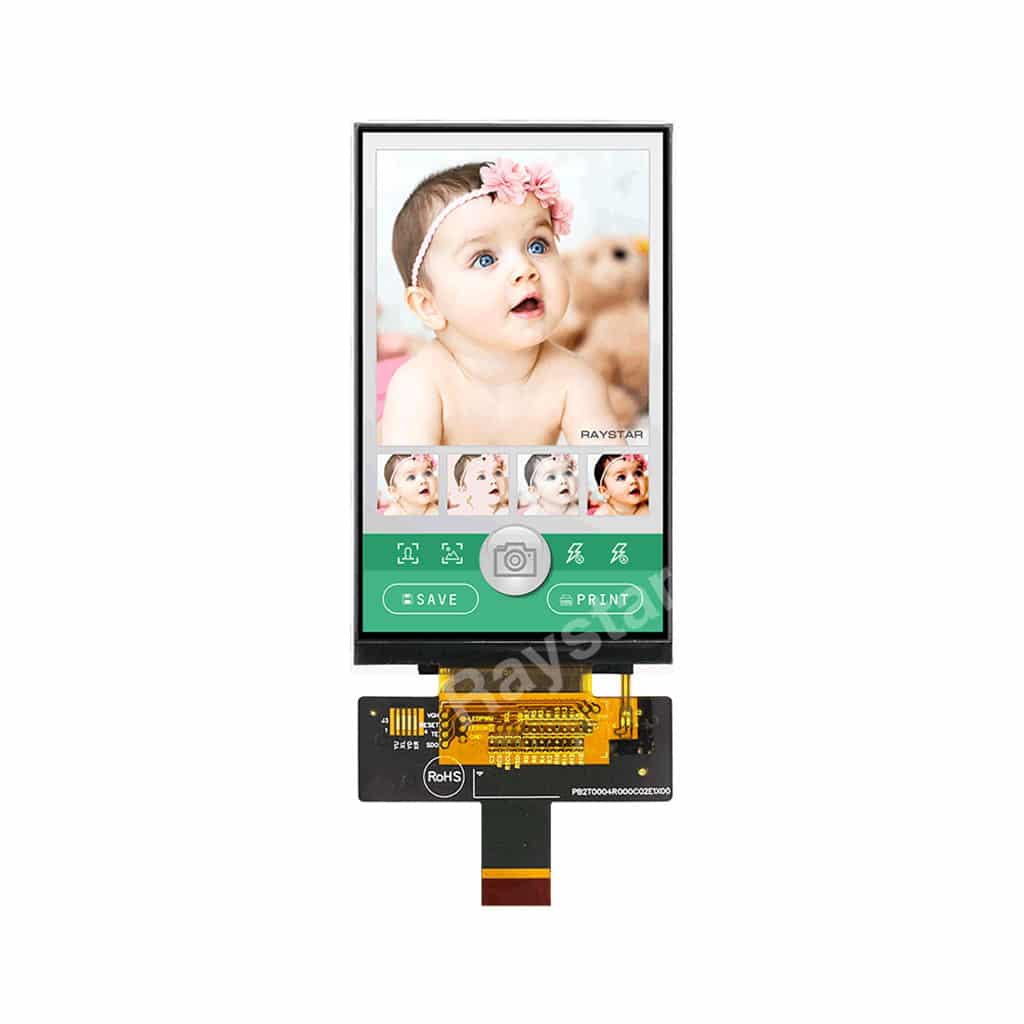

RFO400C-AYW-MNN 3.97″ TFT Display Module (480×800 pixels)

SKU: RFO400C-AYW-MNN Categories: , Manufacturers: ,

Product specs

Dimensions 57.14 × 96.85 mm
Display Size

3.97"

Pixels

480×800

Technology

IPS

Interface

MIPI, RGB, SPI

Product Description

Easby Electronics are able pleased to offer the RFO400C-AYW-MNN device from Raystar Optronics (we also have a similar device from Team Source Displays available). This square display offers 480×800 pixels within an active area of 51.84mm x 96.40mm, and is an IPS panel, which allows for excellent contrast and all round viewing angles. With an integrated ST7701S IC, this device has the increasingly popular MIPI interface. We also have a version using the ILI9806E IC, that allows for SPI or RGB interface

As standard, this device has a luminous intensity of 600nits, we can though discuss a custom option backlight or FFC to suit your requirements if you need something a little different from the standard.

Resistive and Capacitive Touchscreens are available upon request

As we have several different options for this type of product, please contact our sales office on +44 (0) 1748 850555 or send an email to displays@easby.com for further details to ensure we help select the device that is perfect for your application

  • 3.97″ TFT
  • Portrait Mode
  • 480×800 Pixels
  • Overall Dimensions: 57.14mm x 96.85mm
  • Viewable Area: 52.84mm x 87.40mm
  • Active Area: 51.84mm x 86.40mm
  • IPS Technology
  • ST7701S or ILI9806E IC
  • SPI, RGB or MIPI Interface
  • Luminous Intensity: 600nits
  • Operating Temperature: -20°C to +70°C
  • Resistive (RTP) or Capacitive (CTP) available
  • Custom backlight or FFC available
