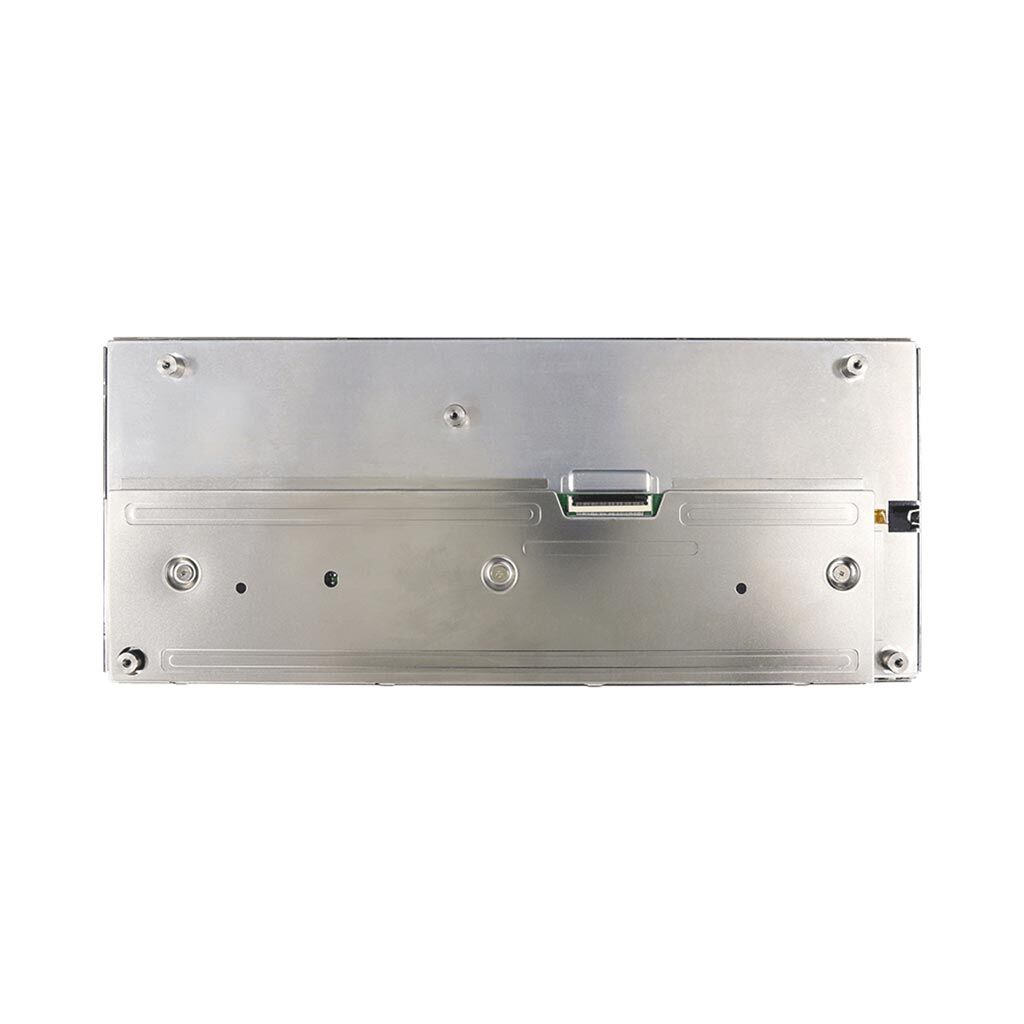

RFY1230B-AWH-LNN 12.3" TFT Display Module (1920x720 pixels)

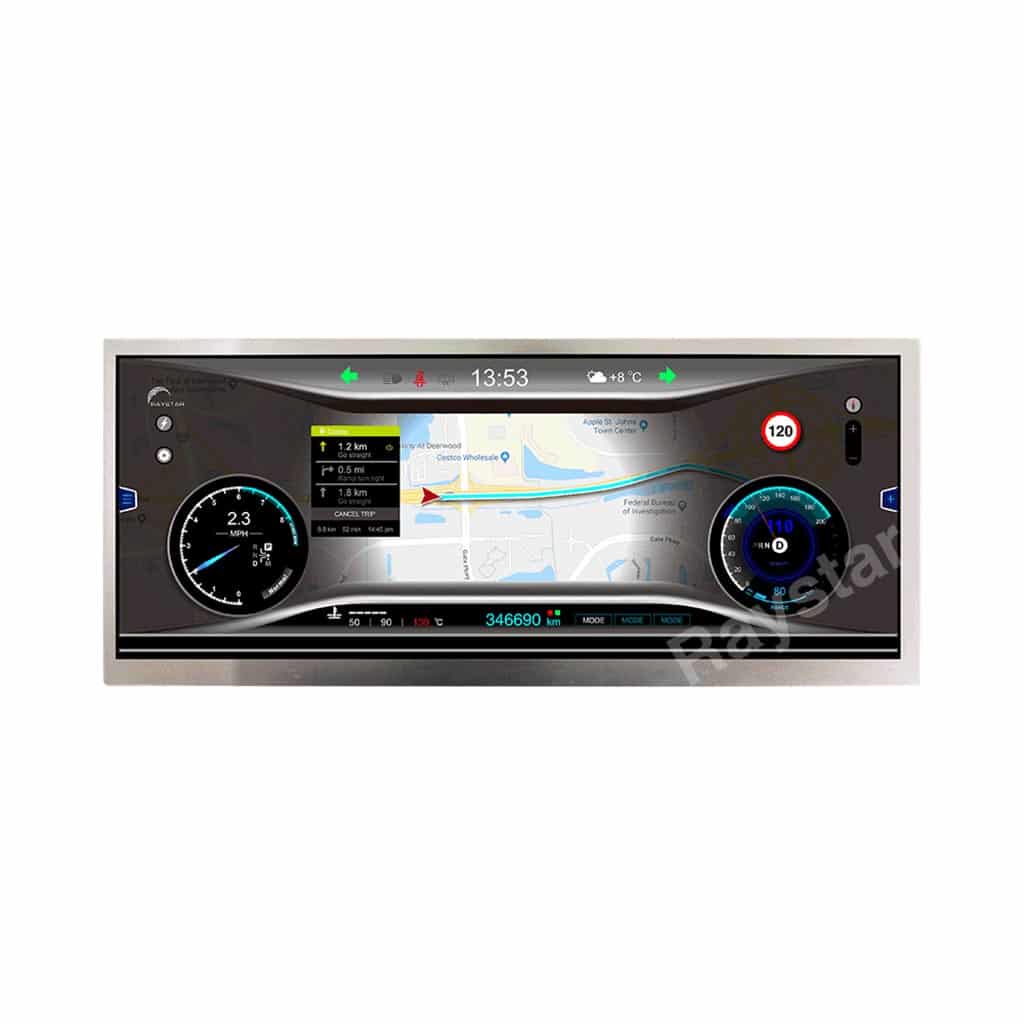

RFY1230B-AWH-LNN 12.3" TFT Display Module (1920x720 pixels) - Image 2

RFY1230B-AWH-LNN 12.3″ TFT Display Module (1920×720 pixels)

SKU: RFY1230B-AWH-LNN Categories: , Manufacturer:
Download PDF

Product specs

Dimensions 308.1 × 130.0 mm
Display Size

12.3"
Pixels

1920×720
Technology

IPS
Interface

LVDS

Product Description

The RFY1230B-AWH-LNN screen from Raystar is a landscape 1920×720 pixel display offering superb contrast and excellent all-round viewing angles. This device also has an extended operating temperature of -30°C to +85°C an dso is perfect for automotive applications

Resistive and Capacitive Touchscreens are available upon request

Please contact our sales office on +44 (0) 1748 850555 or send an email to displays@easby.com for further details to ensure we help select the device that is perfect for your application

  • 12.3″ TFT
  • Full Colour IPS
  • Overall Dimensions: 308.1mm x 130.0mm x 7.6mm
  • Active Area: 292.032mm x 109.512mm
  •  2-Channel LVDS Interface
  • Operating Temperature: -30°C to +85°C
  • Resistive (RTP) or Capacitive (CTP) available
  • Surface: Anti-Glare
  • Custom backlight or FFC available
