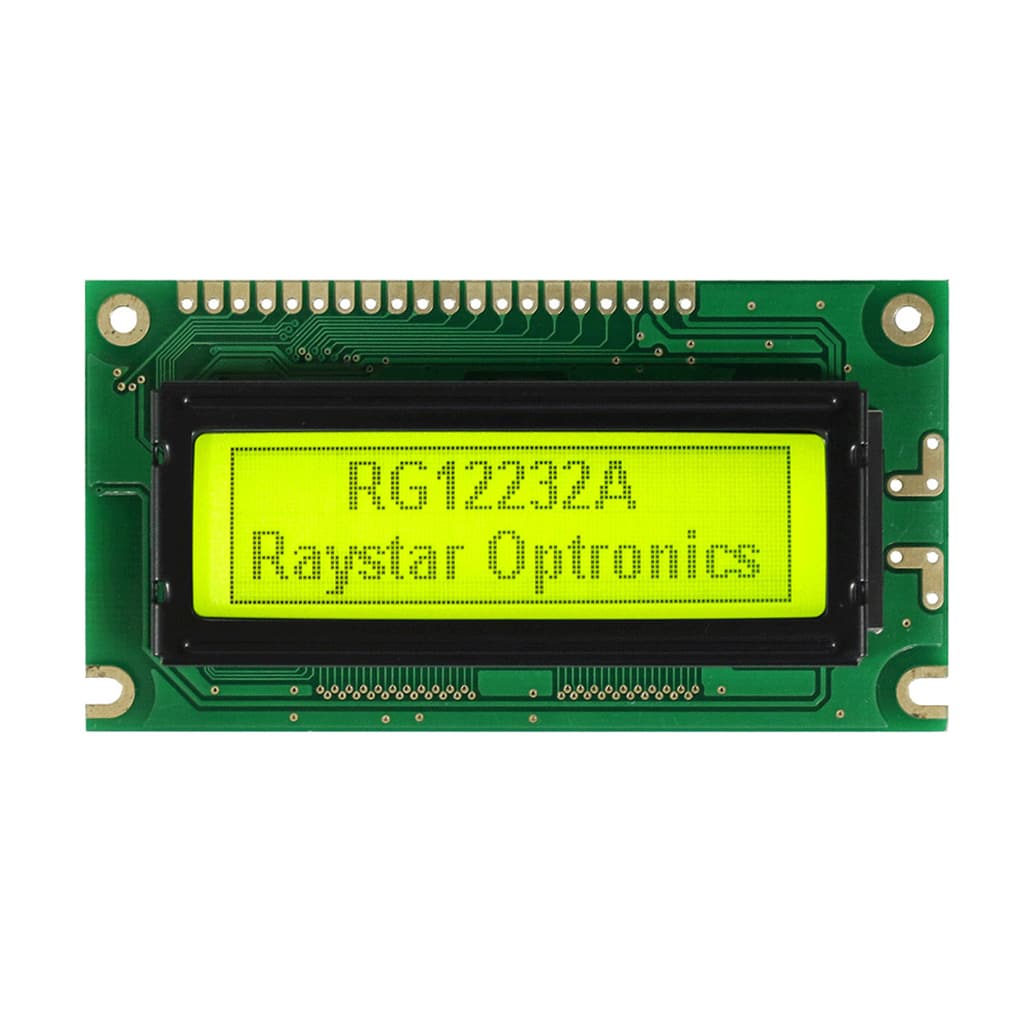

RG12232A series 122×32 Graphic LCD (84.0mm x 44.0mm)

SKU: RG12232A Categories: , , Manufacturer:

Product specs

Dimensions 84 × 44 mm
Pixels

122×32

Interface

6800

Technology

Blue-STN, FSTN, STN

Construction

COB

Product Description

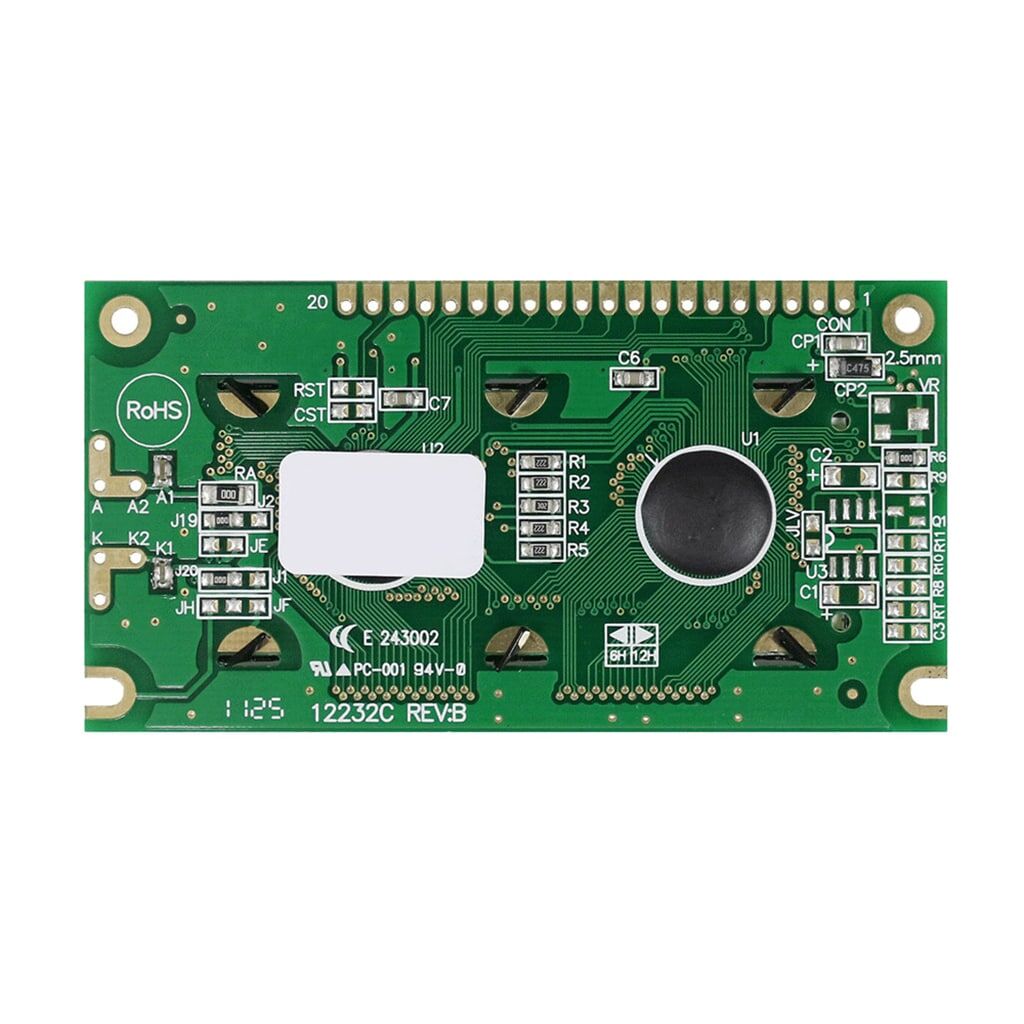

The RG12232A series is a Chip-On-Board LCD offering 122×32 pixels, with an active area of 53.64mm x 15.64mm within a viewable area of 60.0mm x 18.0mm

RG12232A comes with the SBN1661G IC, and has internal oscillation (2KHz)

RG12232A1 comes with the SBN1661G IC, and has external oscillation (2Khz)

RG12232A2 comes with the ST7920 IC, and is ideal for generating Chinese characters/symbols

The entire series is available in either STN, Blue STN or FSTN, and in either negative or positive mode



  • 122×32 Chip-On-Board Liquid Crystal Display
  • Dimensions: 84.0mm x 44.0mm
  • Viewing Area: 60.0mm x 18.0mm
  • Available in either STN, Blue-STN or FSTN Technology
  • Available in Reflective, Transflective or Transmissive Mode, with a white LED backlight if required
  • Standard Operating Temperature of -20°C to +70°C
