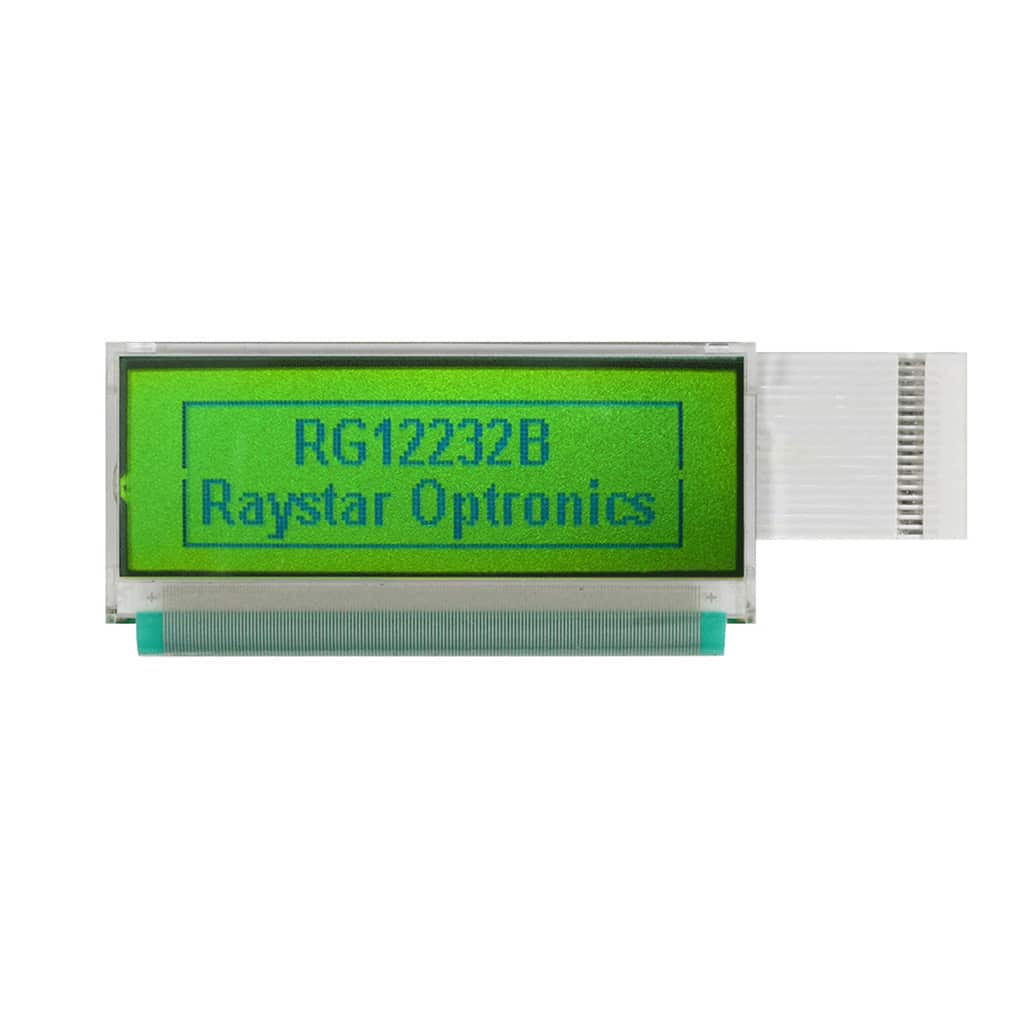

RG12232B series 122×32 Graphic LCD (65.4mm x 28.2mm)
Product specs
| Dimensions | 65.4 × 28.2 mm |
|---|---|
| Pixels | 122×32 |
| Interface | 6800 |
| Technology | Blue-STN, FSTN, STN |
| Construction | COB |
Product Description
The RG12232B series is a Chip-On-Board LCD offering 122×32 pixels, with an active area of 48.76mm x 15.32mm within a viewable area of 54.8mm x 19.0mm
A choice of SBN1661G or ST7920 (ideal for Chinese characters/symbols) is available
The entire series is available in either STN or FSTN, and in either negative or positive mode
- 122×32 Chip-On-Board Liquid Crystal Display
- Dimensions: 65.4mm x 28.2mm
- Viewing Area: 54.8mm x 19.0mm
- Available in either STN or FSTN Technology
- Available in Reflective, Transflective or Transmissive Mode, with a white LED backlight if required
- Standard Operating Temperature of -20°C to +70°C
