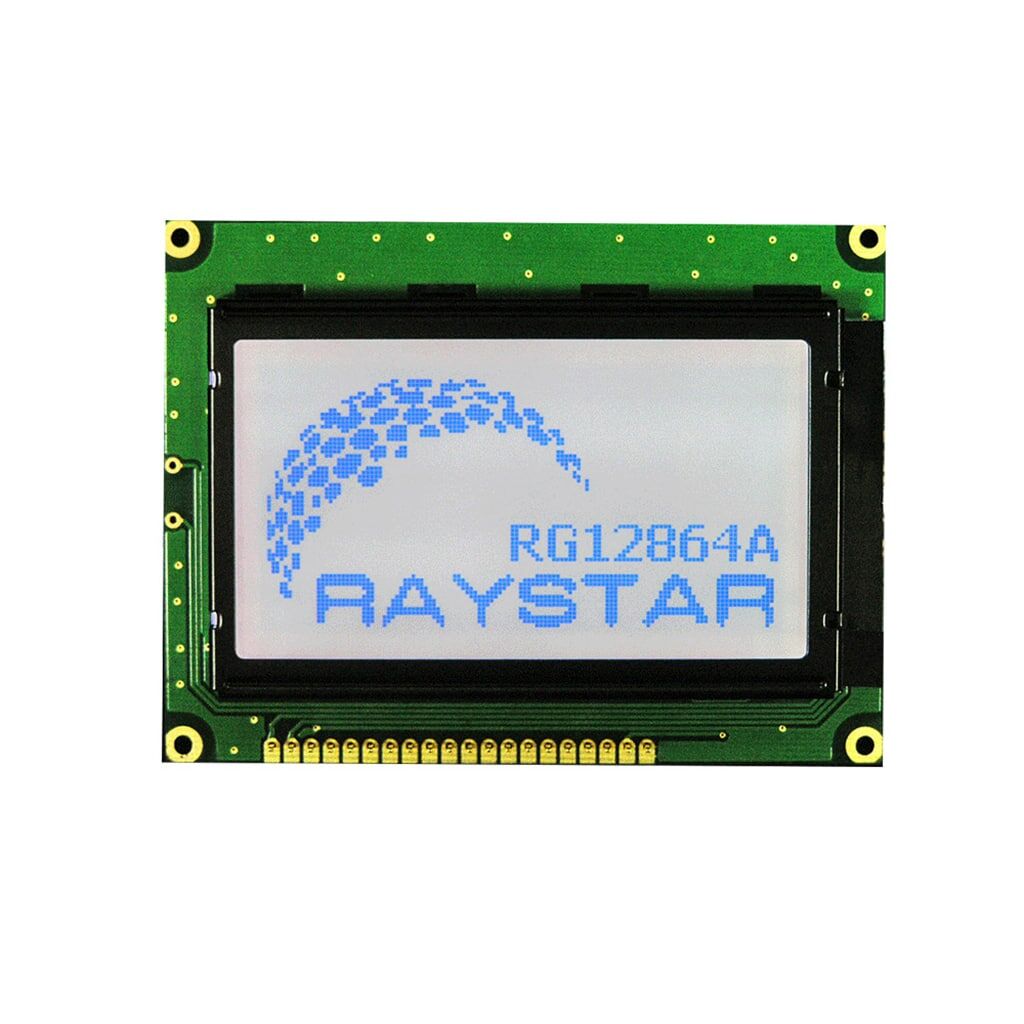

RG12864A series 128×64 LCD 93.0mm x 70.0mm

SKU: RG12864A Categories: , , Manufacturer:

Product specs

Dimensions 93 × 70 mm






Product Description

The RG12864A series is a standard Chip-On-Board LCD,  offering 128×64 pixels within a 72.0mm x 40.0mm viewable area, with a built in controller (NT7107, NT7108 or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available

Also available are the following options:

RG12864A1: Negative voltage optional for 3.3V
RG12864A4: Double-row interface





  • 128×64 Graphic LCD
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 93.0mm x 70.0mm
  • Viewing Area: 72.0mm x 40.0mm
  • Active Area: 66.52mm x 33.24mm
  • Dot Size: 0.48mm x 0.48mm
  • Dot Pitch: 0.52mm x 0.52mm
  • 6800 Interface
  • Power Supply: 5V
  • On-Board Controller: NT7107/NT7108 (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
