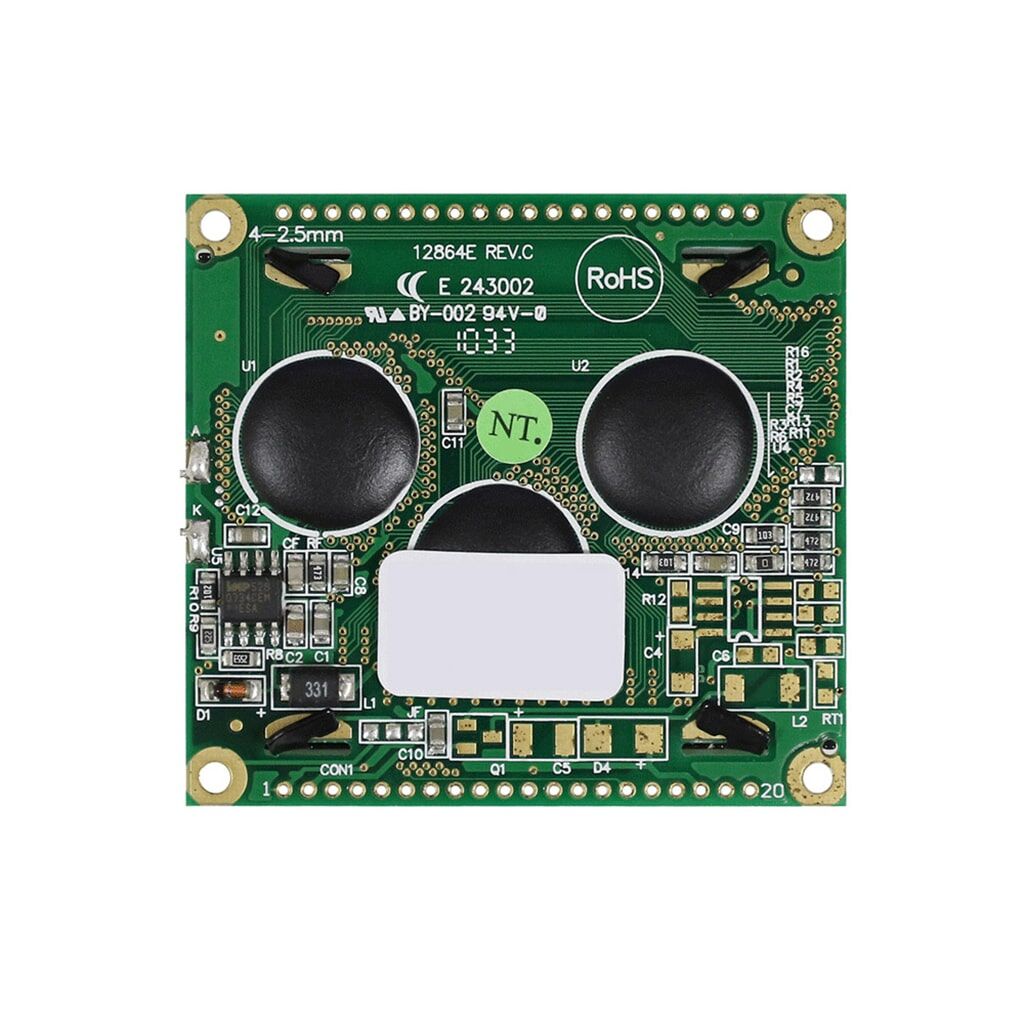

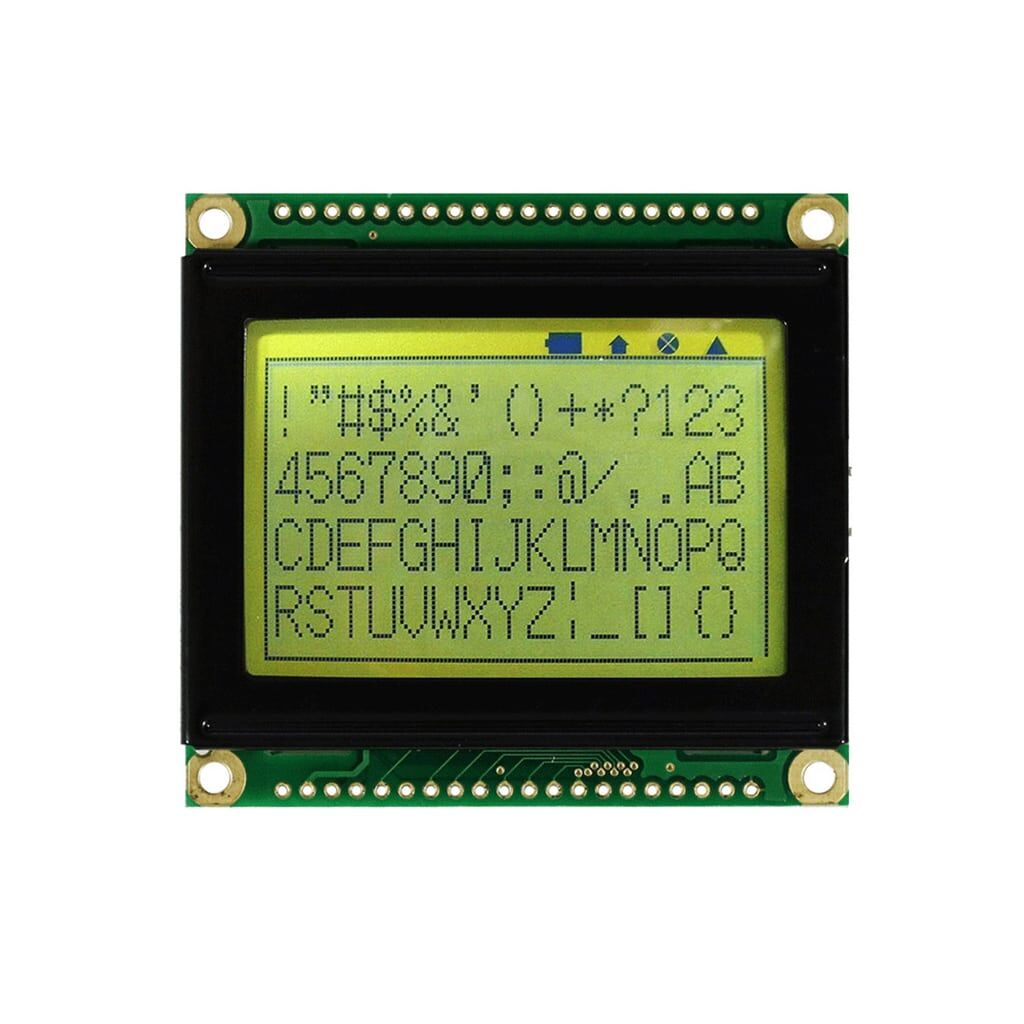

RG12864H series 128x64 LCD 54.0mm x 50.0mm
RG12864H series 128x64 LCD 54.0mm x 50.0mm - Image 2

RG12864H series 128×64 LCD 54.0mm x 50.0mm

SKU: RG12864H Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 54.0 × 50.0 mm
Pixels

128×64
Interface

6800
Construction

COB

Product Description

The RG12864H series is a standard Chip-On-Board LCD,  offering 128×64 pixels within a 43.5mm x 29.0mm viewable area, with a built in controller NT7107/NT7108 (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available

This device also has negative voltage “built in”









  • 128×64 Graphic LCD
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 54.0mm x 50.0mm
  • Viewing Area: 43.5mm x 29.0mm
  • Active Area: 40.92mm x 26.92mm
  • Dot Size: 0.28mm x 0.35mm
  • Dot Pitch: 0.32mm x 0.39mm
  • 6800 Interface
  • Power Supply: 5V
  • On-Board Controller: NT7107/NT7108 (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
