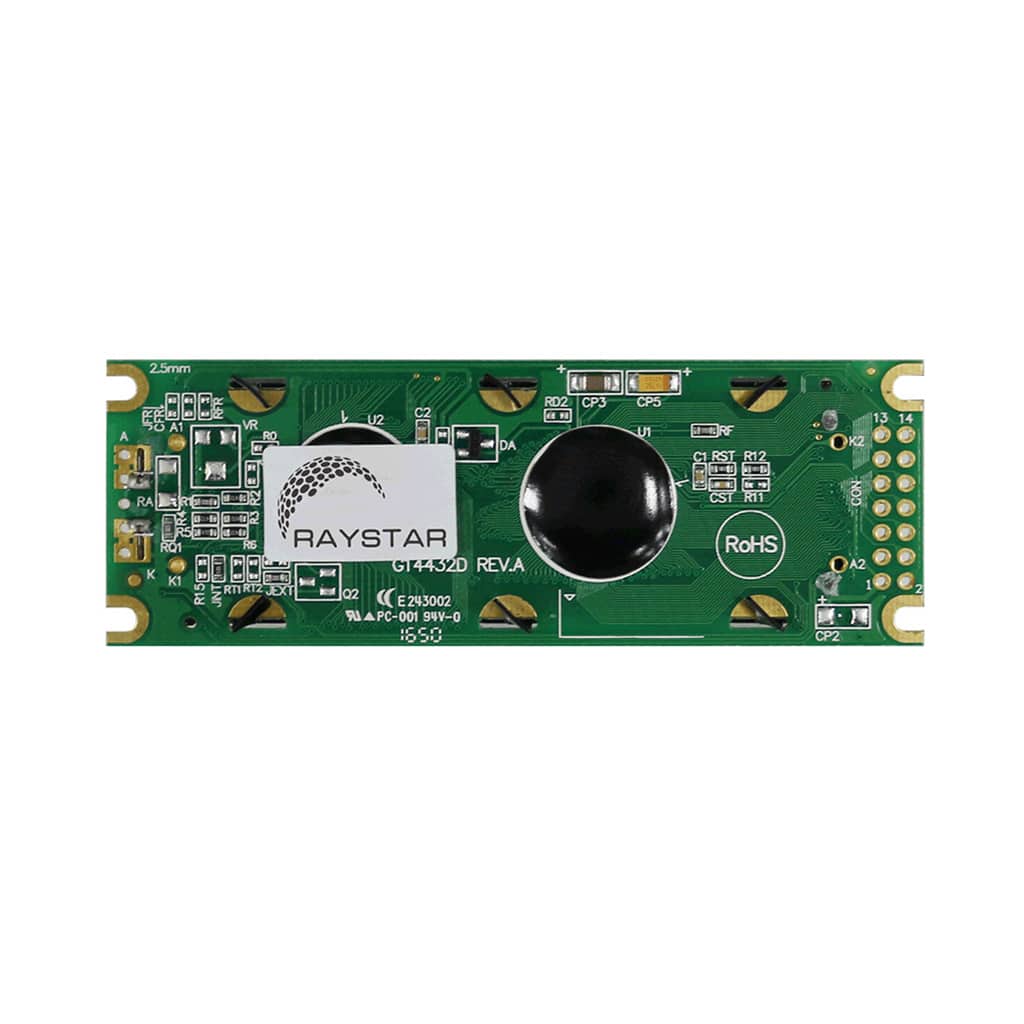

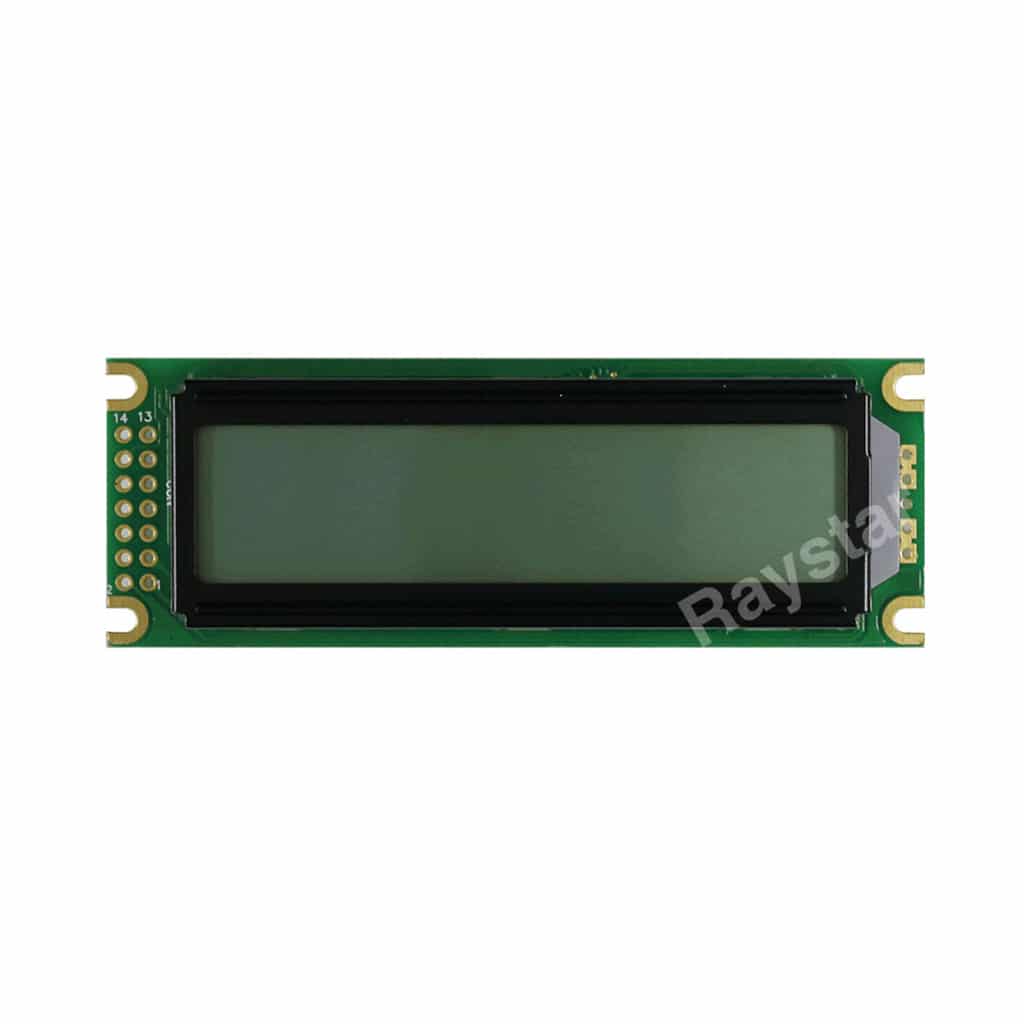

RG14432D series 144x32 LCD 85.5mm x 30.0mm
RG14432D series 144x32 LCD 85.5mm x 30.0mm - Image 2

RG14432D series 144×32 LCD 85.5mm x 30.0mm

SKU: RG14432D Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 85.5 × 30 mm
Pixels

144×32
Interface

6800, SPI
Construction

COB

Product Description

The RG14432D series is a standard Chip-On-Board LCD,  offering 144×32 pixels within a 66.0mm x 16.0mm viewable area, with a built in ST7920 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.

This Graphics module has the same footprint as the 16×2 RC1602D series.











  • 144×32 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 85.5mm x 30.0mm
  • Viewing Area: 66.0mm x 16.0mm
  • Active Area: 60.44mm x 13.44mm
  • Dot Size: 0.38mm x 0.38mm
  • Dot Pitch: 0.42mm x 0.32mm
  • 6800 & SPI Interface
  • Power Supply: 5V (internal boost option)
  • On-Board Controller: ST7029 (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
