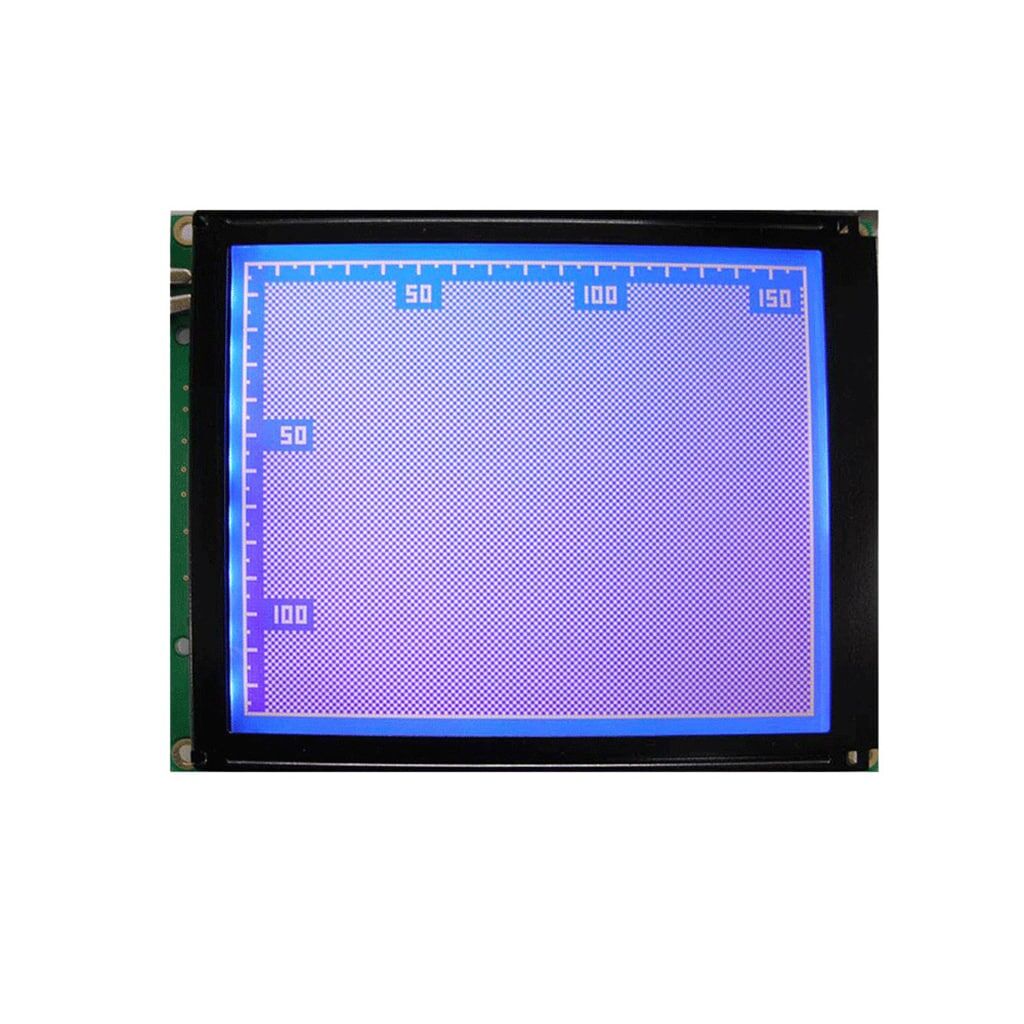

RG160128A1 series 160×128 LCD 129.0mm x 102.0mm

SKU: RG160128A1 Categories: , , Manufacturer:

Product specs

Dimensions 129.0 × 102.0 mm
Pixels

160×128

Interface

8080

Construction

COB

Product Description

The RG160128A1 series is a standard Chip-On-Board LCD,  offering 160×128 pixels within a 101.0mm x 82.0mm viewable area, with a built in RA6963 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.













  • 160×128 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 129.0mm x 102.0mm
  • Viewing Area: 101.0mm x 82.0mm
  • Active Area: 95.96mm x 76.76mm
  • Dot Size: 0.56mm x 0.56mm
  • Dot Pitch: 0.60mm x 0.60mm
  • 8080 Interface
  • Power Supply: 5V (optional negative voltage)
  • On-Board Controller: RA6963 (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
