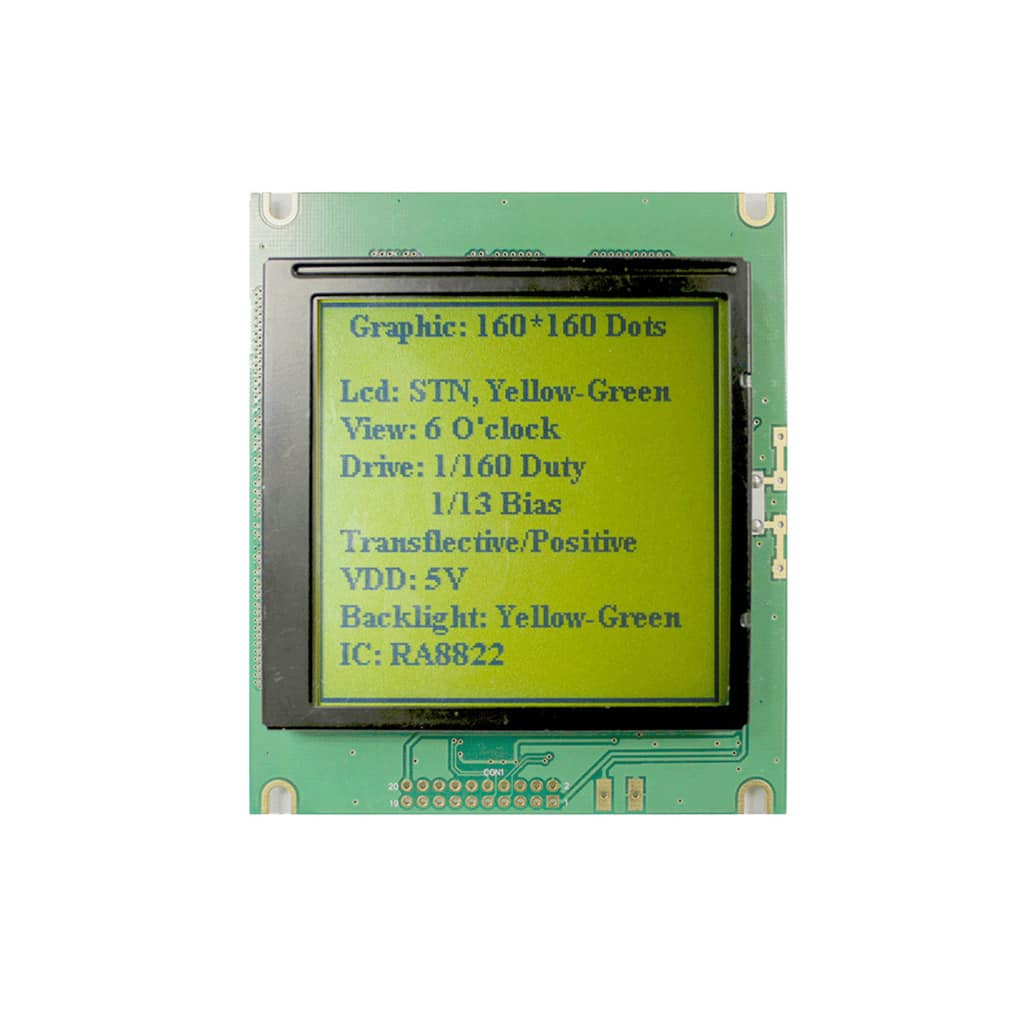

RG160160D series 160x160 LCD 85.0mm x 100.0mm

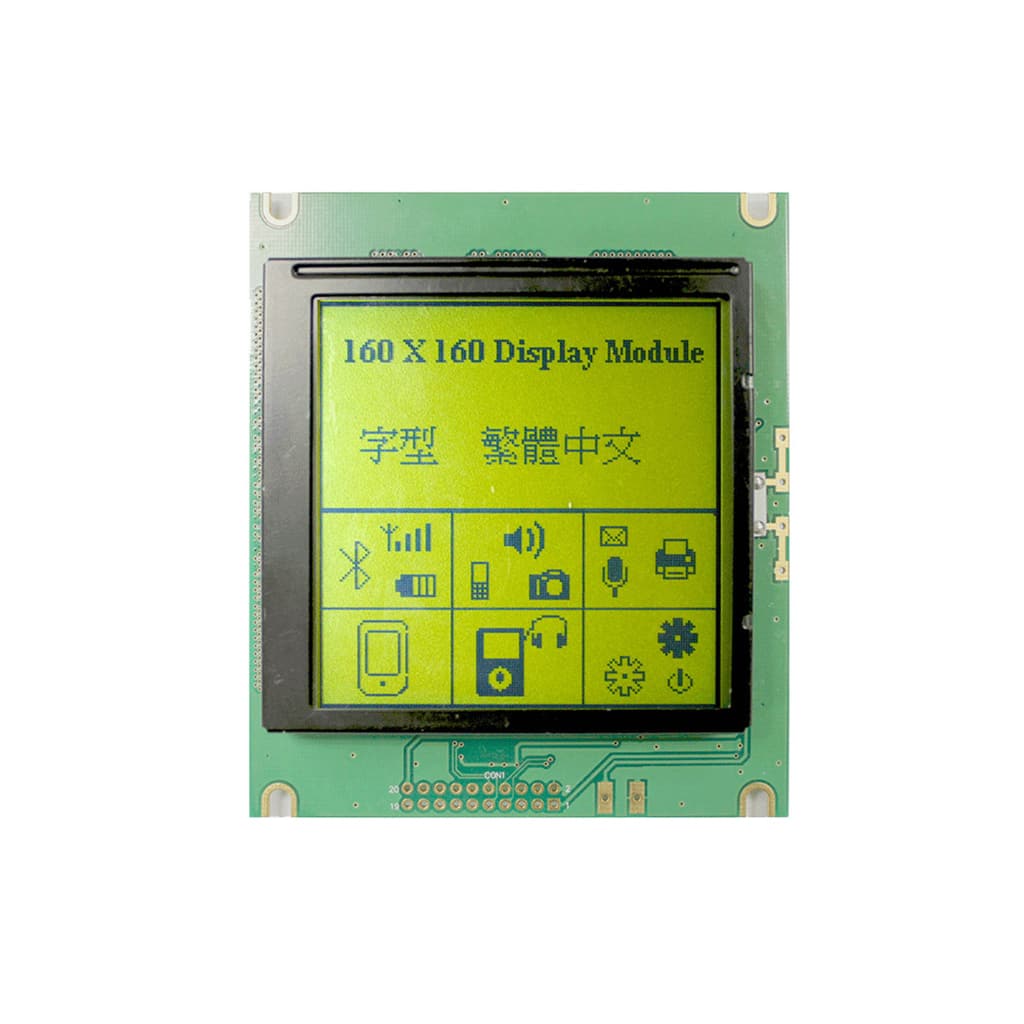

RG160160D series 160x160 LCD 85.0mm x 100.0mm - Image 2

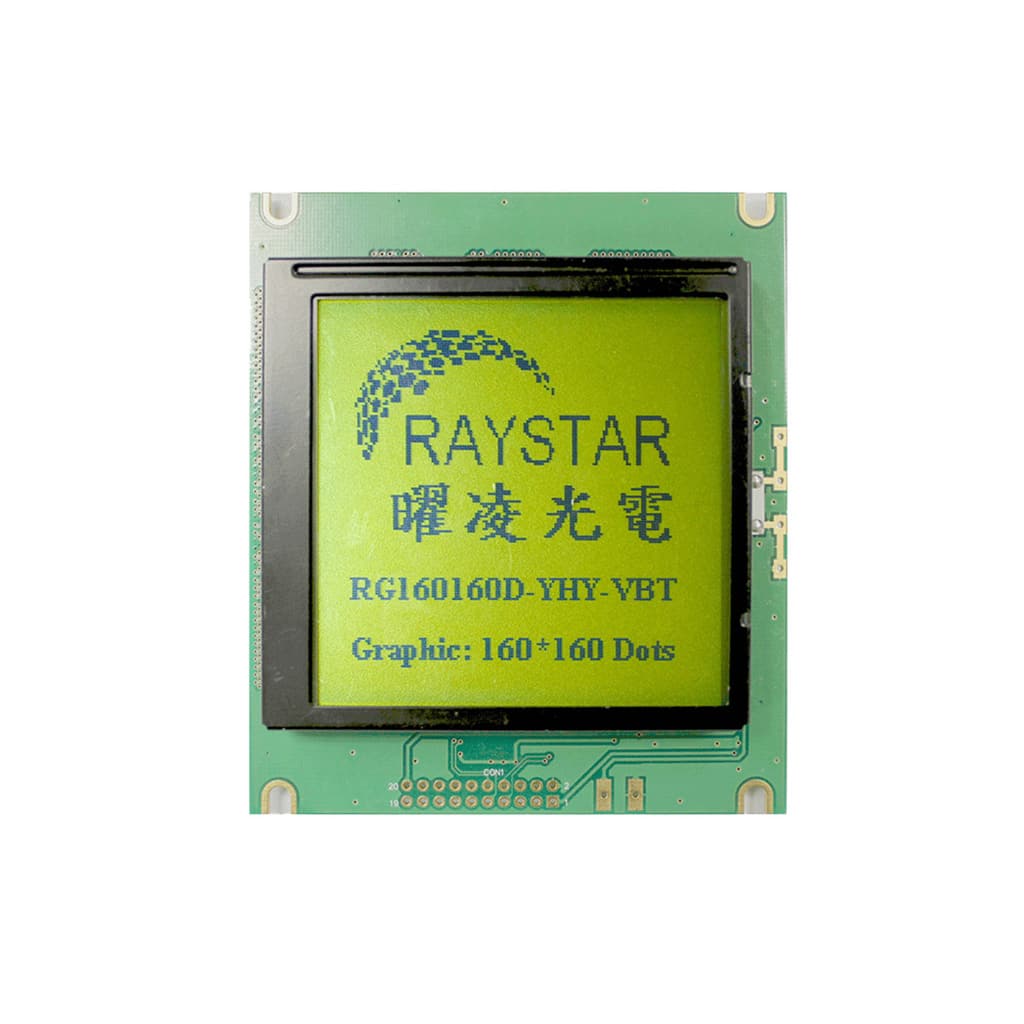

RG160160D series 160x160 LCD 85.0mm x 100.0mm - Image 3

RG160160D series 160×160 LCD 85.0mm x 100.0mm

SKU: RG160160D Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 85.0 × 100.0 mm
Pixels

160×160
Interface

6800, 8080
Construction

COB

Product Description

The RG160160D series is a standard Chip-On-Board LCD,  offering 160×160 pixels within a 62.0mm x 62.0mm viewable area, with a built in RA8822 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.













  • 160×160 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 85.0mm x 100.0mm
  • Viewing Area: 62.0mm x 62.0mm
  • Active Area: 60.78mm x 60.78mm
  • Dot Size: 0.36mm x 0.36mm
  • Dot Pitch: 0.38mm x 0.38mm
  • 6800 & 8080 Interface
  • Power Supply: 5V
  • On-Board Controller: RA8822 (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
