RG16032E series 160×32 LCD 122.0mm x 44.0mm
Product specs
| Dimensions | 122.0 × 44.0 mm |
|---|---|
| Pixels | 160×32 |
| Interface | 6800, SPI |
| Construction | COB |
Product Description

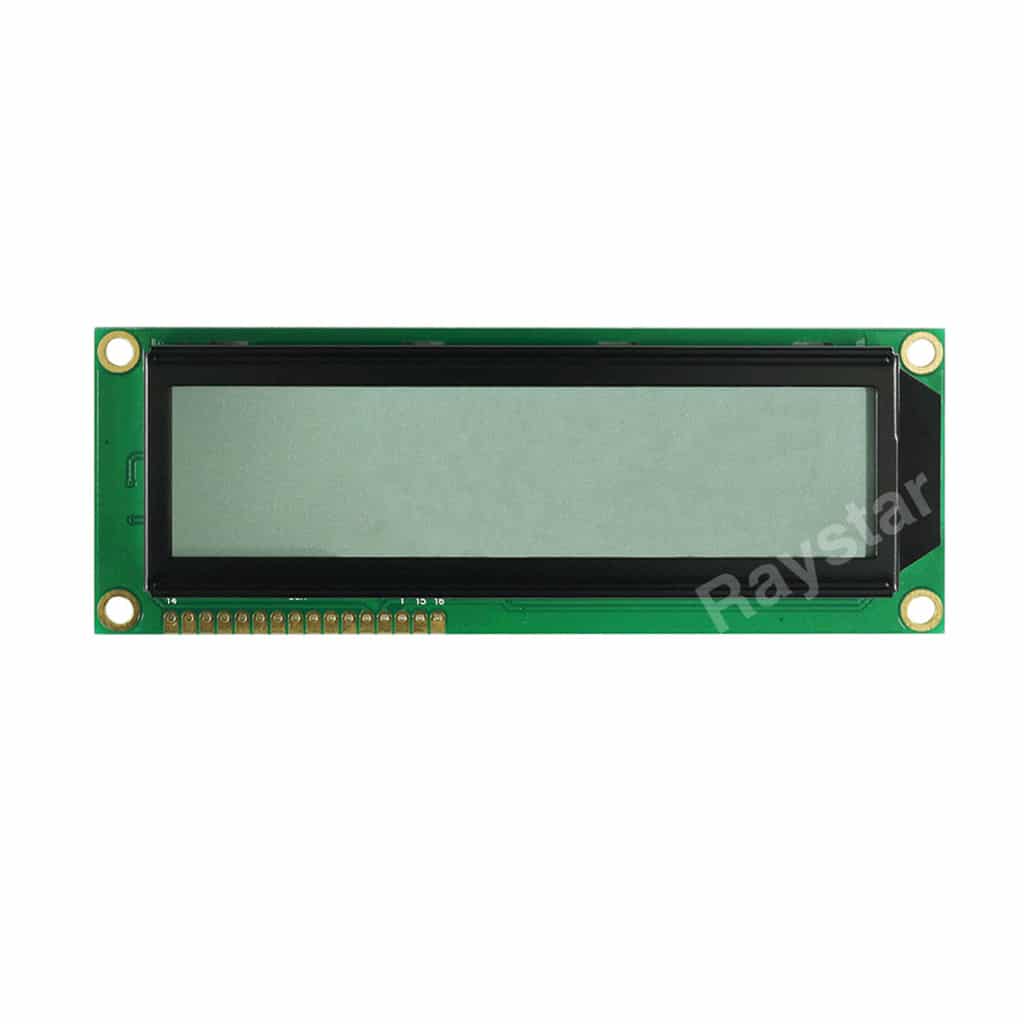

The RG16032E series is a standard Chip-On-Board LCD, offering 160×32 pixels within a 99.0mm x 24.0mm viewable area, with a built in ST7920 controller (or equivalent)

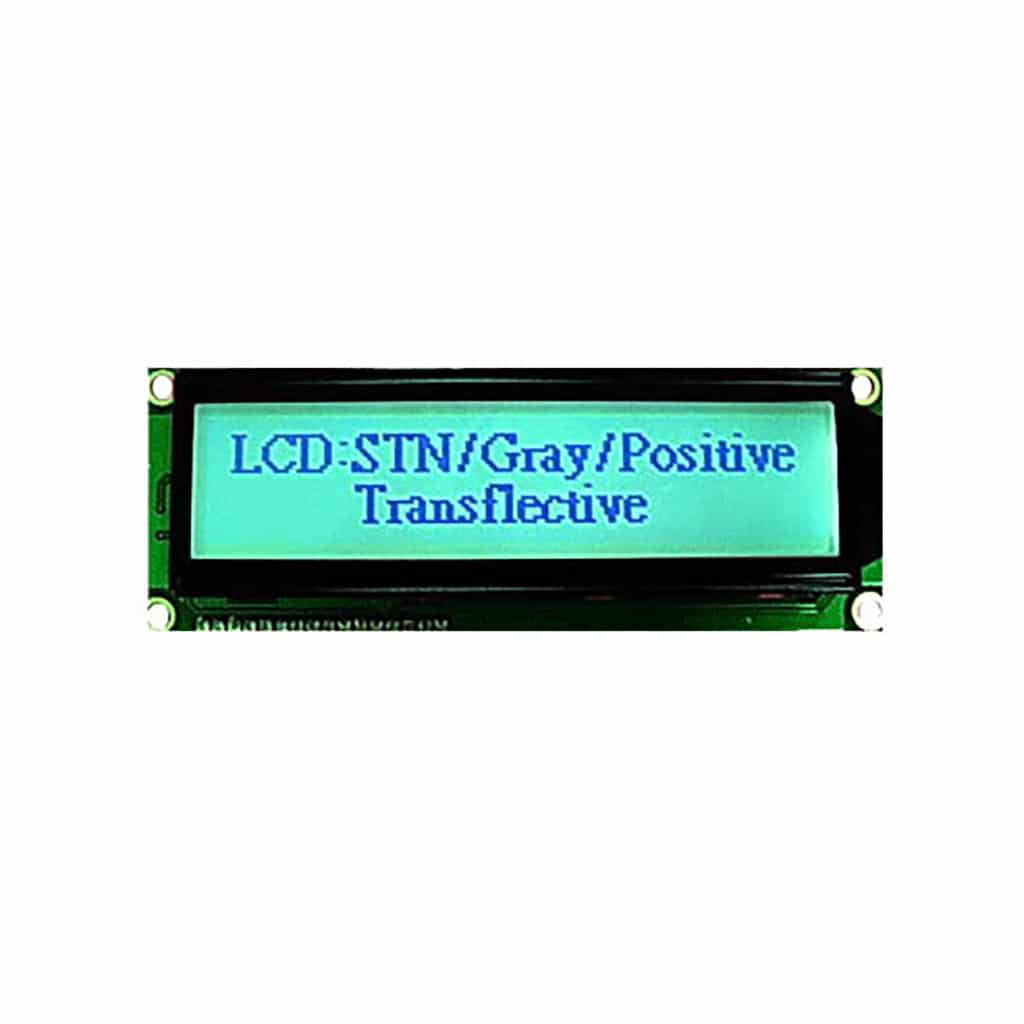

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.
- 160×32 Graphic LCD

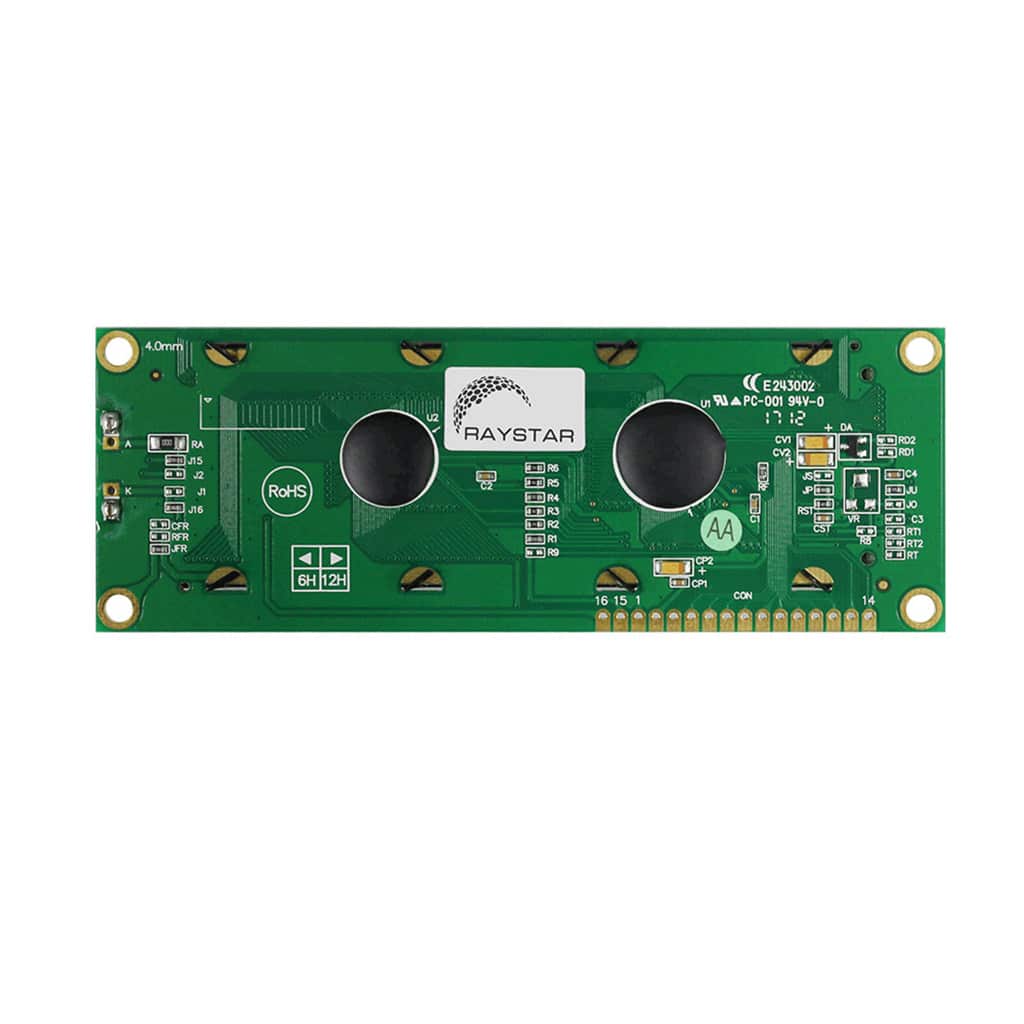

- Chip-On-Board
- Available in STN, FSTN or Blue-STN
- Positive or Negative Mode
- Reflective, Transflective or Transmissive polarisers available
- Dimensions: 122.0mm x 44.0mm
- Viewing Area: 99.0mm x 24.0mm
- Active Area: 95.95mm x 19.15mm
- Dot Size: 0.55mm x 0.55mm
- Dot Pitch: 0.60mm x 0.60mm
- 6800 & SPI Interface
- On-Board Controller: ST7920 (or equivalent)
- Standard Operating Temperature of -20°C to +70°C
