RG19264A1 series 192×64 LCD 130.0mm x 65.0mm

SKU: RG19264A1 Categories: , , Manufacturer:

Product specs

Dimensions 130.0 × 65.0 mm






Product Description

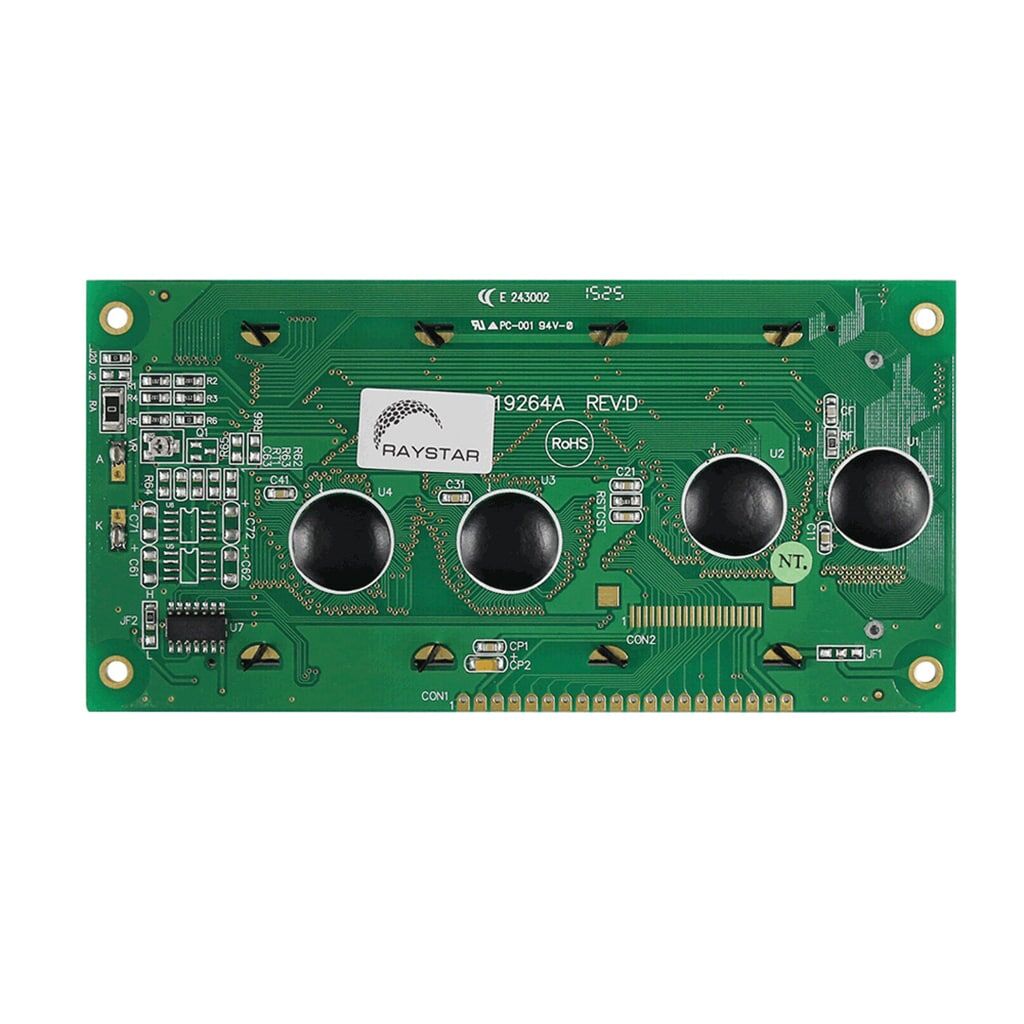

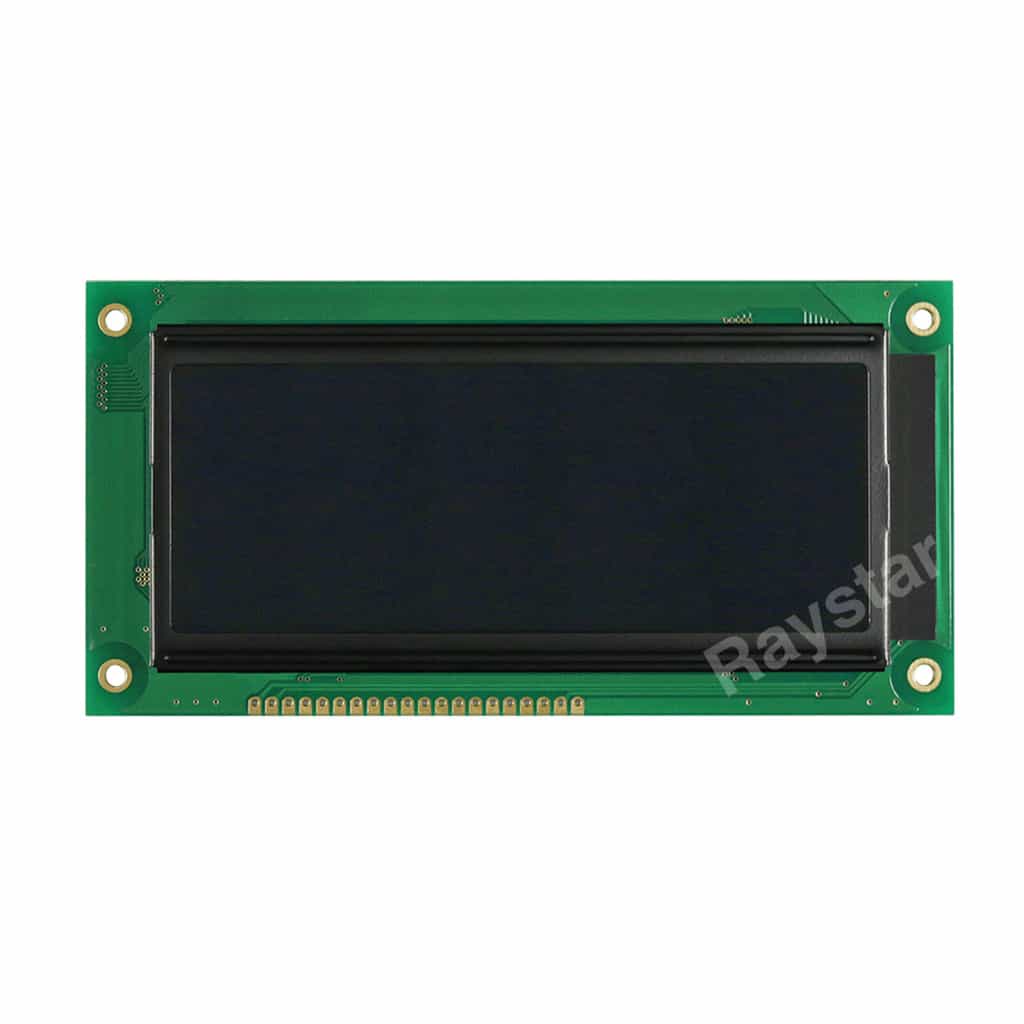

The RG19264A series is a standard Chip-On-Board LCD,  offering 192×64 pixels within a 102.0mm x 39.0mm viewable area, with a built in NT7107/NT7108 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.








  • 192×64 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 130.0mm x 65.0mm
  • Viewing Area: 102.0mm x 39.0mm
  • Active Area: 96.0mm x 32.0mm
  • Dot Size: 0.46mm x 0.46mm
  • Dot Pitch: 0.50mm x 0.50mm
  • 6800 Interface
  • On-Board Controller: NT7107/NT7108 (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
