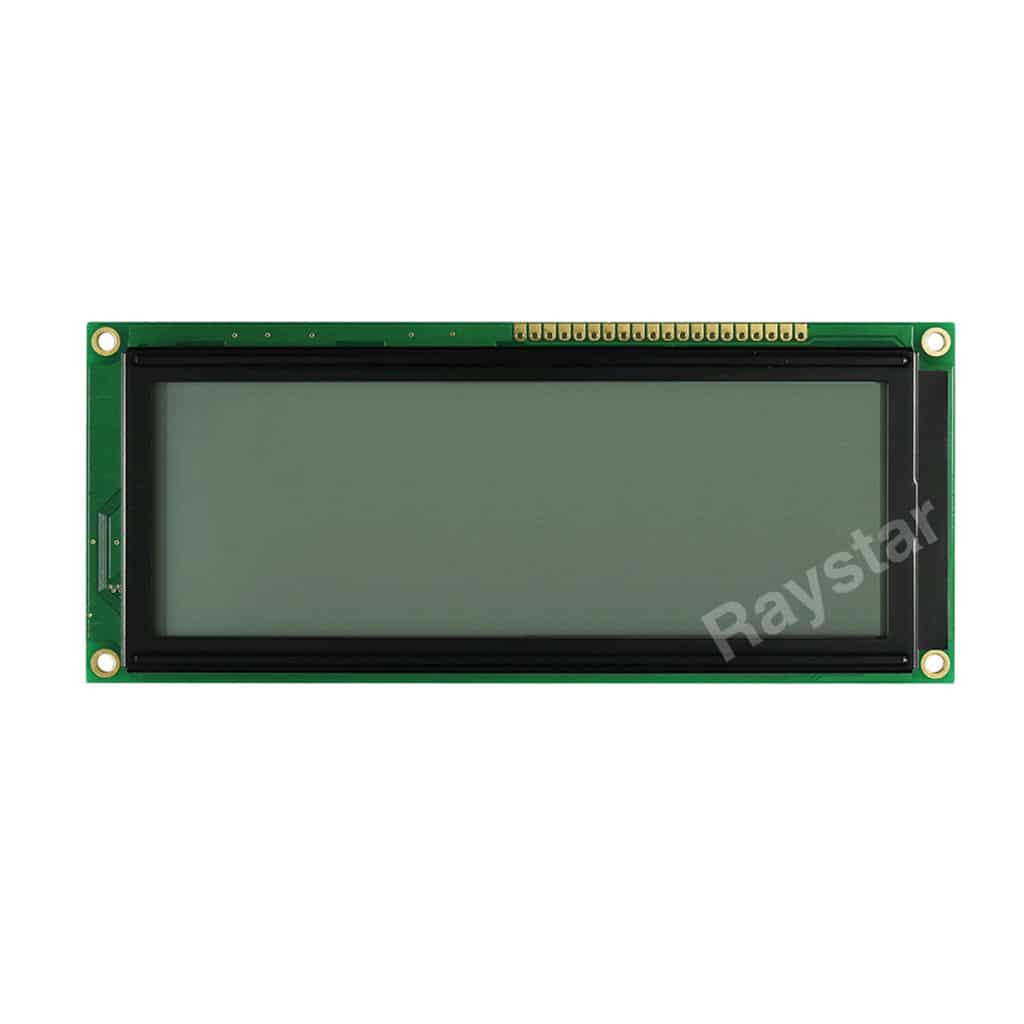

RG19264B series 192x64 LCD 150.0mm x 62.5mm
RG19264B series 192x64 LCD 150.0mm x 62.5mm - Image 2

RG19264B series 192×64 LCD 150.0mm x 62.5mm

SKU: RG19264B Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 150.0 × 62.5 mm
Pixels

192×64
Interface

6800
Construction

COB

Product Description

The RG19264A series is a standard Chip-On-Board LCD,  offering 192×64 pixels within a 102.0mm x 39.0mm viewable area, with a built in NT7107/NT7108 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.















  • 192×64 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 150.0mm x 62.5mm
  • Viewing Area: 123.5mm x 43.0mm
  • Active Area: 120.92mm x 40.28mm
  • Dot Size: 0.59mm x 0.59mm
  • Dot Pitch: 0.63mm x 0.63mm
  • 6800 Interface
  • On-Board Controller: NT7107/NT7108 (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
