RG240128A series 240x128 LCD 170.0mm x 93.4mm

RG240128A series 240×128 LCD 170.0mm x 93.4mm

SKU: RG240128A Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 170 × 93.4 mm
Pixels

240×128
Interface

6800, 8080, SPI
Construction

COB

Product Description

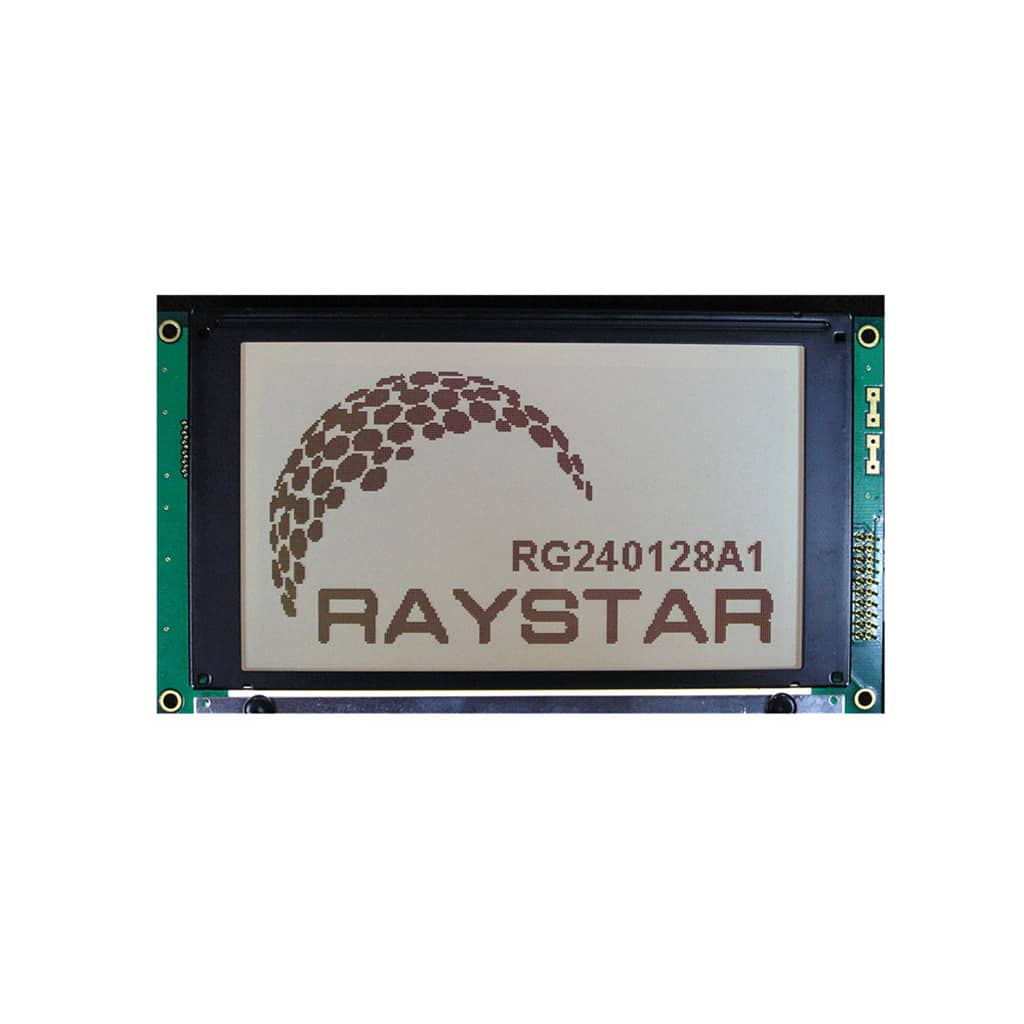

The RG240128A series is a standard Chip-On-Board LCD,  offering 240×128 pixels within a 128.0mm x 74.0mm viewable area, with a built in RA6963 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.

This device is available with a built in negative voltage generator if required















  • 240×128 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 170.0mm x 93.4mm
  • Viewing Area: 128.0mm x 74.0mm
  • Active Area: 119.97mm x 63.97mm
  • Dot Size: 0.47mm x 0.47mm
  • Dot Pitch: 0.50mm x 0.50mm
  • 6800, 8080 & SPI Interface
  • On-Board Controller: RA6963 (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
