RT1 Bistable Single Pole 12a & 16a Power Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 3Vdc, 5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc, 36Vdc |
| Contact Arrangement | SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C |
| Coil Type | 1 Coil Latching, 2 Coil Latching |
| Contact Rating (Amps) | 12A, 16A |
| Sealing | Flux Proof, Fully Sealed |
| Contact Material | AgNi 90/10, AgNi 90/10+Au Plated |
| Coil Resistance (Ohm) | 135Ω, 15Ω, 1994Ω, 21Ω, 240Ω, 42Ω, 886Ω, 55Ω, 62Ω, 90Ω, 360Ω, 1440Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description
Easby Electronics offer the RT1 bistable (latching) in 1 & 2 coil variants.
2 pole variants are available under the RT2 bistable

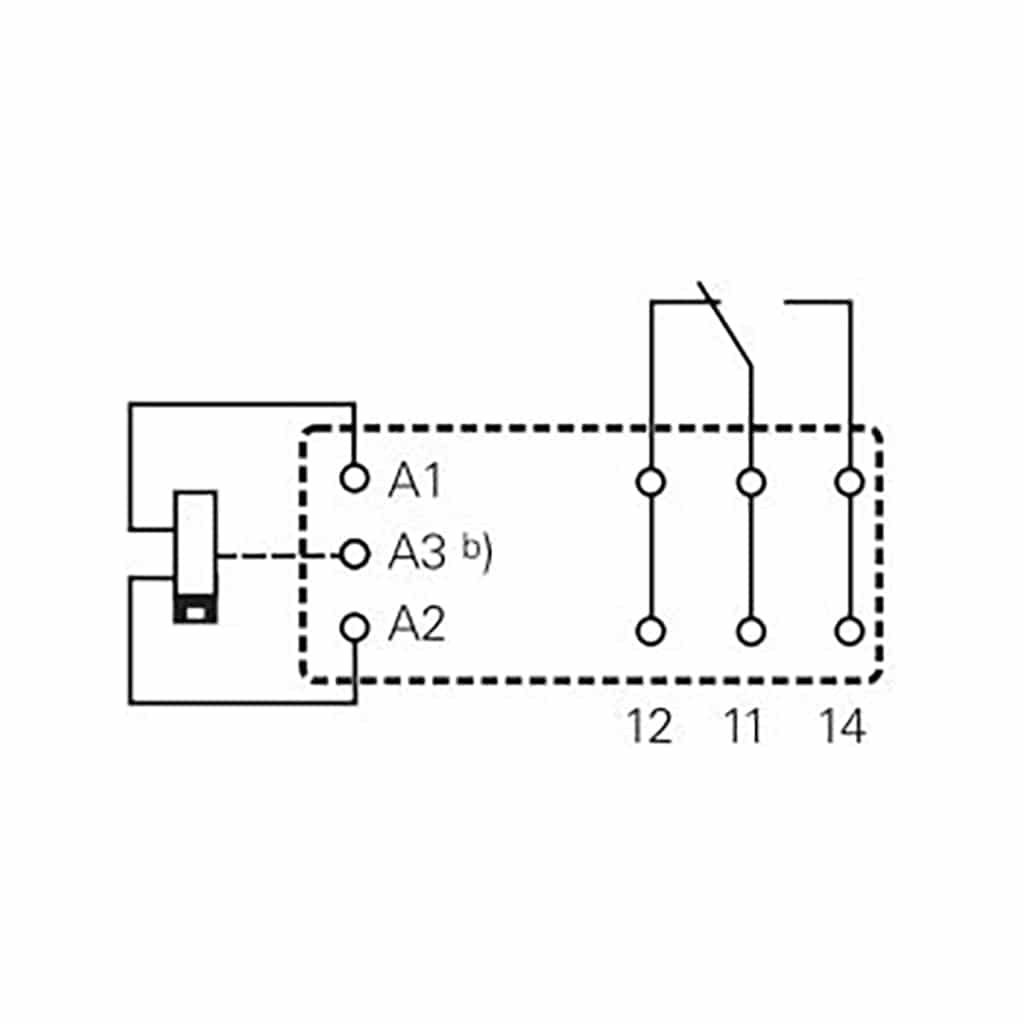

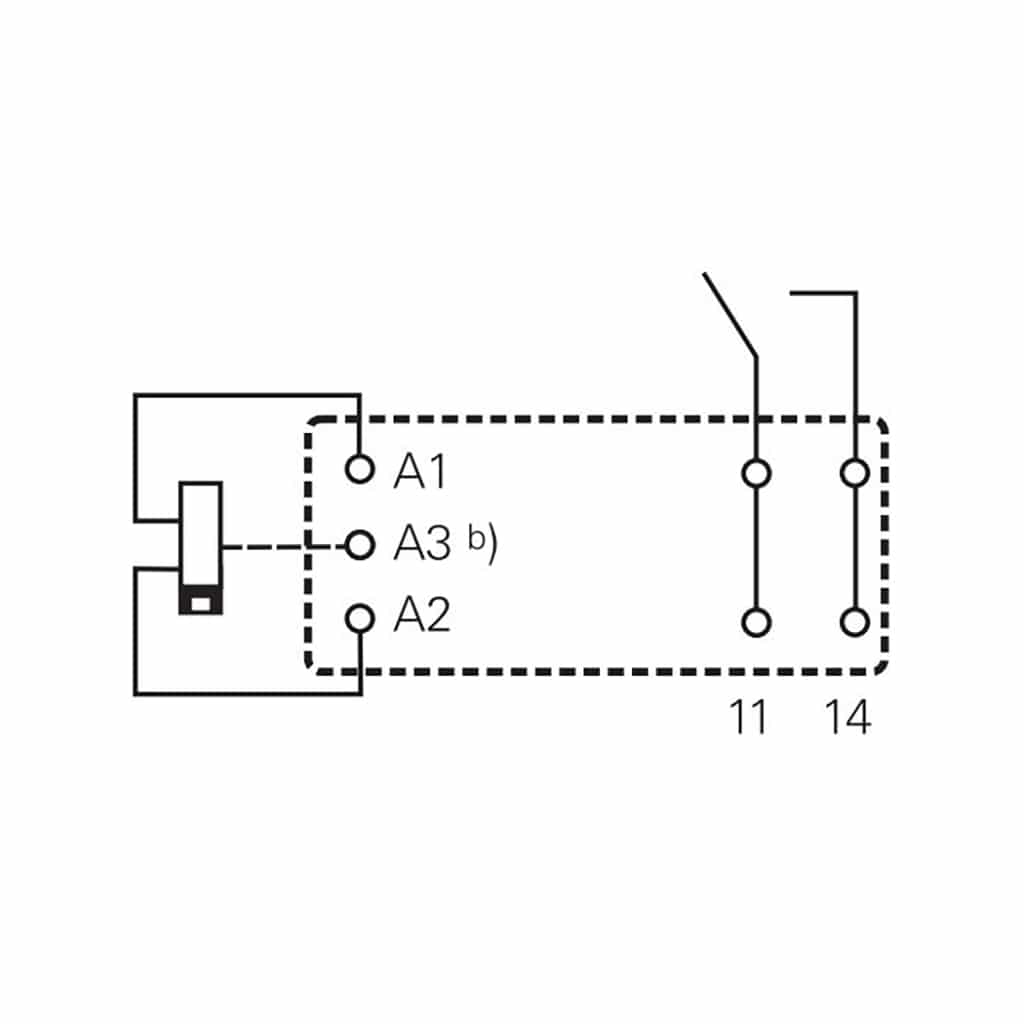

- 1 pole 16A, 1 form C (CO) or 1 form A (NO) contact
- Polarized bistable version with 1 or 2 coils
- 5kV/10mm coil-contact
- Reinforced insulation
- WG version: product in accordance to IEC 60335-1
