RX128128A (Circular) Graphic LCD

This product is currently out of stock and unavailable.

SKU: RX128128A Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 55 × 57 mm
Interface

6800, 8080, I2C, SPI
Technology

FSTN
Construction

COG
Pixels

128×128

Product Description

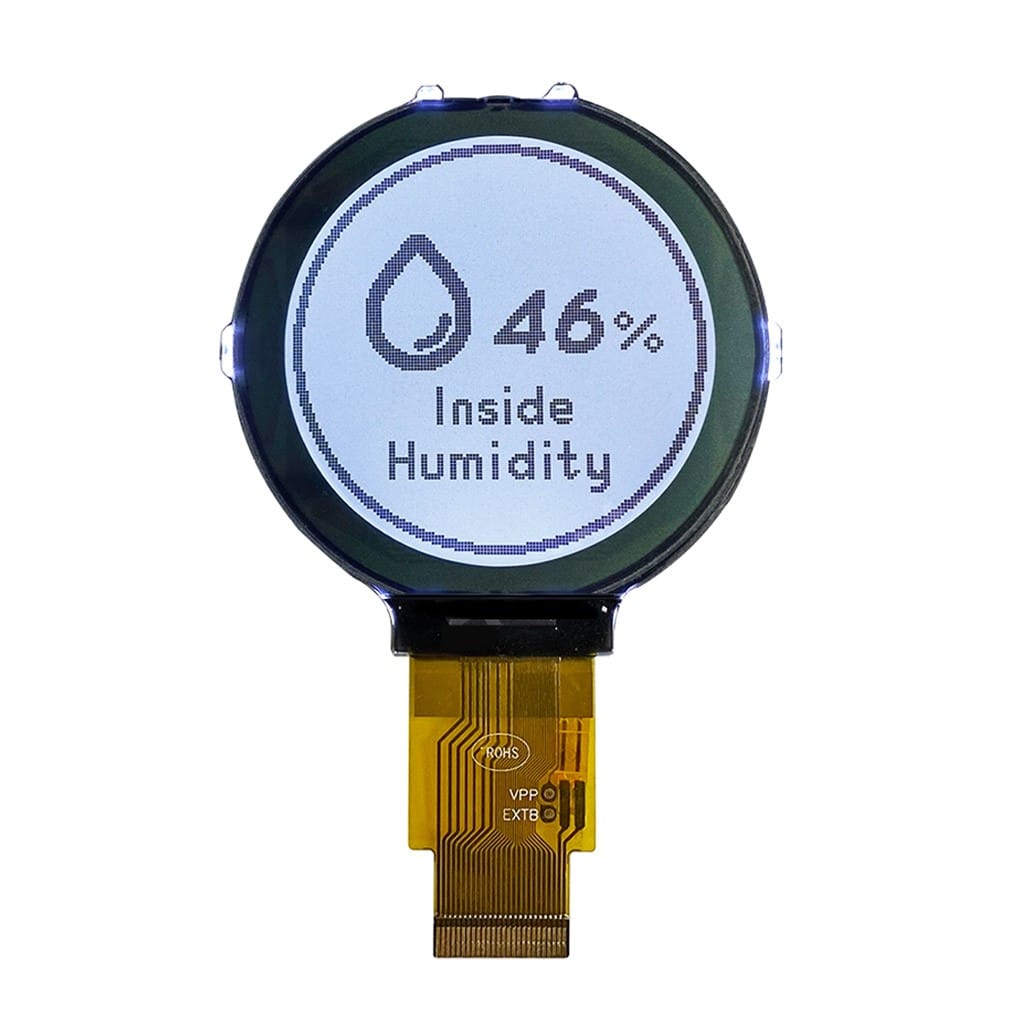

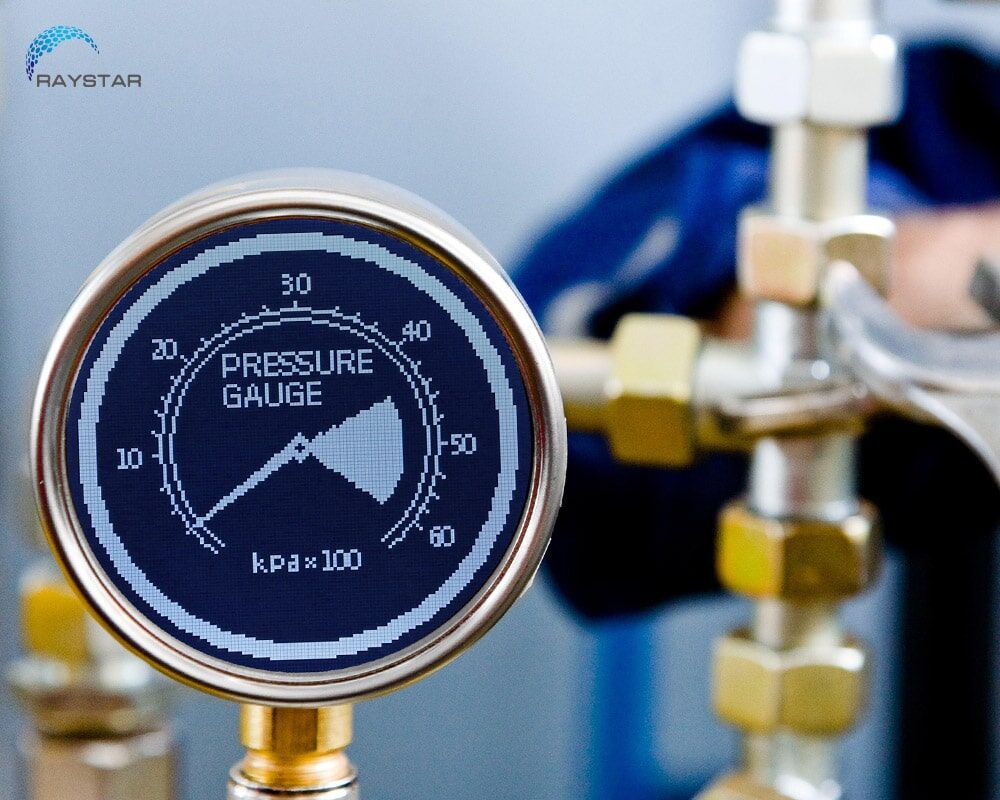

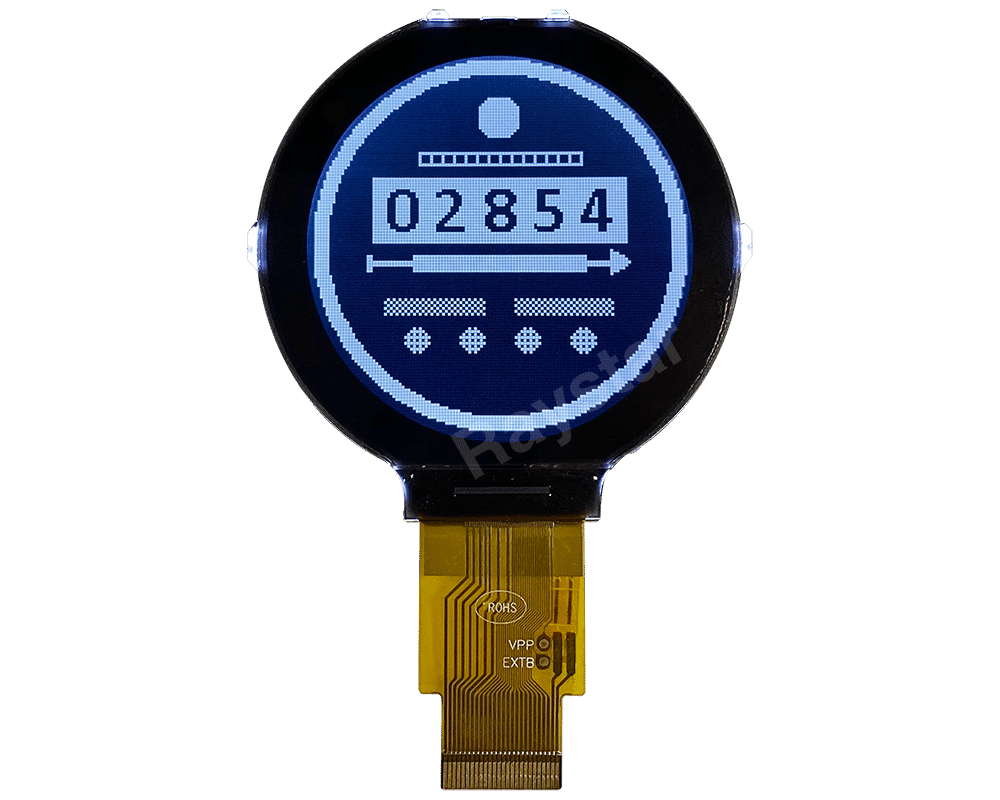

The 3V3 RX128128A Chip-On-Glass LCD is a truly circular display offering 128×128 pixels.With an active area of 42.0mm x 42.mm within a viewable area of 44.0mm x 44.0mm this device is ideal for wearable technology applications. This display is available in FSTN Technology

The integrated ST75161 IC, allows for 6800, 8080, SPI or I2C interfacing



  • 128×128 Circular Graphic Liquid Crystal Display with FFC
  • Chip-On-Glass
  • Dimensions: 55.0mm x 57.0mm
  • Viewing Area: 44.0mm x 44.0mm
  • Dot Size: 0.308mm x 0.308mm
  • Dot Pitch: 0.31mm x 0.31mm
  • Available in either STN or FSTN Technology
  • Available in Reflective or Transflective Mode, with a white LED backlight if required
  • Standard Operating Temperature of -20°C to +70°C
