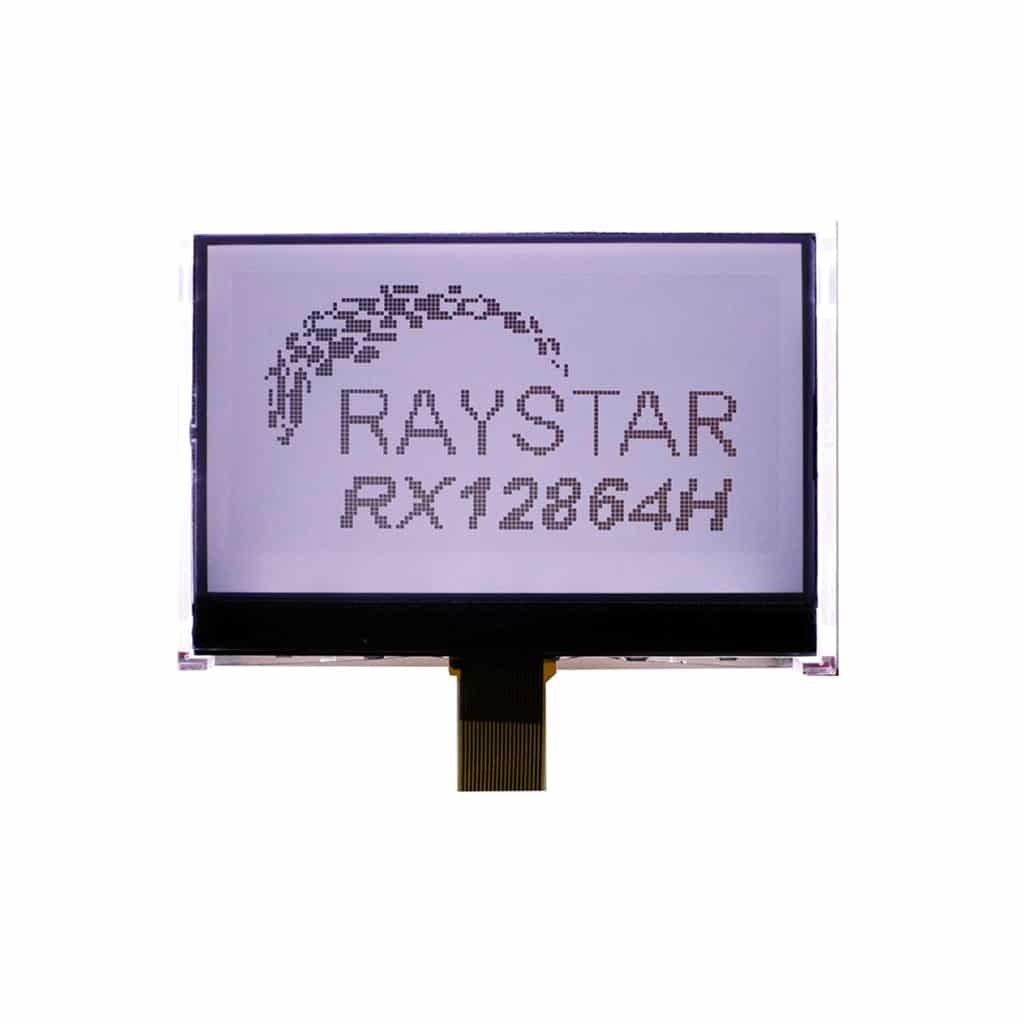

RX12864H series Chip-On-Glass 128×64 LCD 80.0mm x 54.0mm

SKU: RX12864H Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 80.0 × 54.0 mm
Pixels

128×64
Interface

6800, 8080, SPI
Construction

COG

Product Description

The RX12864H series is a standard Chip-On-Glass LCD,  offering 128×64 pixels within a 70.7mm x 38.8mm viewable area, with a built in ST7565G controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available











  • 128×64 Graphic LCD
  • Chip-On-Glass
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 80.0mm x 54.0mm
  • Viewing Area: 70.7mm x 38.8mm
  • Active Area: 66.52mm x 33.24mm
  • Dot Size: 0.48mm x 0.48mm
  • Dot Pitch: 0.52mm x 0.52mm
  • 6800, 8080 & SPI Interface
  • Power Supply: 3.3V
  • On-Board Controller: ST7565G (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
