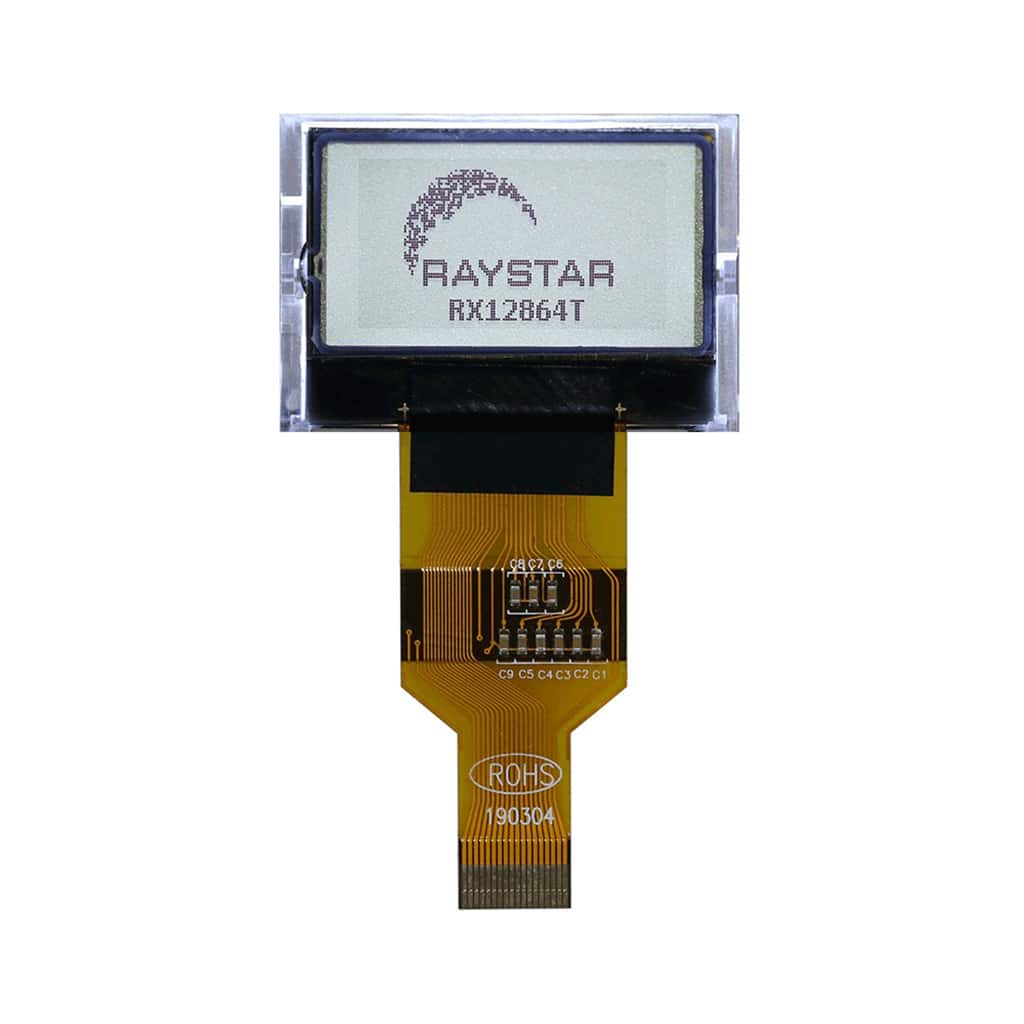

RX12864T series Chip-On-Glass 128x64 LCD 38.0mm x 26.42mm

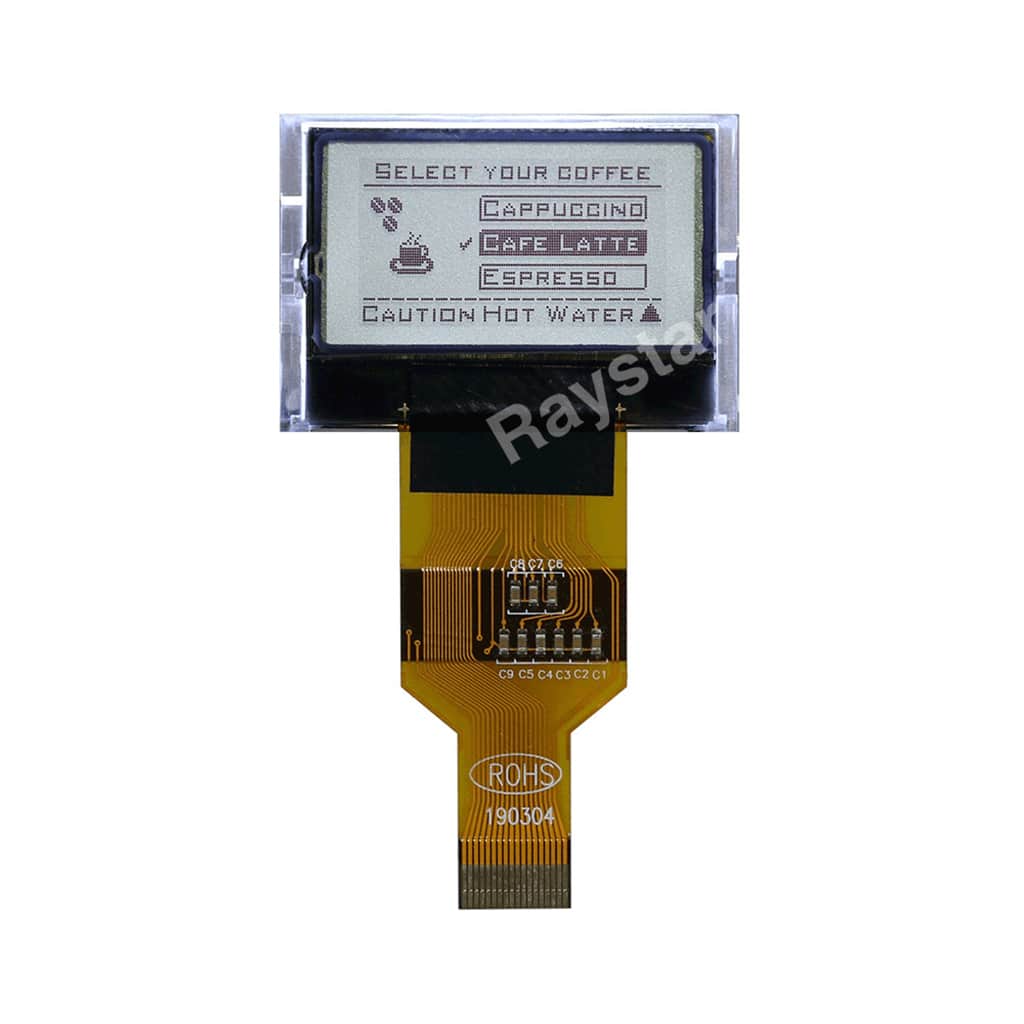

RX12864T series Chip-On-Glass 128x64 LCD 38.0mm x 26.42mm - Image 2

RX12864T series Chip-On-Glass 128×64 LCD 38.0mm x 26.42mm

SKU: RX12864T Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 38.0 × 26.42 mm
Pixels

128×64
Interface

6800, 8080, SPI
Construction

COG

Product Description

The RX12864T series is a standard Chip-On-Glass LCD,  offering 128×64 pixels within a 29.58mm x 16.22mm viewable area, with a built in ST7565P controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available











  • 128×64 Graphic LCD
  • Chip-On-Glass
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 38.0mm x 26.42mm
  • Viewing Area: 29.58mm x 16.22mm
  • Active Area: 25.58mm x 14.06mm
  • Dot Size: 0.18mm x 0.20mm
  • Dot Pitch: 0.20mm x 0.20mm
  • 6800, 8080 & SPI Interface
  • Power Supply: 3.3V
  • On-Board Controller: ST7565P (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
