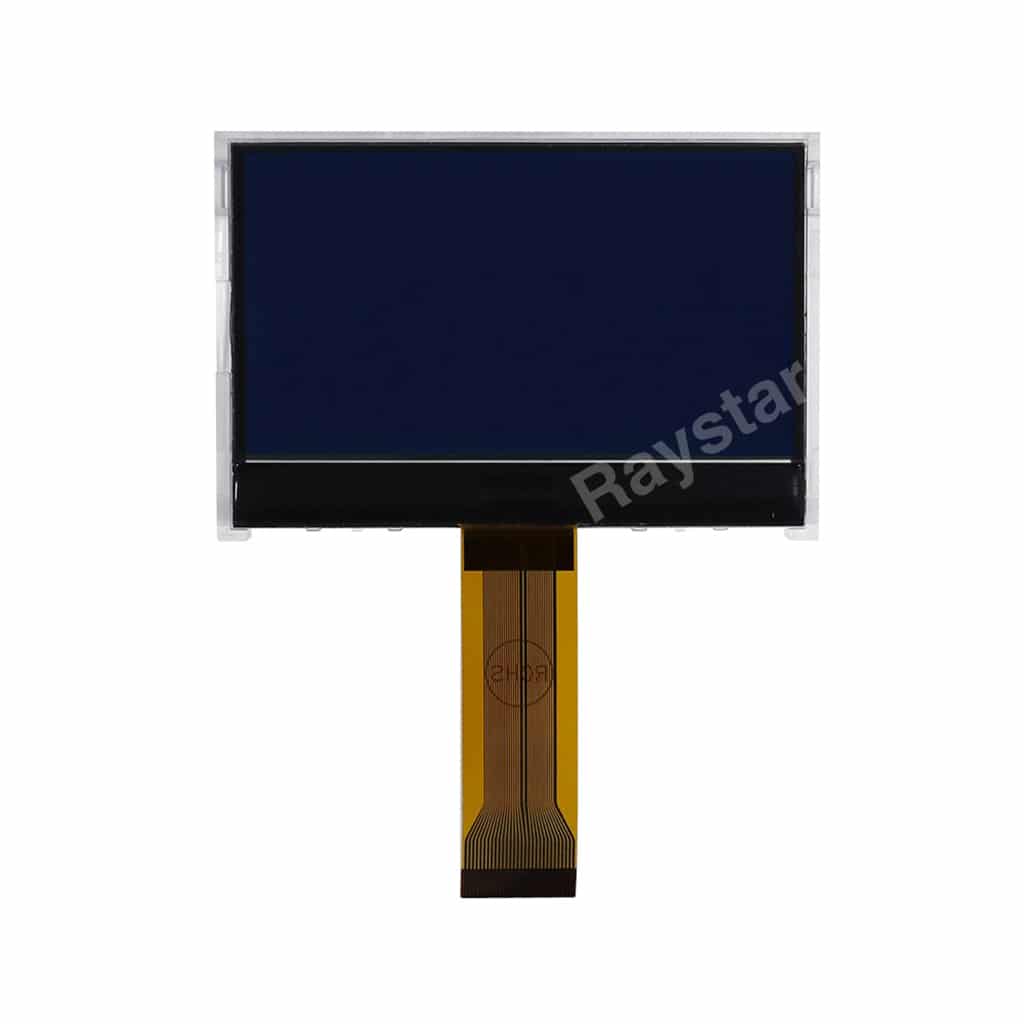

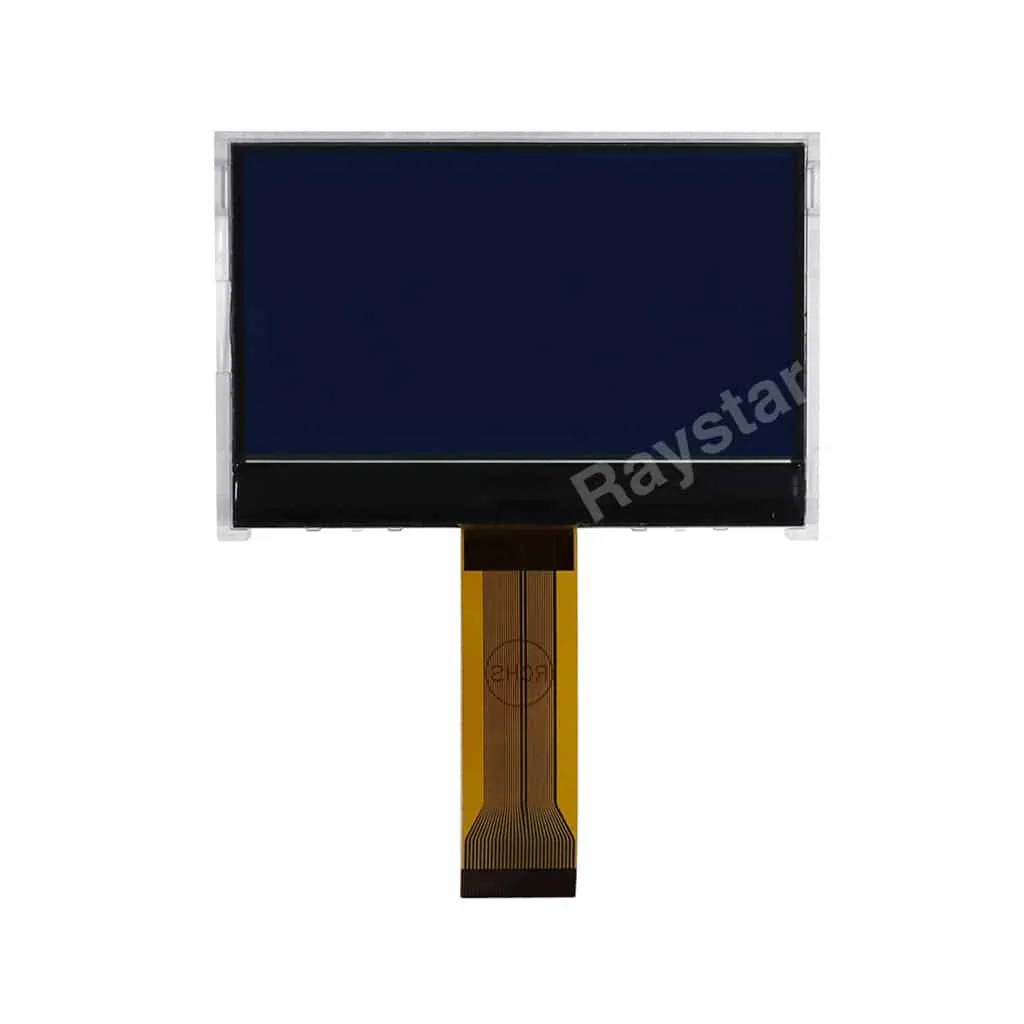

RX14464A5 series Chip-On-Glass 144×64 LCD 80.0mm x 54.0mm

SKU: RX14464A5 Categories: , , Manufacturer:

Product specs

Dimensions 80.0 × 54.0 mm



6800, 8080, SPI



Product Description

The RX14464A5 series is a standard Chip-On-Glass LCD,  offering 144×64 pixels within a 70.7mm x 38.8mm viewable area, with a built in RA8816N controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available






  • 144×64 Graphic LCD
  • Chip-On-Glass
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 80.0mm x 54.0mm
  • Viewing Area: 70.7mm x 38.8mm
  • Active Area: 64.78mm x 33.26mm
  • Dot Size: 0.43mm x 0.50mm
  • Dot Pitch: 0.45mm x 0.52mm
  • 6800, 8080 & SPI Interface
  • Power Supply: 3.3V
  • On-Board Controller: ST7565P (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
