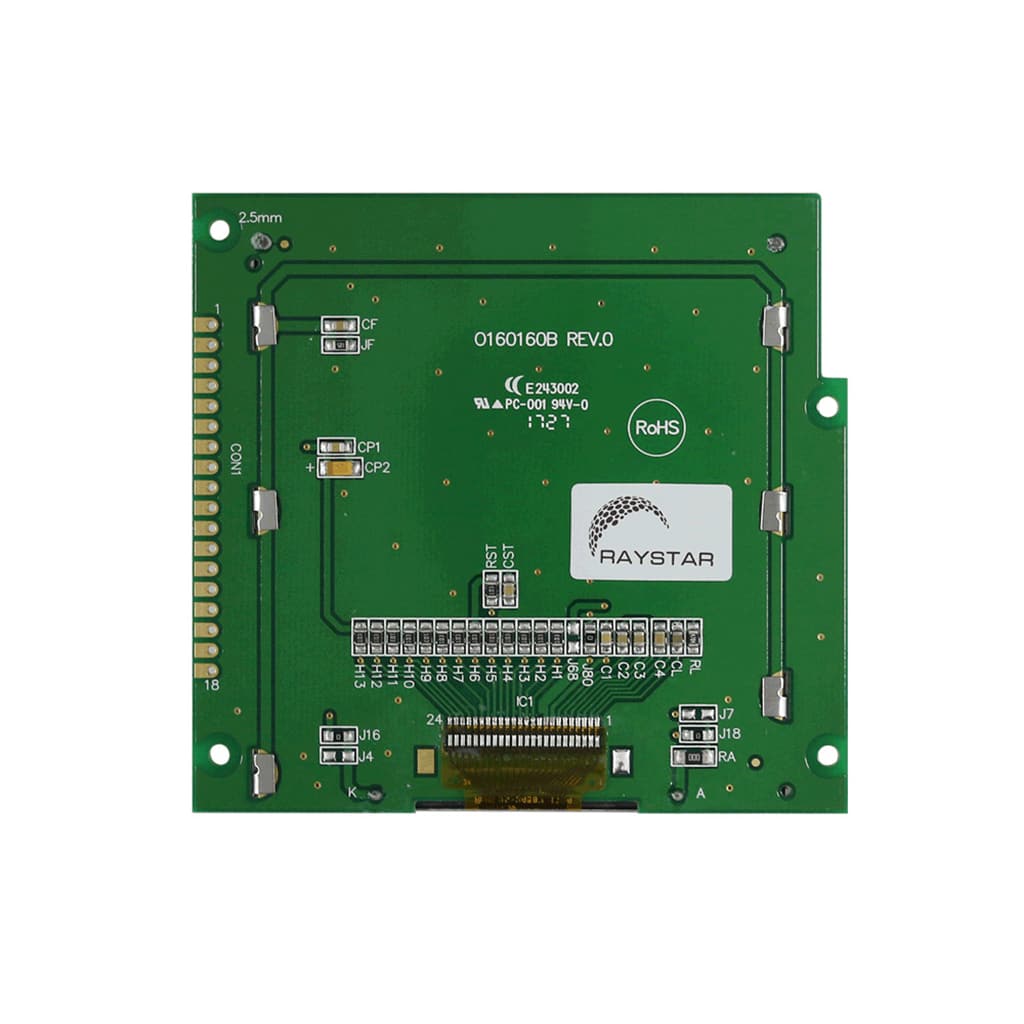

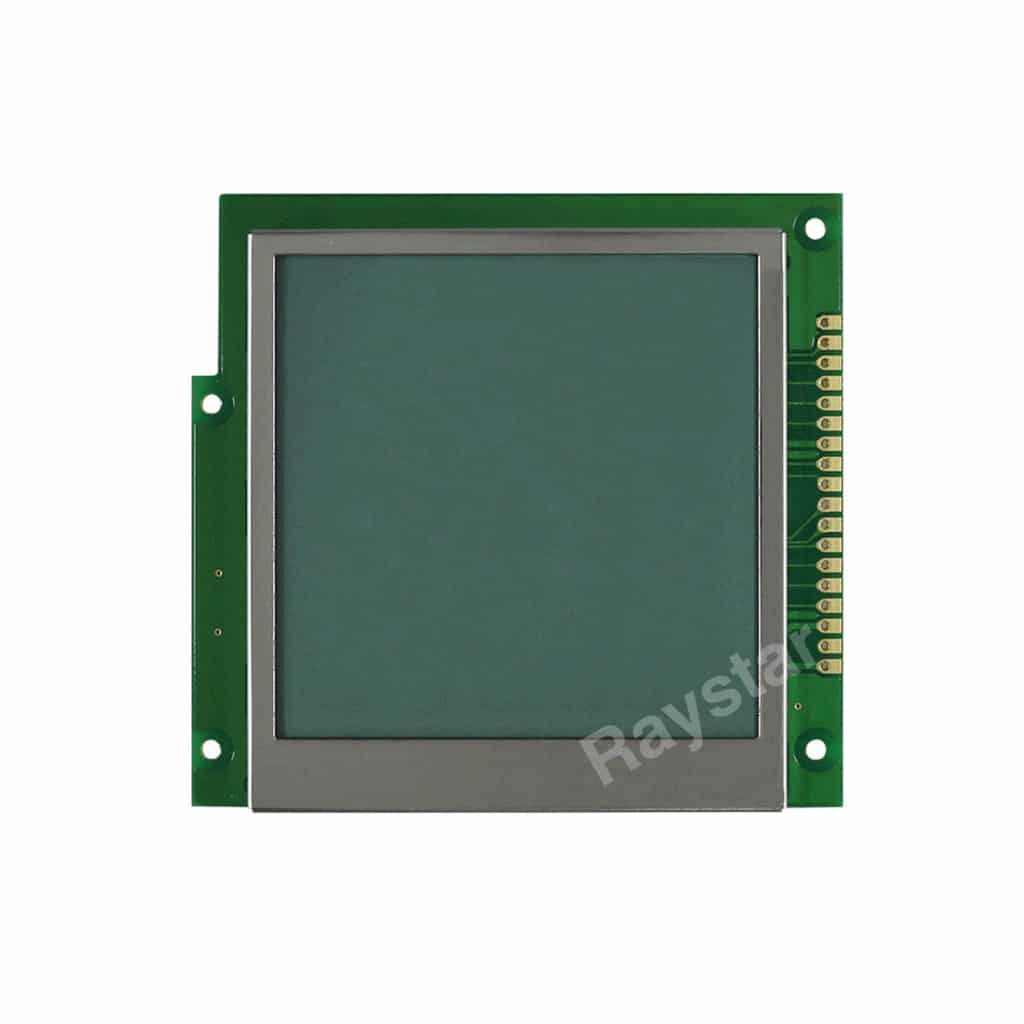

RX160160B series Chip-On-Glass 160×160 LCD 82.2mm x 77.5mm

SKU: RX160160B Categories: , , Manufacturer:

Product specs

Dimensions 82.2 × 77.5 mm



6800, 8080



Product Description

The RX160160B series is a standard Chip-On-Glass LCD,  offering 160×160 pixels within a 60.0mm x 60.0mm viewable area, with a built in UC1698U controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available






  • 160×160 Graphic LCD
  • Chip-On-Glass
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 82.2mm x 77.5mm
  • Viewing Area: 60.0mm x 60.0mm
  • Active Area: 54.38mm x 54.38mm
  • Dot Size: 0.32mm x 0.32mm
  • Dot Pitch: 0.34mm x 0.34mm
  • 6800 & 8080 Interface
  • Power Supply: 3.3V
  • On-Board Controller: UC1698U (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
