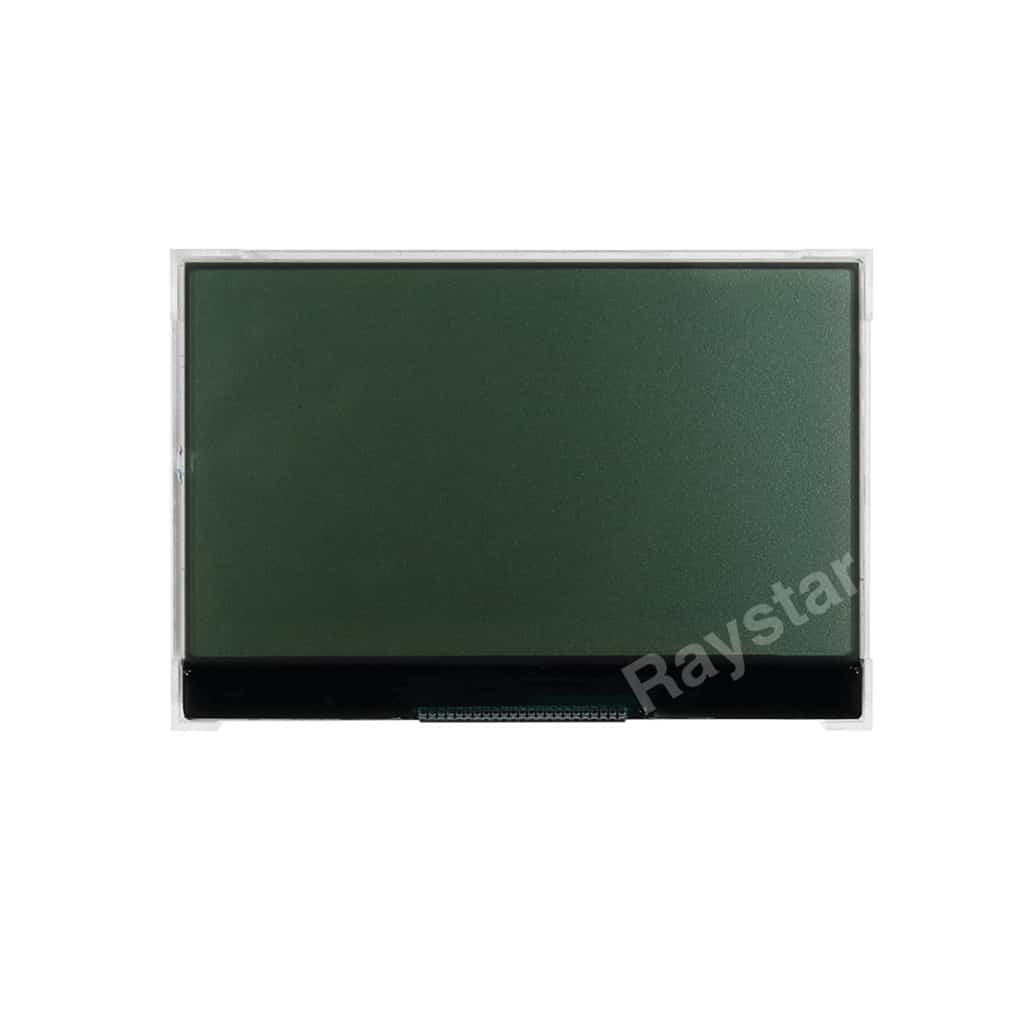

RX240128A series 240x128 Chip-On-Glass LCD 98.7mm x 67.7mm

RX240128A series 240×128 Chip-On-Glass LCD 98.7mm x 67.7mm

SKU: RX240128A Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 98.7 × 67.7 mm
Pixels

240×128
Interface

6800, 8080, SPI
Construction

COG

Product Description

The RX240128A series is a standard Chip-On-Glass LCD,  offering 240×128 pixels within a 92.0mm x 53.0mm viewable area, with a built in UC1608 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.

















  • 240×128 Graphic LCD
  • Chip-On-Glass
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 98.7mm x 67.7mm
  • Viewing Area: 92.0mm x 53.0mm
  • Active Area: 83.97mm x 44.775mm
  • Dot Size: 0.325mm x 0.325mm
  • Dot Pitch: 0.35mm x 0.35mm
  • 6800, 8080 & SPI Interface
  • On-Board Controller: UC1608 (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
