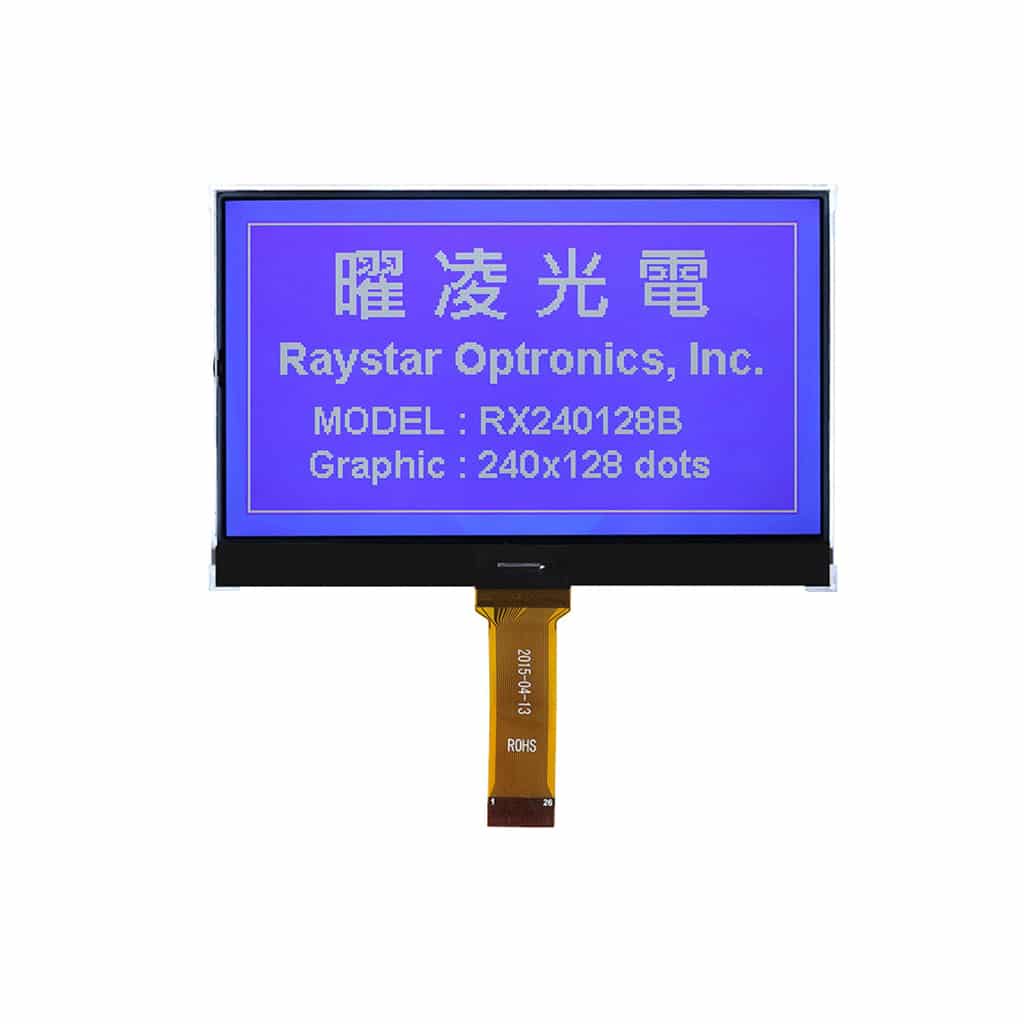

RX240128B series 240x128 Chip-On-Glass LCD 120.2mm x 77.6mm

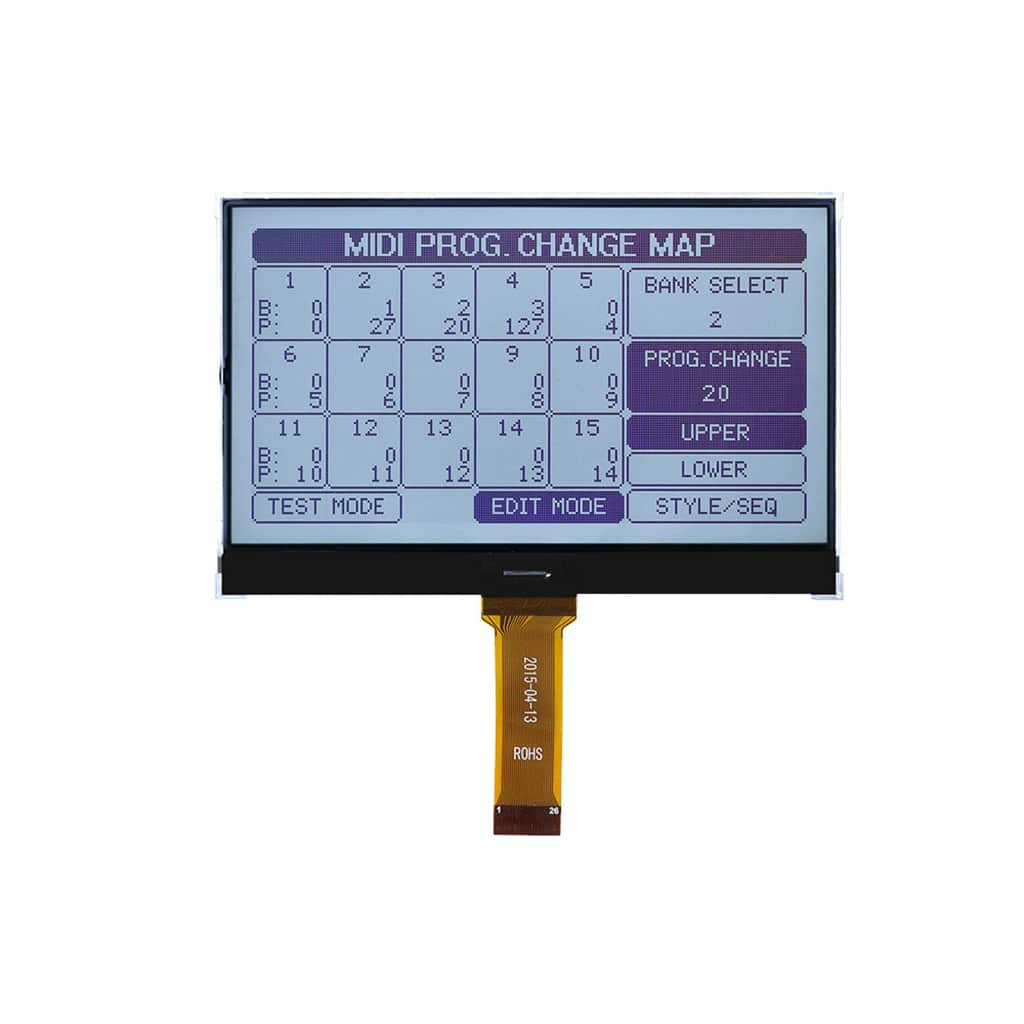

RX240128B series 240x128 Chip-On-Glass LCD 120.2mm x 77.6mm - Image 2

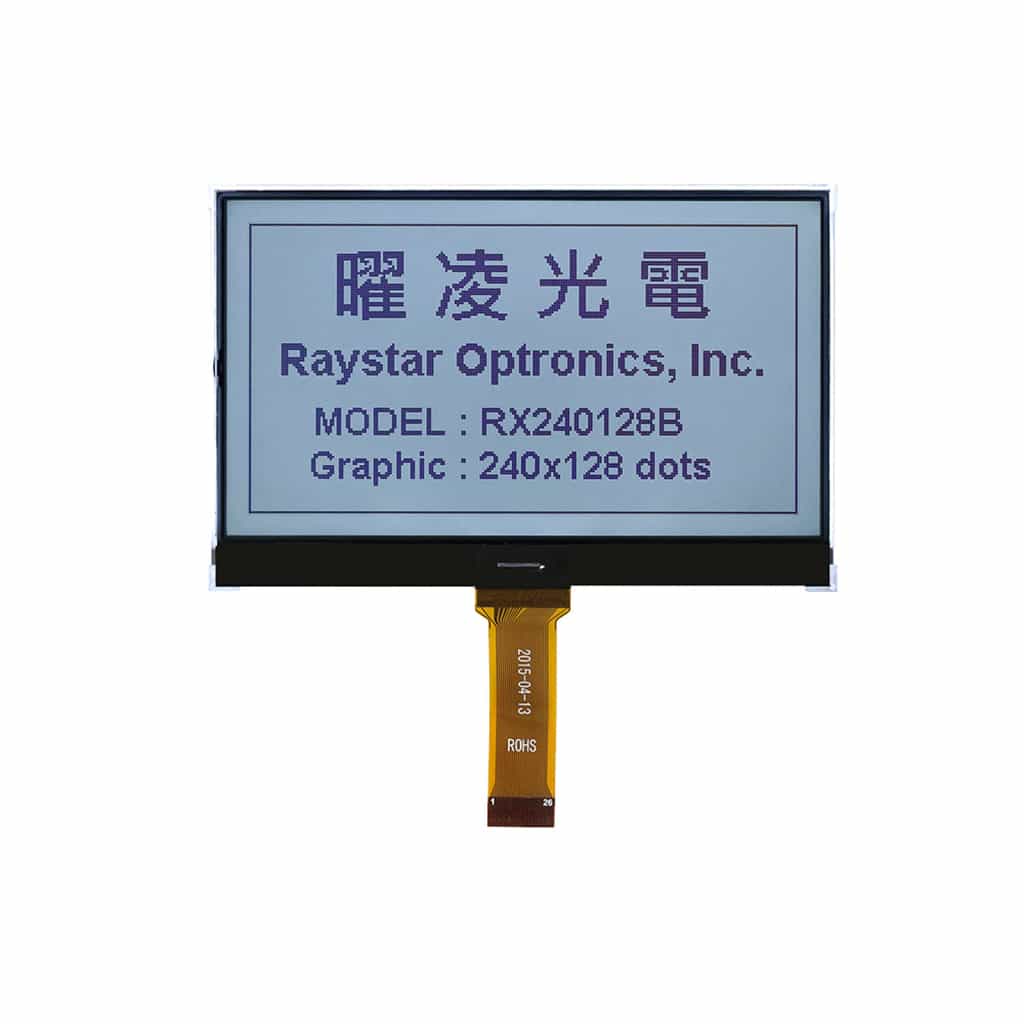

RX240128B series 240x128 Chip-On-Glass LCD 120.2mm x 77.6mm - Image 3

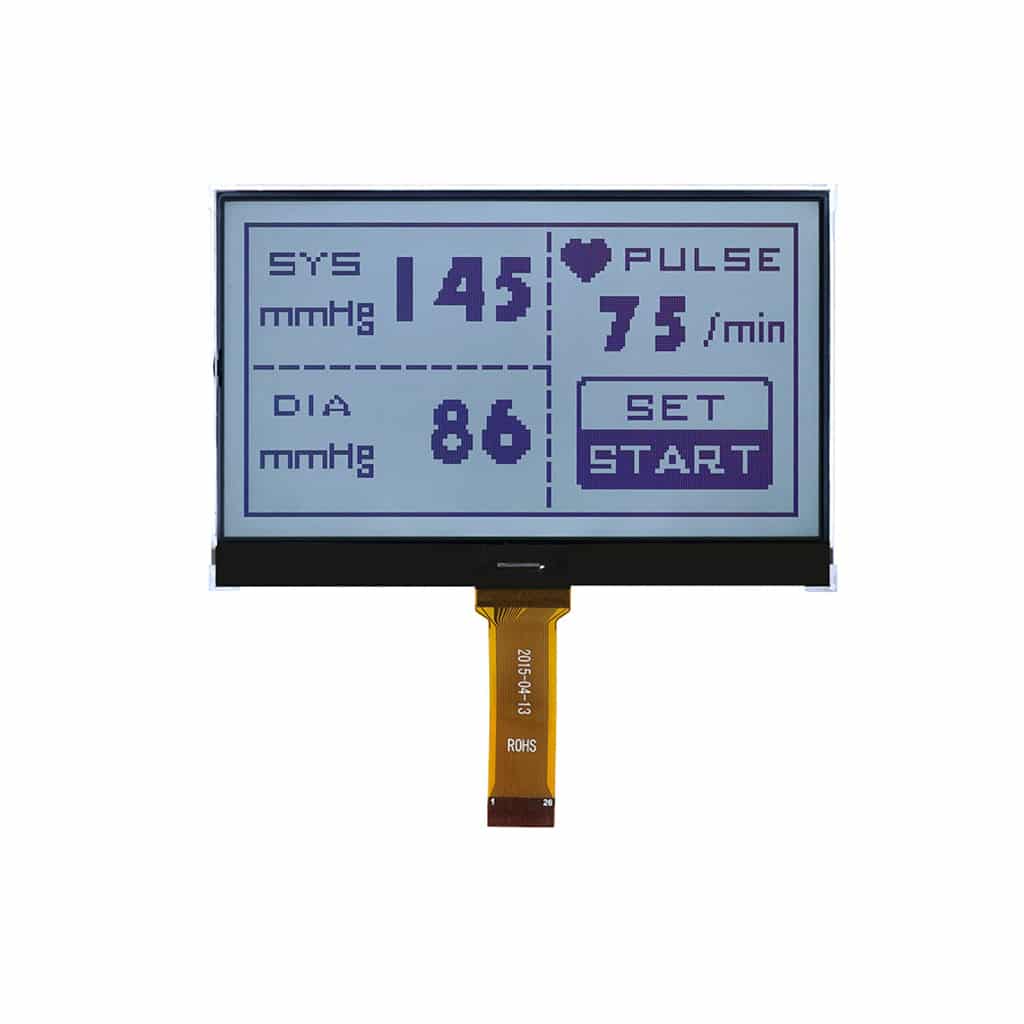

RX240128B series 240x128 Chip-On-Glass LCD 120.2mm x 77.6mm - Image 4

RX240128B series 240×128 Chip-On-Glass LCD 120.2mm x 77.6mm

SKU: RX240128B Categories: , , Manufacturer:

Product specs

Dimensions 120.2 × 77.6 mm
Pixels

240×128
Interface

6800, 8080, SPI
Construction

COG

Product Description

The RX240128B series is a standard Chip-On-Glass LCD,  offering 240×128 pixels within a 114.0mm x 64.0mm viewable area, with a built in ST7586S-G4 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.

















  • 240×128 Graphic LCD
  • Chip-On-Glass
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 120.2mm x 77.6mm
  • Viewing Area: 114.0mm x 64.0mm
  • Active Area: 107.98mm x 57.58mm
  • Dot Size: 0.43mm x 0.43mm
  • Dot Pitch: 0.45mm x 0.45mm
  • 6800, 8080 & SPI Interface
  • On-Board Controller: ST7586S-G4(or equivalent)
  • Power Supply: 3.3V
  • Standard Operating Temperature of -20°C to +70°C
