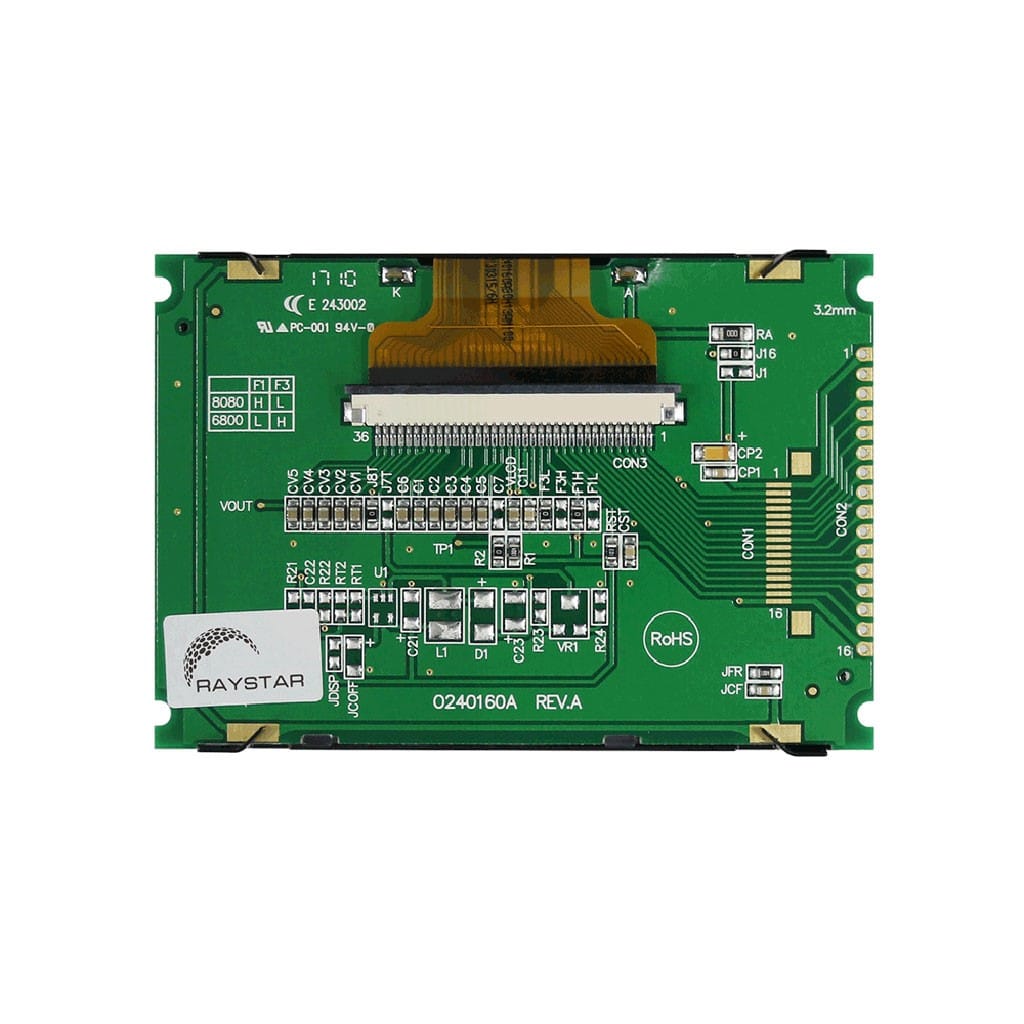

RX240160A series 240x160 Chip-On-Glass on PCB LCD 93.0mm x 64.2mm

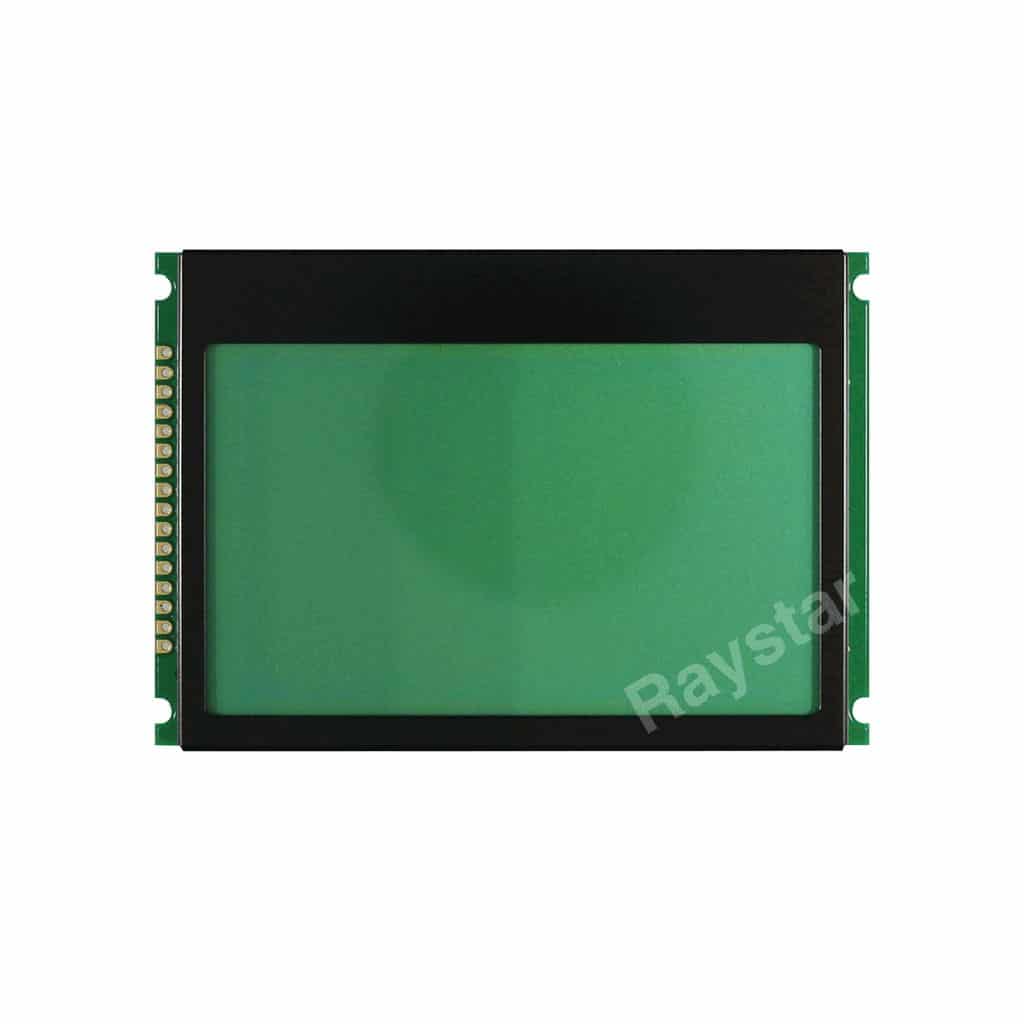

RX240160A series 240x160 Chip-On-Glass on PCB LCD 93.0mm x 64.2mm - Image 2

RX240160A series 240×160 Chip-On-Glass on PCB LCD 93.0mm x 64.2mm

SKU: RX240160A Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 93.0 × 64.2 mm
Pixels

240×160
Interface

6800, 8080
Construction

COG

Product Description

The RX240160A series is a standard Chip-On-Glass LCD placed on a PCB for ease of use, offering 240×160 pixels within a 78.5mm x 47.5mm viewable area, with a built in ST7529 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.

















  • 240×128 Graphic LCD
  • Chip-On-Glass
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 93.0mm x 64.2mm
  • Viewing Area: 78.5mm x 47.5mm
  • Active Area: 69.58mm x 43.98mm
  • Dot Size: 0.27mm x 0.255mm
  • Dot Pitch: 0.29mm x 0.275mm
  • 6800 & 8080 Interface
  • On-Board Controller: ST7529 (or equivalent)
  • Power Supply: 3.3V
  • Standard Operating Temperature of -20°C to +70°C
