RX24064C series 240×64 Chip-On-Glass LCD 111.4mm x 45.5mm

SKU: RX24064C Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 111.4 × 45.5 mm
Pixels

256×64
Interface

6800, 8080, SPI
Construction

COG

Product Description

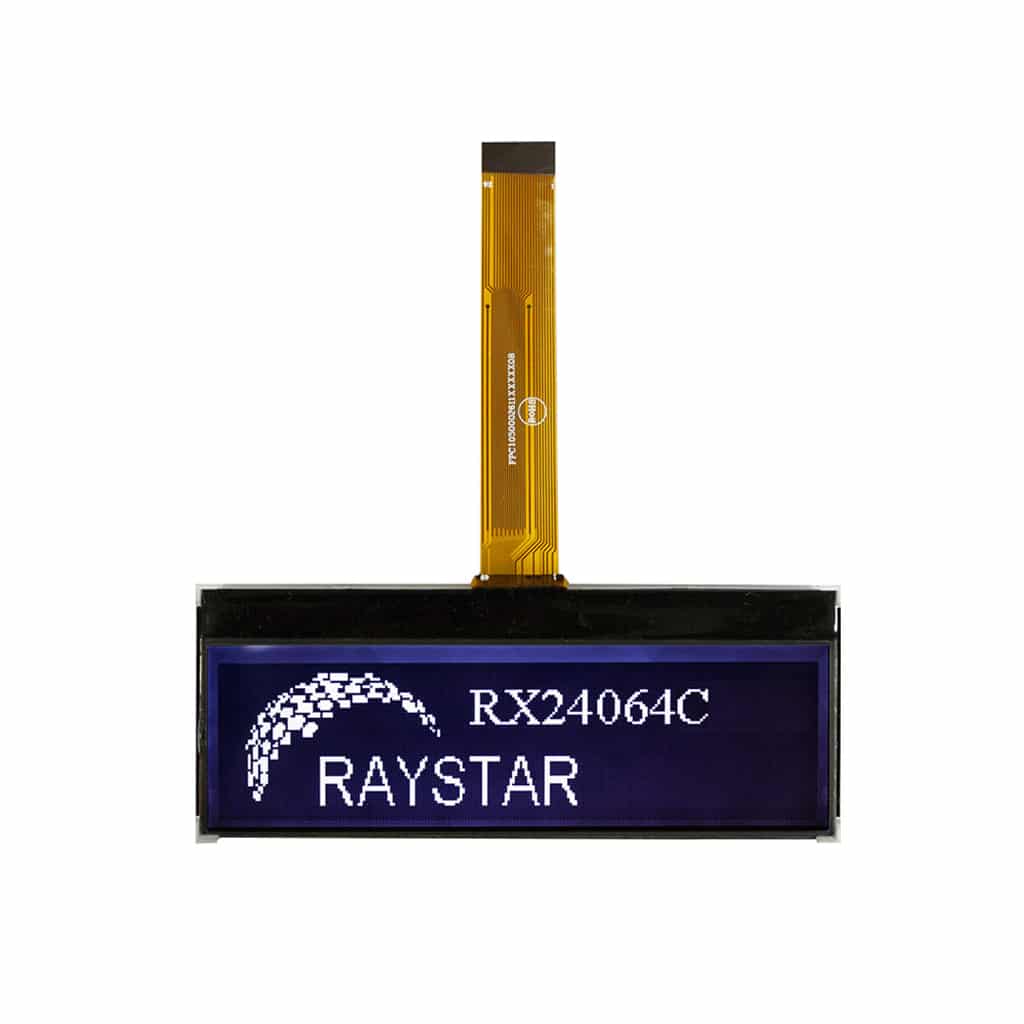

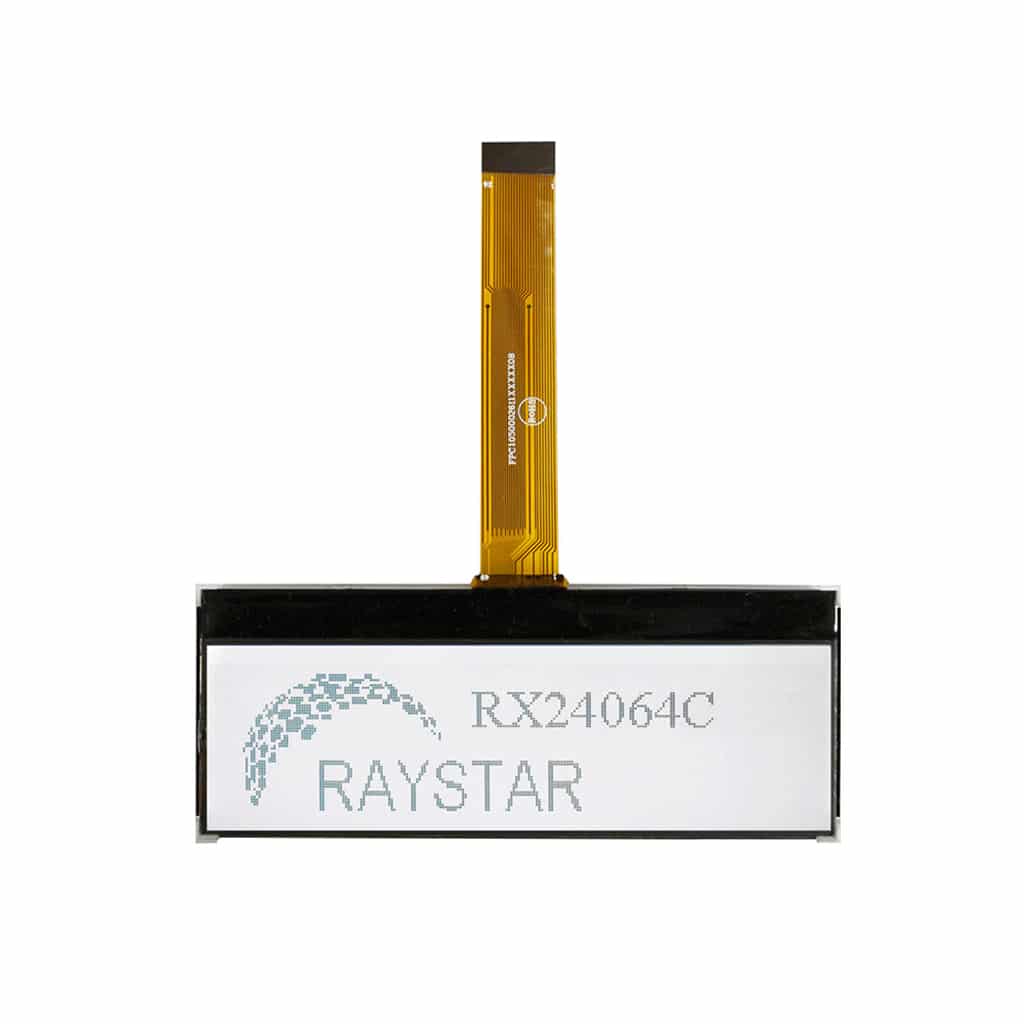

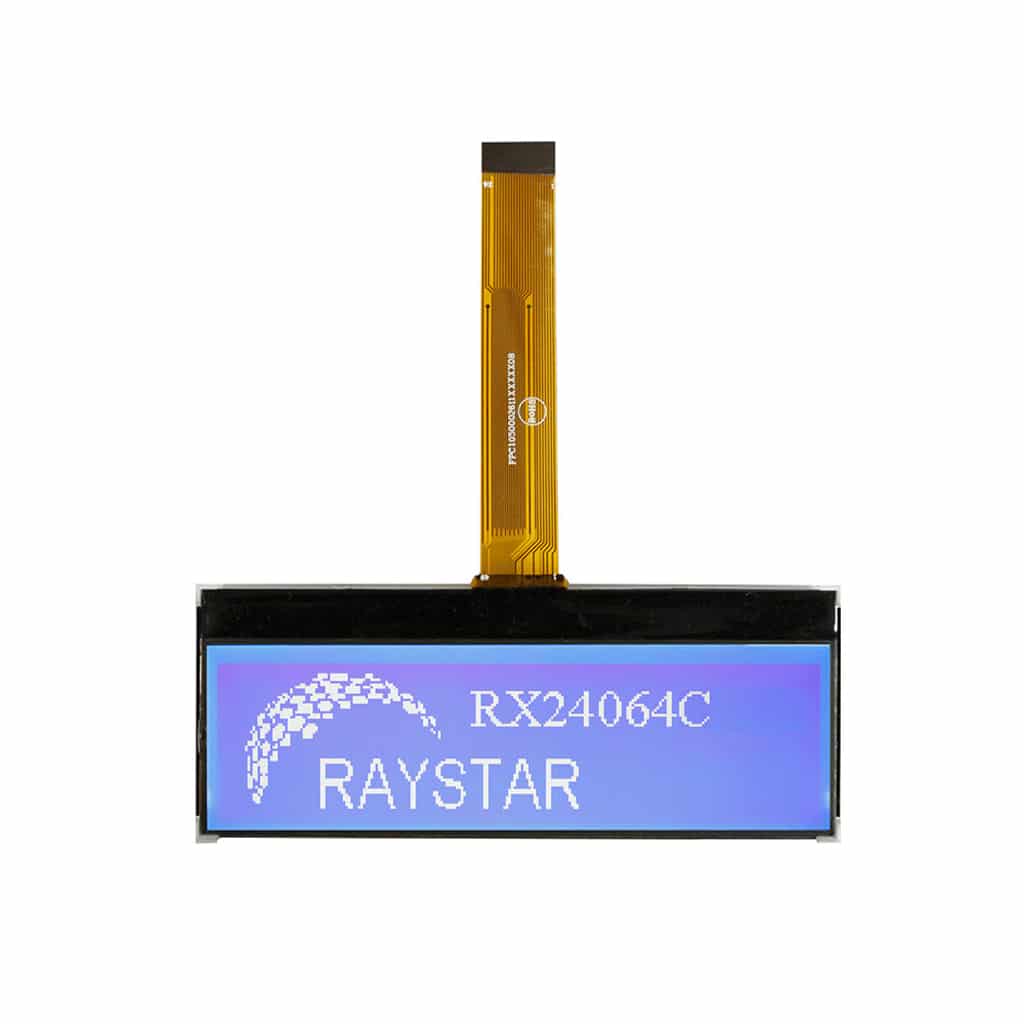

The RX24064C series is a standard Chip-On-Glass LCD offering 240×64 pixels within a 106.2mm x 31.2mm viewable area, with a built in ST7586S-G4 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.

















  • 240×64 Graphic LCD
  • Chip-On-Glass
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 111.4mm x 45.5mm
  • Viewing Area: 106.2mm x 31.2mm
  • Active Area: 103.17mm x 27.49mm
  • Dot Size: 0.40mm x 0.40mm
  • Dot Pitch: 0.43mm x 0.43mm
  • 6800, 8080 & SPI Interface
  • On-Board Controller: ST7586S-G4 (or equivalent)
  • Power Supply: 3.3V
  • Standard Operating Temperature of -20°C to +70°C
