RX24064D series 240×64 Chip-On-Glass LCD 86.2mm x 39.3mm

SKU: RX24064D Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 86.2 × 39.3 mm
Pixels

256×64
Interface

6800, 8080, SPI
Construction

COG

Product Description

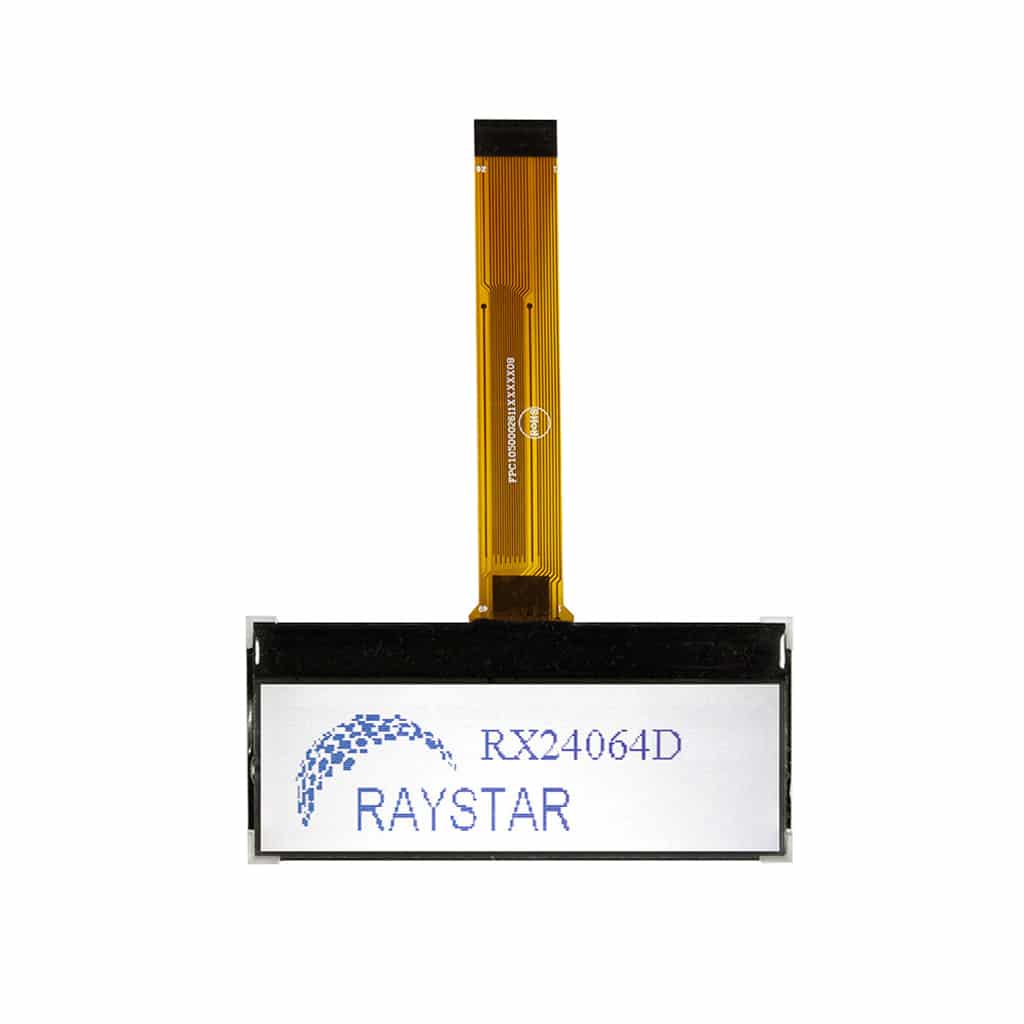

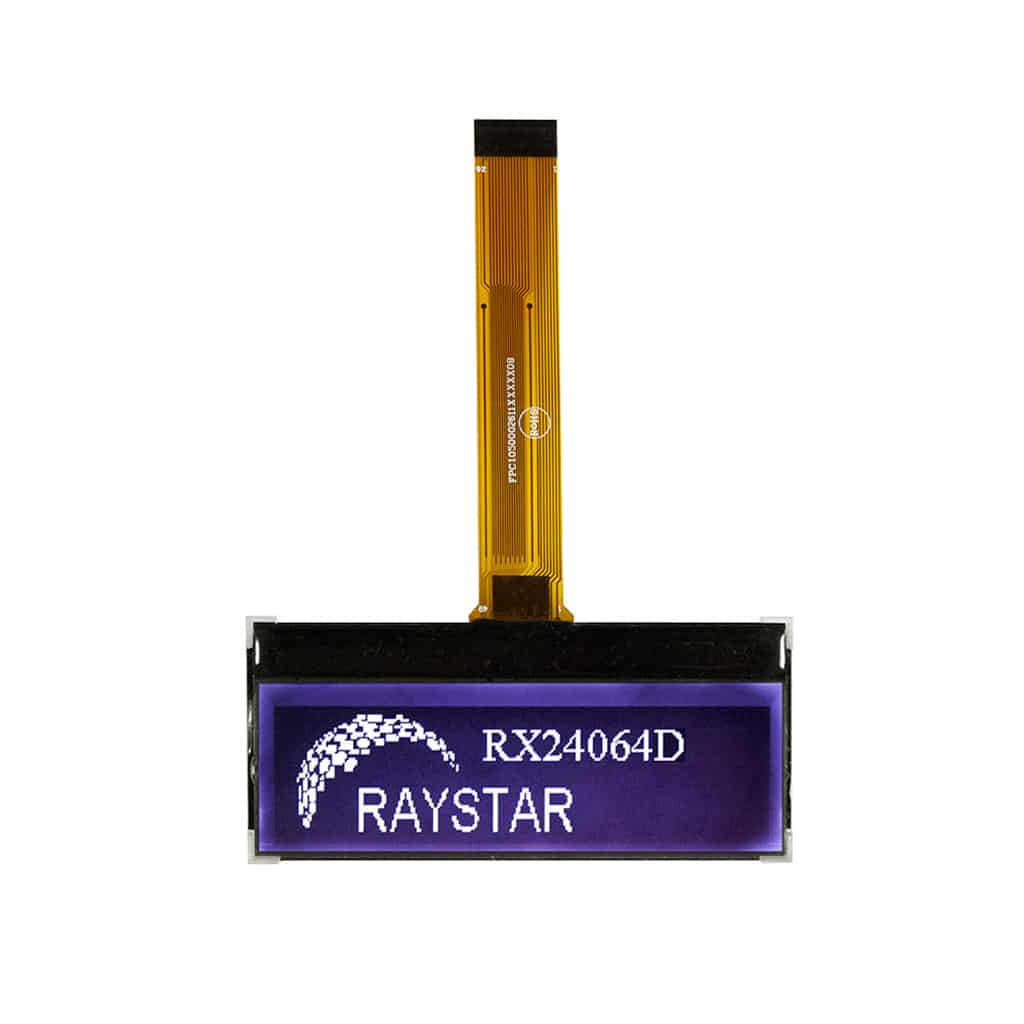

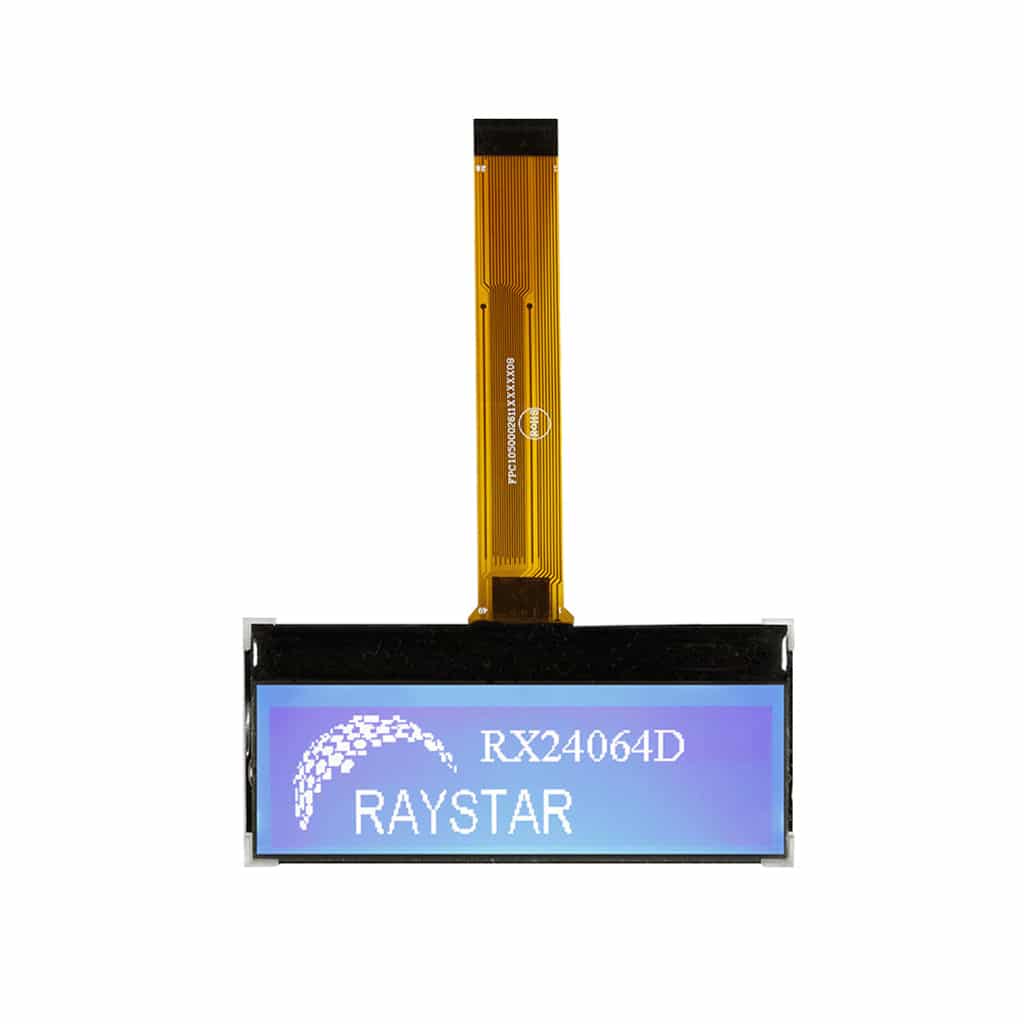

The RX24064D series is a standard Chip-On-Glass LCD offering 240×64 pixels within a 80.8mm x 24.8mm viewable area, with a built in ST7586S-G4 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.

















  • 240×64 Graphic LCD
  • Chip-On-Glass
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 86.2mm x 39.3mm
  • Viewing Area: 80.8mm x 24.8mm
  • Active Area: 76.78mm x 20.46mm
  • Dot Size: 0.30mm x 0.30mm
  • Dot Pitch: 0.32mm x 0.32mm
  • 6800, 8080 & SPI Interface
  • On-Board Controller: ST7586S-G4 (or equivalent)
  • Power Supply: 3.3V
  • Standard Operating Temperature of -20°C to +70°C
