RX256128A series 256×128 Chip-on-Glass LCD 80.0mm x 54.0mm

SKU: RX256128A Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 80.0 × 54.0 mm
Pixels

256×128
Interface

6800, 8080, I2C, SPI
Construction

COG

Product Description

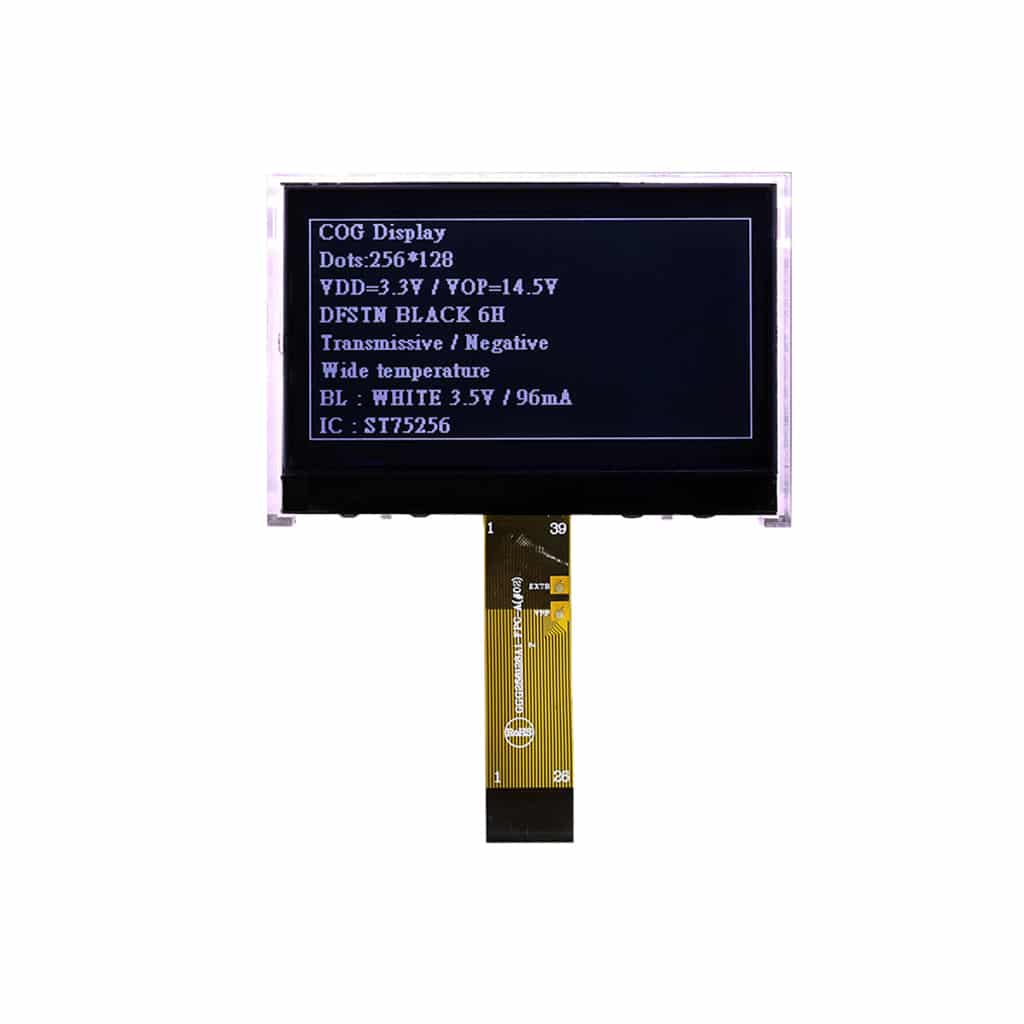

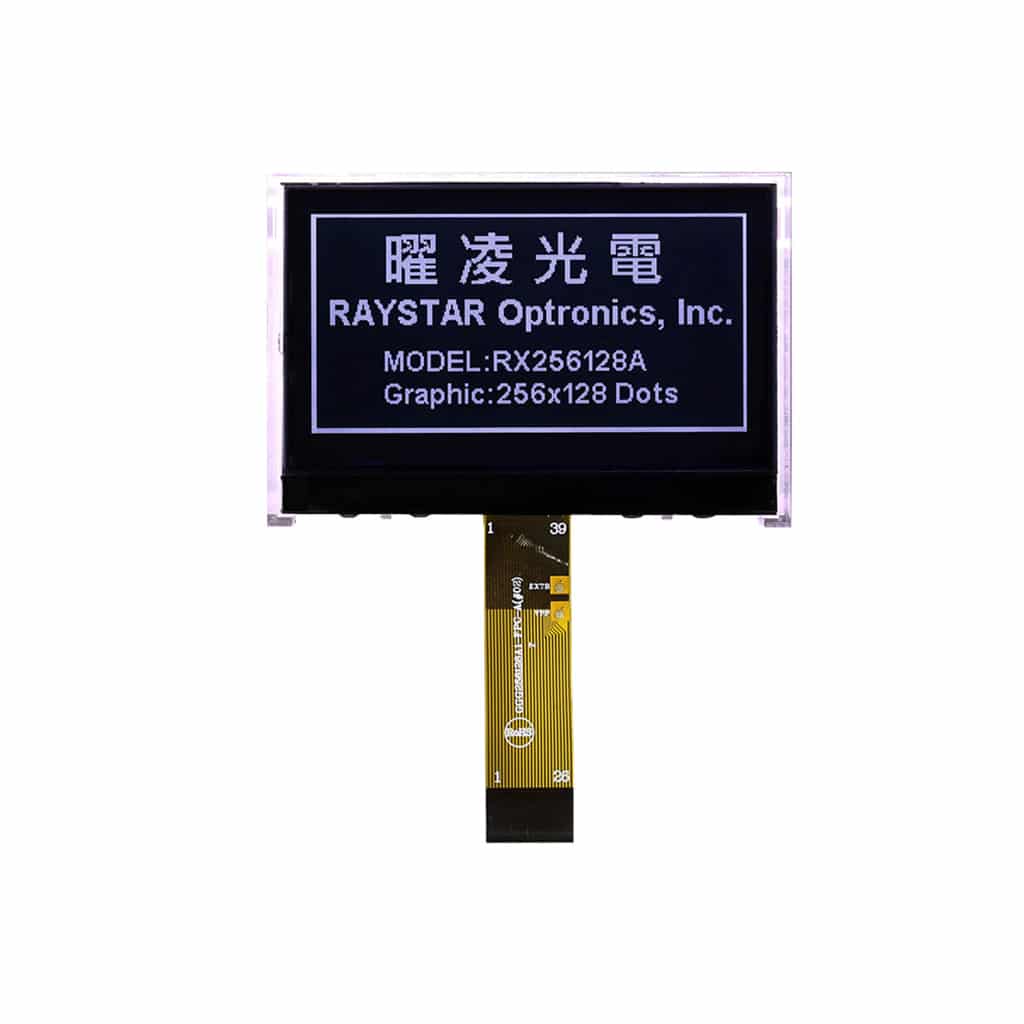

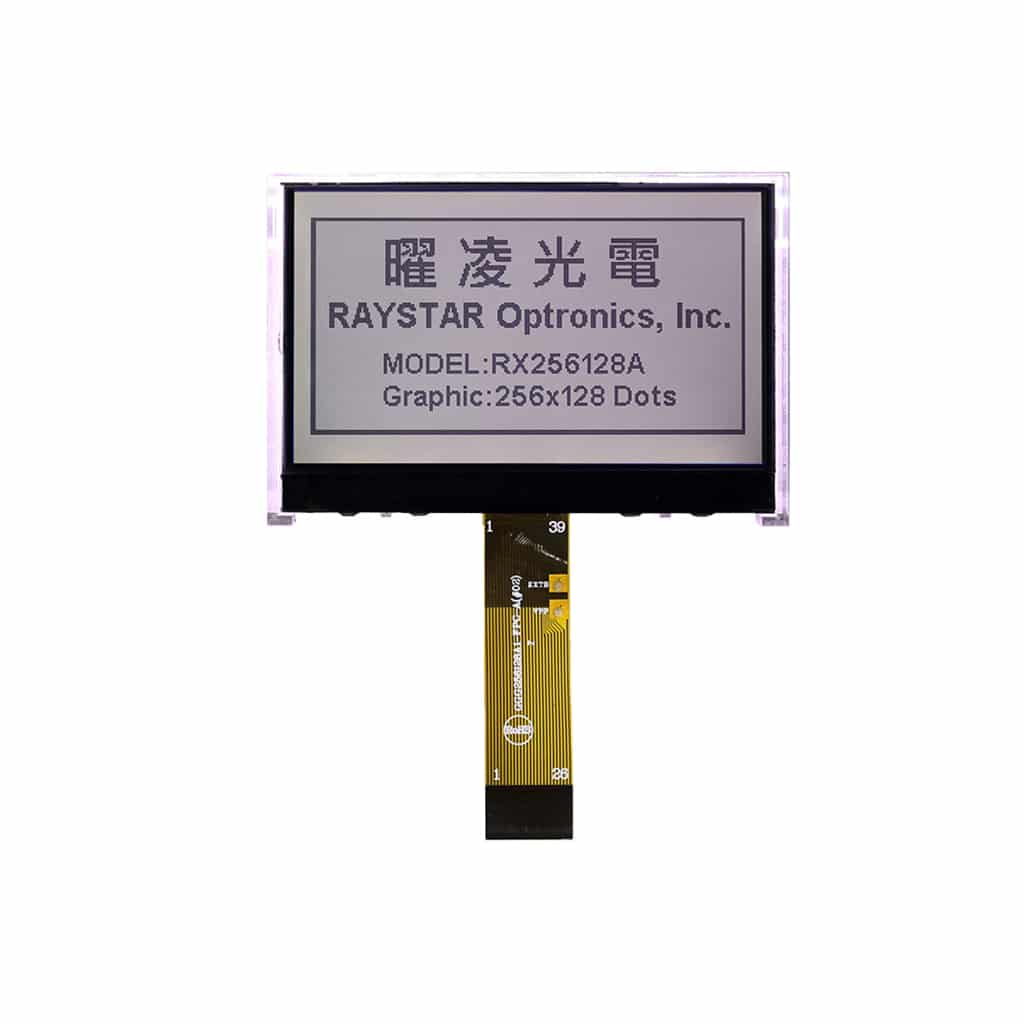

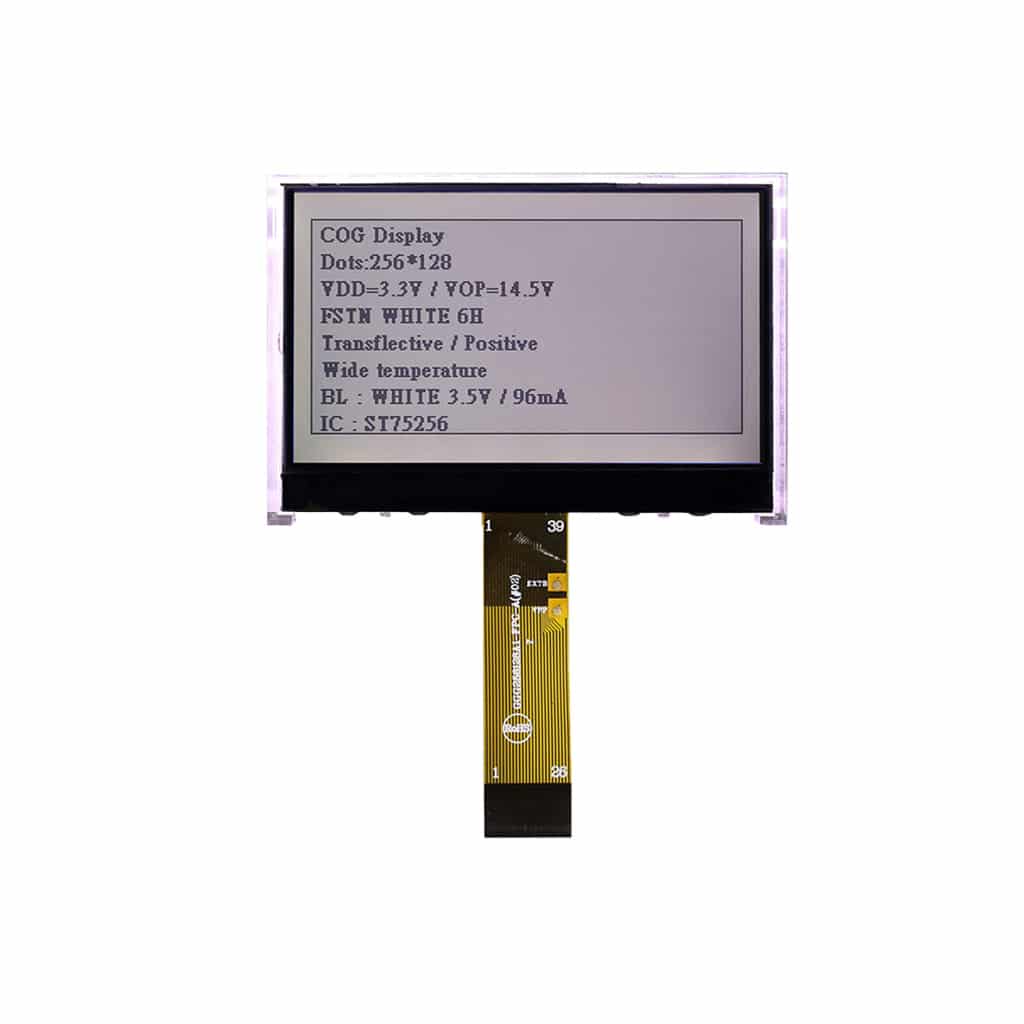

The RX256128A series is a standard Chip-On-Glass LCD,  offering 256×128 pixels within a 70.7mm x 38.8mm viewable area, this display has the ST5256controller IC on board.

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.

















  • 256×128 Graphic LCD
  • Chip-On-Glass
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 80.0mm x 54.0mm
  • Viewing Area: 70.7mm x 38.8mm
  • Active Area: 66.54mm x 33.26mm
  • Dot Size: 0.24mm x 0.24mm
  • Dot Pitch: 0.26mm x 0.26mm
  • On-Board Controller: ST7565P (or equivalent)
  • Interface: 6800 & 8080
  • Power Supply: 3.3V
  • Standard Operating Temperature of -20°C to +70°C
