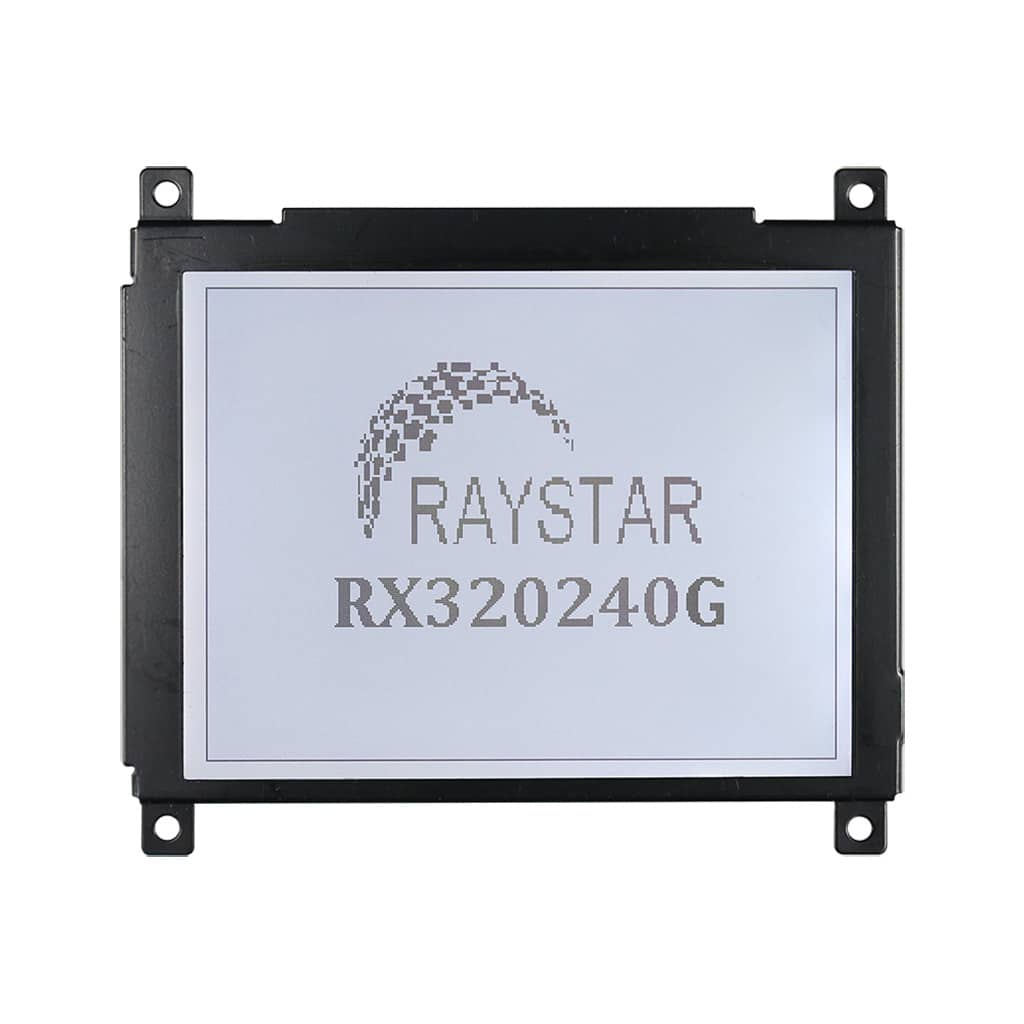

RX320240G series 320×240 (QVGA) Chip-on-Glass LCD 94.7mm x 83.3mm

SKU: RX320240G Categories: , , Manufacturer:

Product specs

Dimensions 94.7 × 83.3 mm



6800, 8080



Product Description

The RX320240G series is a standard Chip-On-Glass QVGA LCD,  offering 320×240 pixels within a 81.4mm x 61.0mm viewable area, this display has no controller IC on board.

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.









  • 320×240 Graphic LCD
  • Chip-On-Glass
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 94.7mm x 83.3mm
  • Viewing Area: 81.4mm x 61.0mm
  • Active Area: 76.785mm x 57.11mm
  • Dot Size: 0.223mm x 0.225mm
  • Dot Pitch: 0.238mm x 0.24mm
  • On-Board Controller: NT7712/NT7711
  • Interface: 6800 & 8080
  • Standard Operating Temperature of -20°C to +70°C
