RY – Single pole 8a Relay

SKU: RY Category: Manufacturer:

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc, 48Vdc, 60Vdc

Contact Arrangement

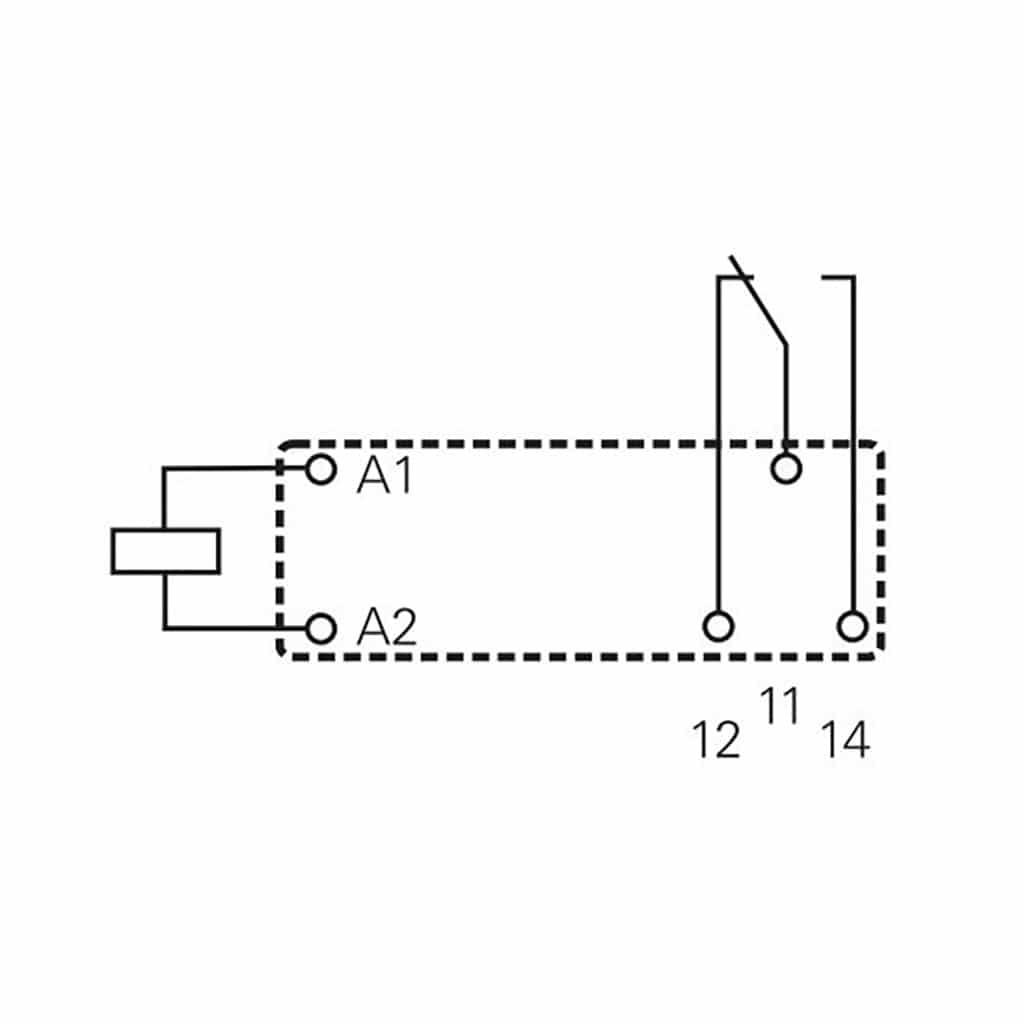

SPST (1NO)- 1 Form A, SPST (1NC) – 1 Form B, SPDT (1CO) – 1 Form C

Coil Type

Non Latching

Contact Rating (Amps)



Flux Proof, Fully Sealed

Contact Material

AgCdO, AgNi 0.15, AgNi 0.15+Au Plated, AgSnO2

Coil Resistance (Ohm)

112Ω, 14000Ω, 162Ω, 627Ω, 9391Ω, 320Ω, 2350Ω




Power Relay

Product Description

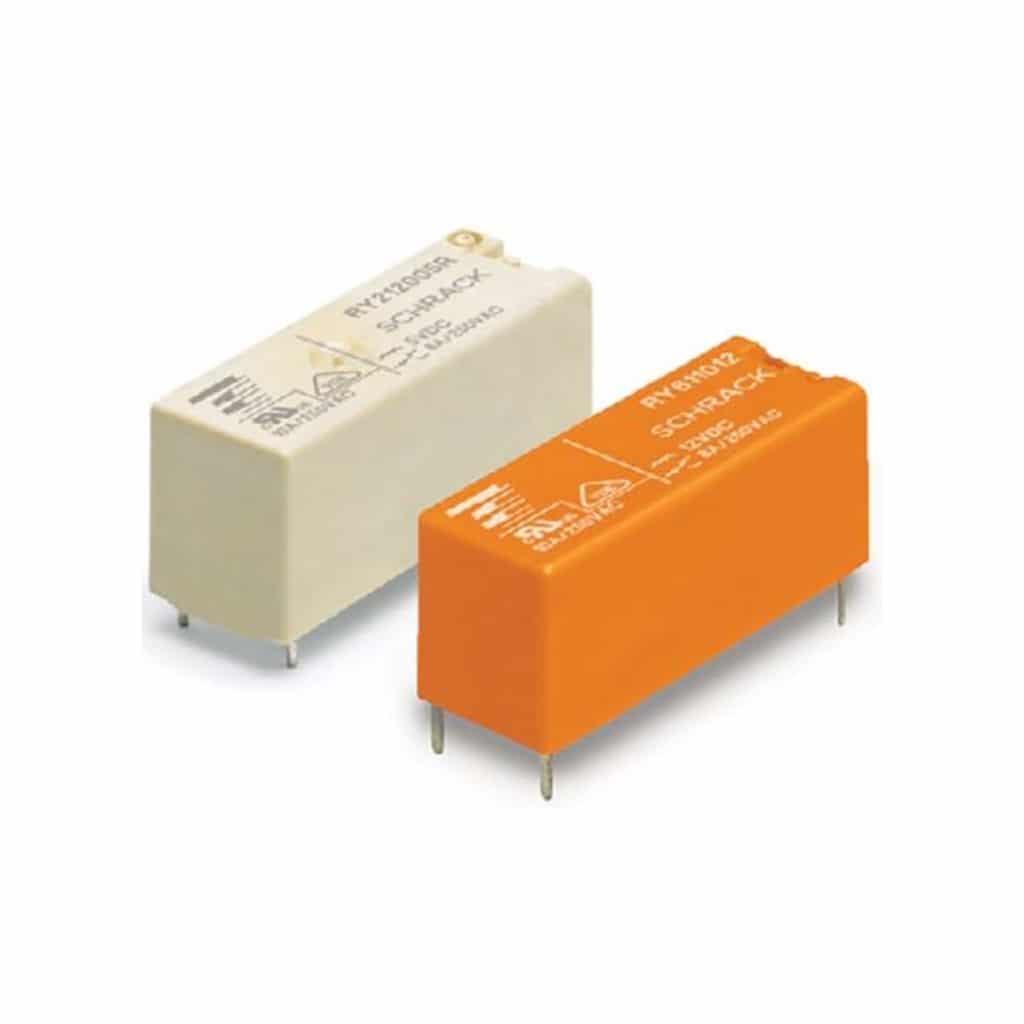

RY is a 12,3mm height relay offering 8amp contacts. Available on 1 form A, B & C contact arrangement.

Please note AgCdO contacts are now obsolete and not for new designs.

  • 1 pole 8A, 1 form C (CO) or 1 form A (NO) or 1 form B (NC) contact
  • Low component height 12.3mm
  • 5kV/8mm coil-contact
  • Reinforced insulation (protection class II)
  • Pinnings: 3.2mm and 5mm
  • Reflow-solderable version
  • Especially suitable for resistive and inductive loads on
    form A (NO) and form B (NC) contacts
  • Plastic materials according to IEC 60335-1 (domestic appliances)
