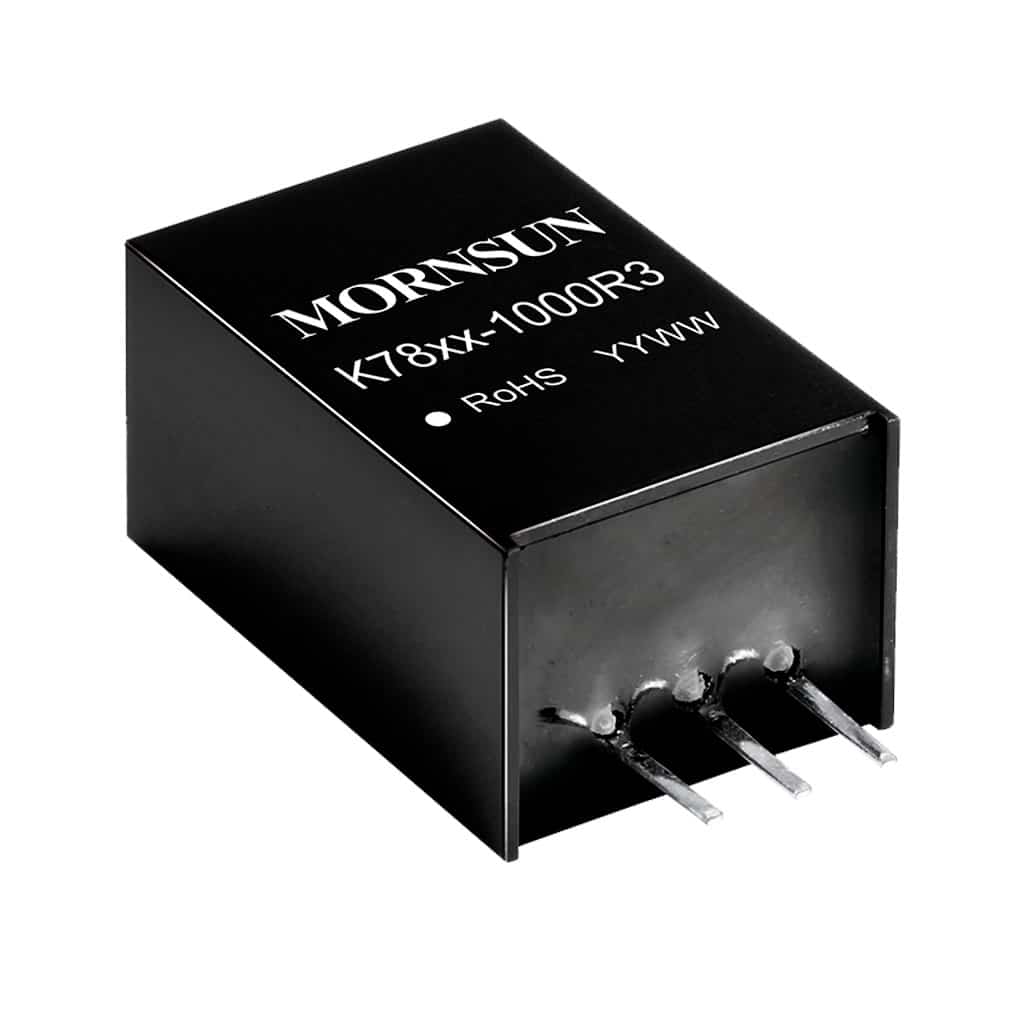

Switching Regulator K78xx-1000R3(L) Series

SKU: K78xx-1000R3 Categories: , , Manufacturer:

Product specs

Weight 3.8 g
Dimensions 11.5 × 9 × 7.5 mm

3.3V, 5V, 9V, 12V, 15V

Input Range

6-36Vdc, 8-36Vdc, 13-36Vdc, 16-36Vdc, 20-36Vdc



Min-Max Tamb (°C)

-40°C, +85°C

Product Description

K78xx-1000R3(L) series are high efficiency switching regulators and ideal substitutes for LM78xx series three-terminal linear regulators. The converters feature high efficiency, low loss, short circuit protection, positive or negative output voltage, and there is no need for a heat sink. These products are widely used in applications such as industrial control, instrumentation and electric power.

①For input voltage exceeding 30 VDC, an input capacitor of 22uF/50V is required;

② L-suffix: Add L-suffix for horizontal mount with 90 degree angled pins (K78xx-1000R3L)

K78xx-1000R3 11.50x 9.00 x17.50 mm

K78xx-1000R3L 19.00 x 11.50x 9.00mm

  • High efficiency up to 96% 
  • No-load input current as low as 0.1mA 
  • Operating ambient temperature range: -40℃ to +85℃ 
  • Support the negative output 
  • Output short-circuit protection 
  • Pin compatible with LM78xx series 
  • IEC60950, UL60950, EN60950 Approval
