Product Description

LTE Cat 4, Cat 1 bis and Cat M1

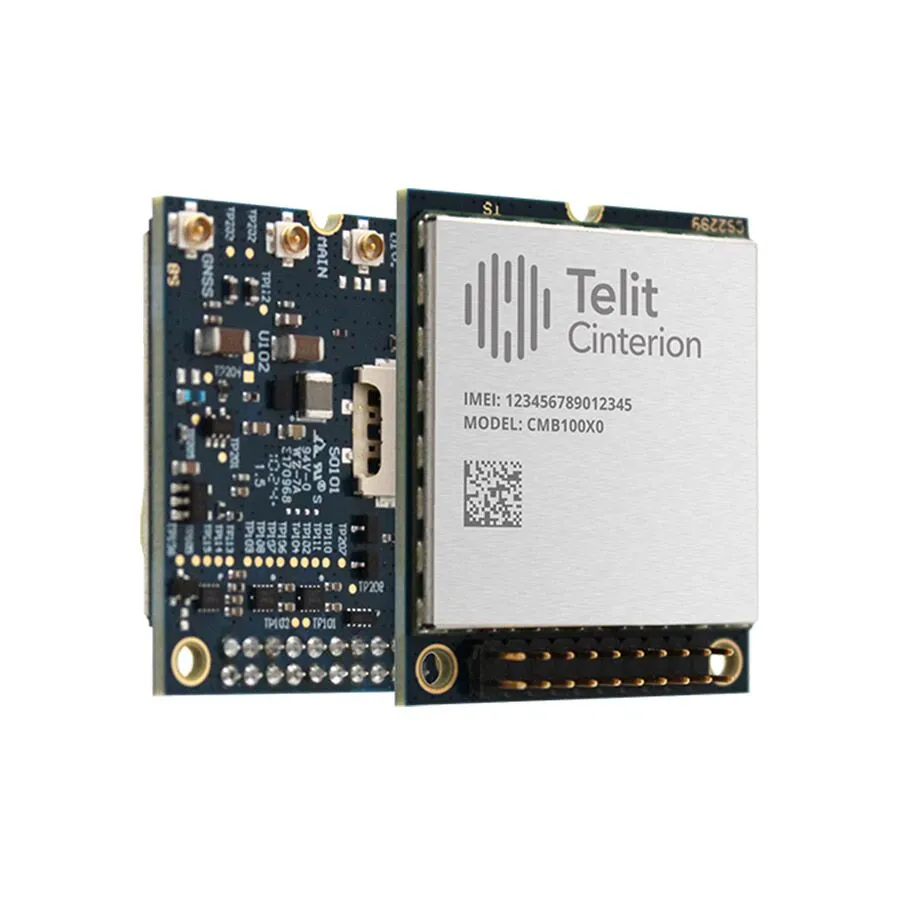

The CMB100 series is Telit Cinterion’s first generation of LTE modules certified for end devices. These modules provide the ability to add reliable LTE connectivity to products while reducing:

Development costs
Certification costs
LTE product development risks
Respins and recertifications for radio changes
Time to market

Form Factor Family

One mechanical and electrical form factor supports Telit Cinterion’s present and future LTE and 5G technologies. Designers looking to add LTE capabilities to commercial and industrial devices benefit from the uniform form factor. The CMB100 eliminates the complexities and challenges of radio frequency (RF) design. Developers don’t need a deep understanding of RF principles and specifications.

Standard mini berg connector with 20 mm pitch
Best-in-class 3GPP Release (Rel) 10 platform
Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user-definable GPIOs
Wide power supply support range (1.8 V* to 5.5 V)
Battery-friendly 8 V GPIO
GPIO level translation for 3 V system
Ideal platform for IoT applications, mobile data and ultracompact computing devices with extended operating temperature range
Internet-friendly with integrated TCP/IP and UDP/IP stacks
Firmware over-the-air (FOTA) updates
FCC/IC and RED certified and device certified with major carriers
2G and 3G fallback and GNSS for accurate location services
