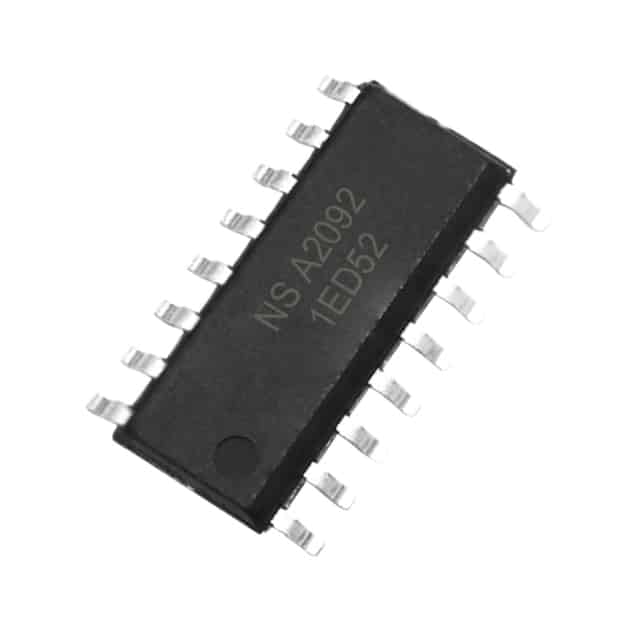

TNSA2092 Class D Audio Amplifier Driver
Product specs
| Package | SOIC16 (S) |
|---|---|
| External Reference Voltage | 5V |
| Noise Immunity | > 50 V/ns |
| Temperature Range | -40 ℃ ~125 ℃ |
| Output Power | 500W |
| Switching Frequency | 800kHz |
Product Description
The TNSA2092 is a high voltage, high performance Class D audio amplifier driver with PWM modulator and protection. Whilst designed for Class D audio amplifier systems that require large output power, this device is also ideal for motor control, air conditioning and general purpose Inverter applications.
Key Features
- Error Amplifier Open Loop gain >60dB
- High Noise Immunity >50V/ns
- Operates up to 800KHz
- Wide Temperature Range -40C to +125C
- Up to 500W output power
