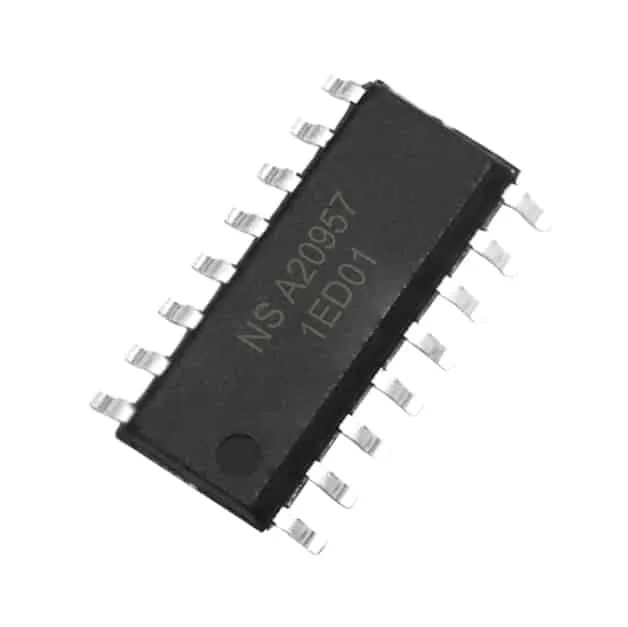

TNSA20957 Class D Audio Amplifier MOSFET Driver

SKU: TNSA20957 Category: Manufacturer:

Product specs


SOIC16 (S)

External Reference Voltage


Noise Immunity

> 50 V/ns

Temperature Range

-40 ℃ ~125 ℃

Output Power


OC Protection Delay (max):


Product Description

The TNSA20957 is a high voltage, high speed MOSFET driver with a floating PWM input designed for Class D audio amplifier applications. This device is ideal for home theatre systems, powered speaker systems and general purpose audio power amps.

Key Features

  • Floating PWM input
  • High Noise Immunity >50V/ns
  • Operates up to 800KHz
  • Wide Temperature Range -40C to +125C
  • Up to 500W output power
