1.5mm2 – Spring Cage – WS1.5 – Din-Rail Series
Product specs
| Dimensions | N/A |
|---|---|

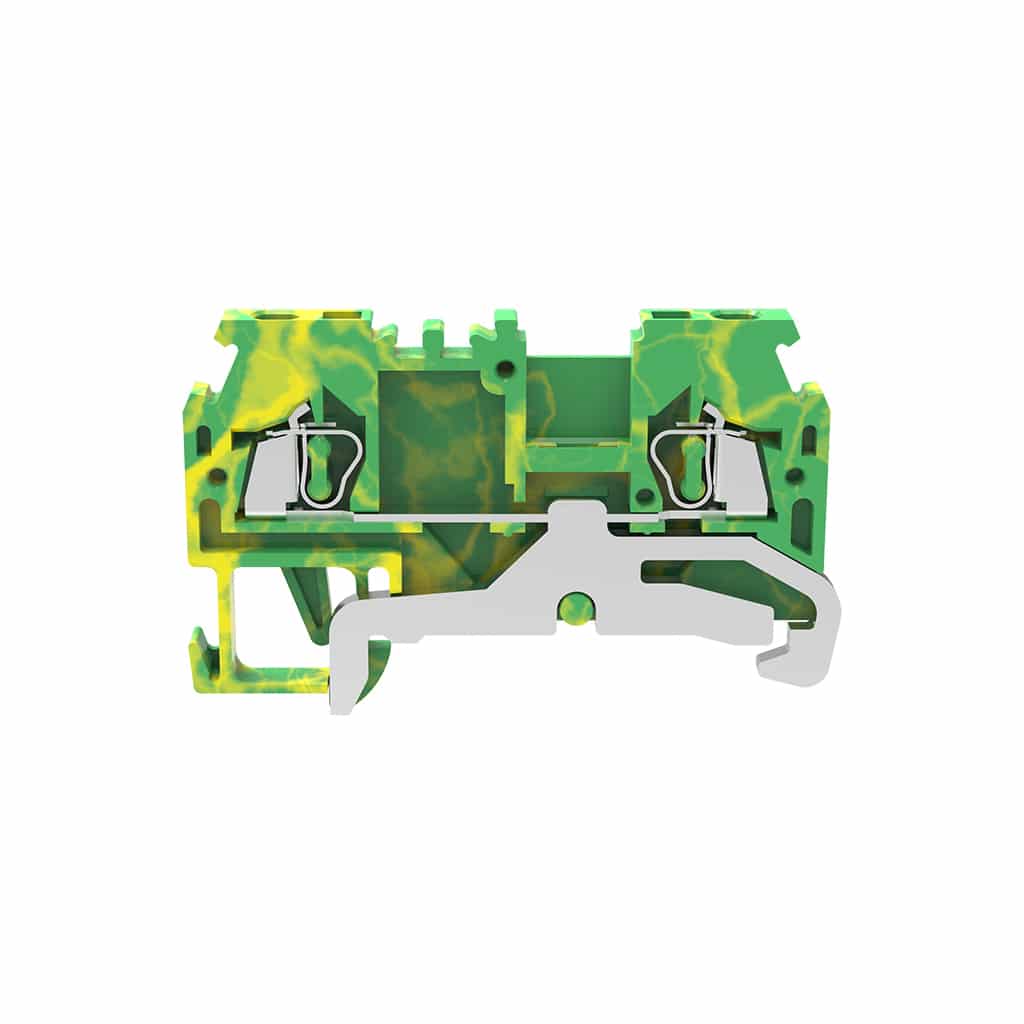

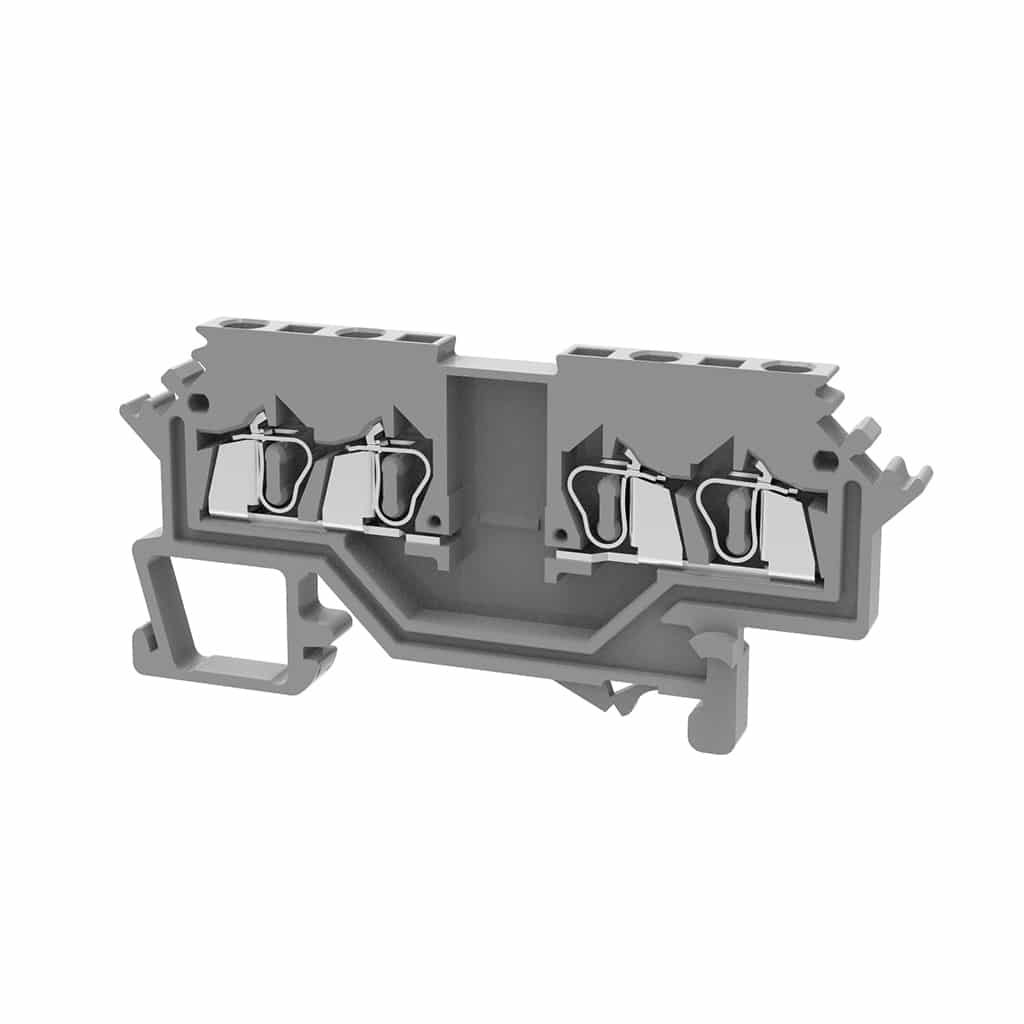

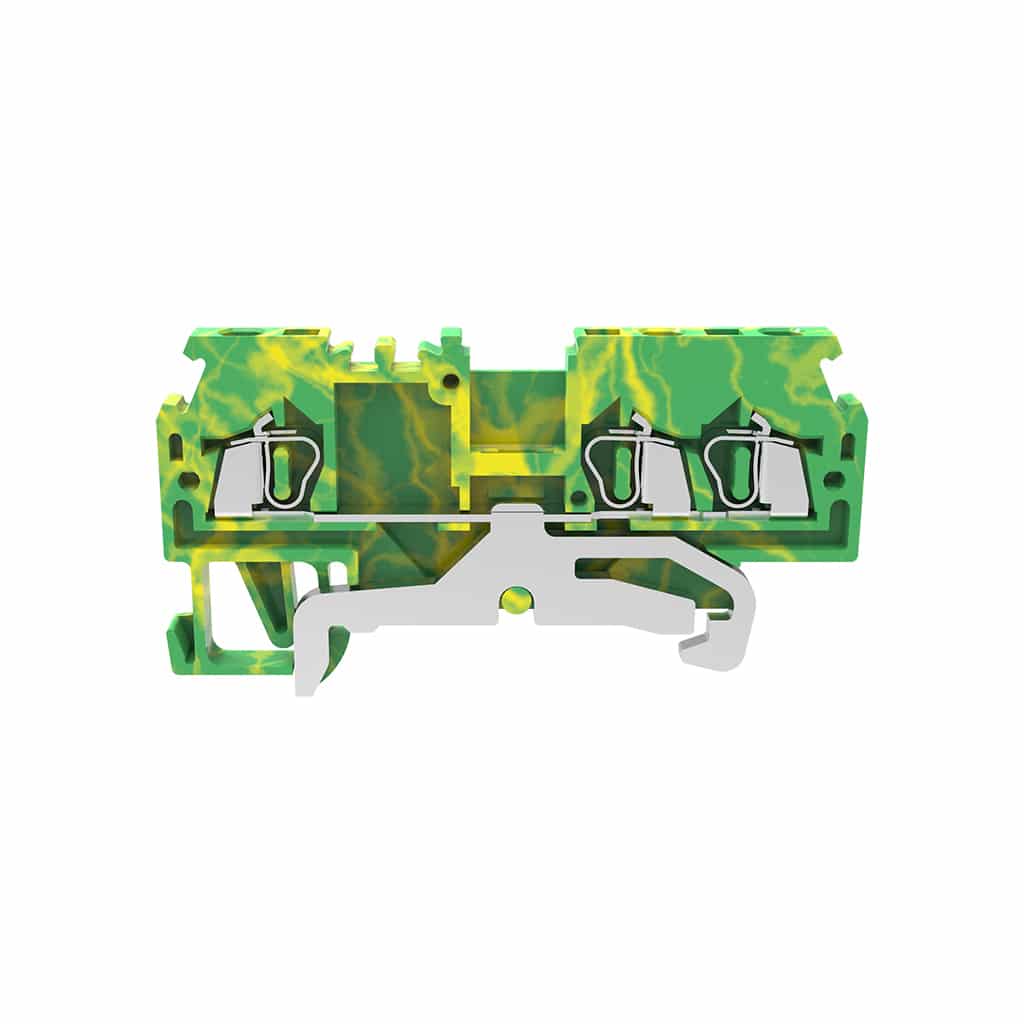

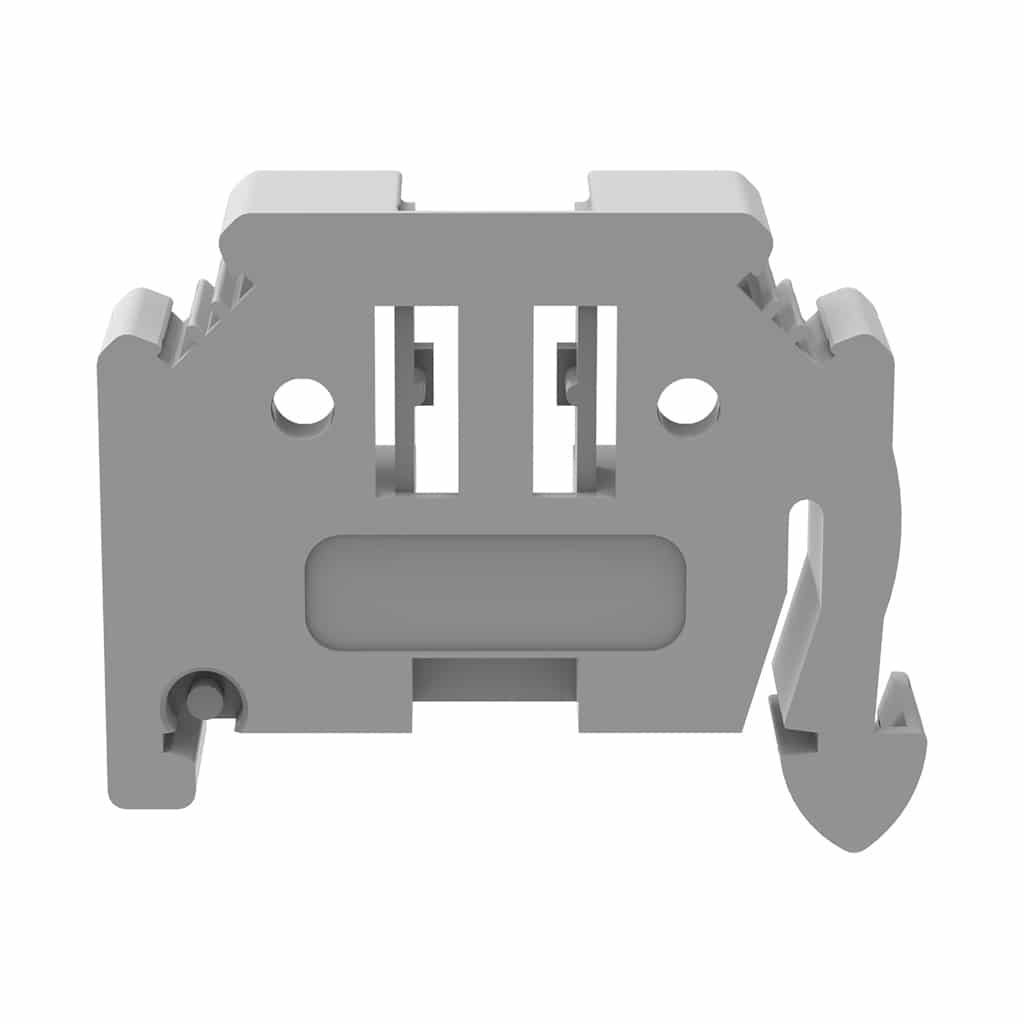

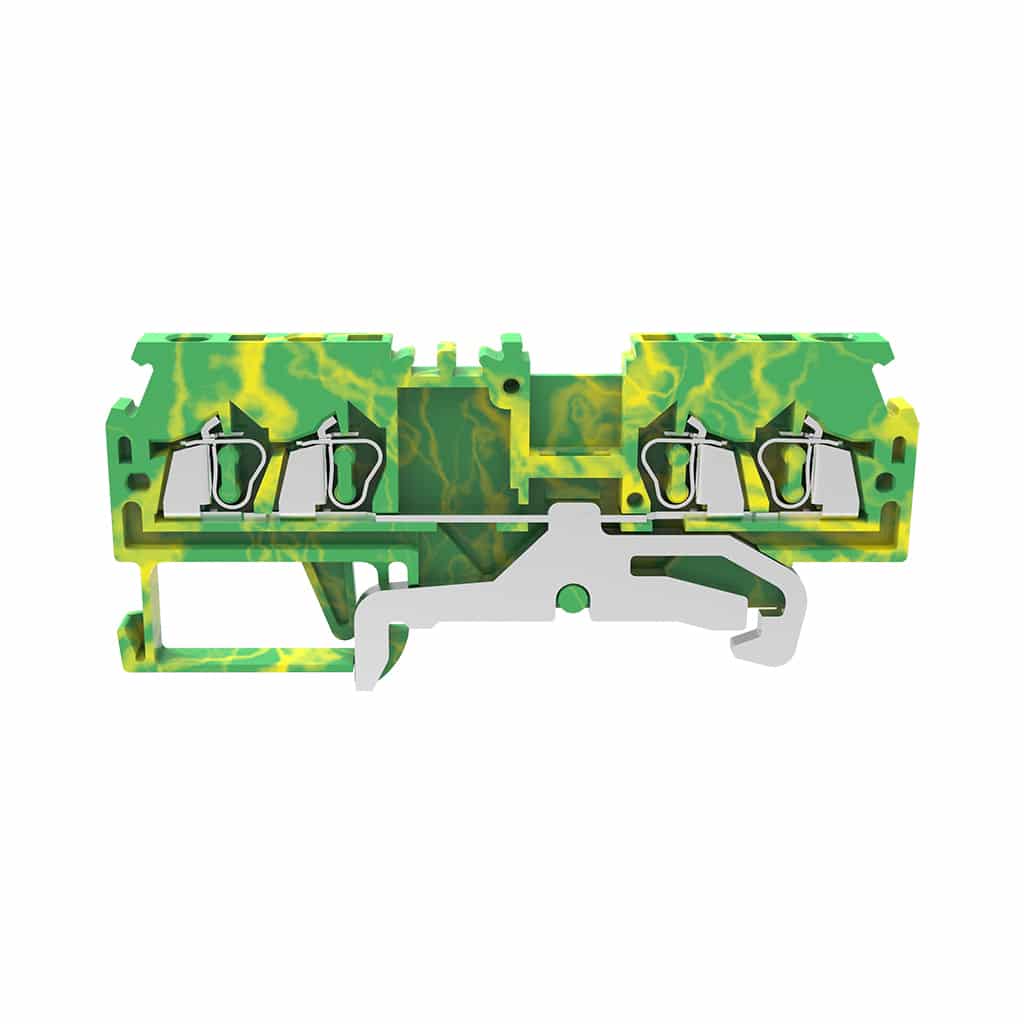

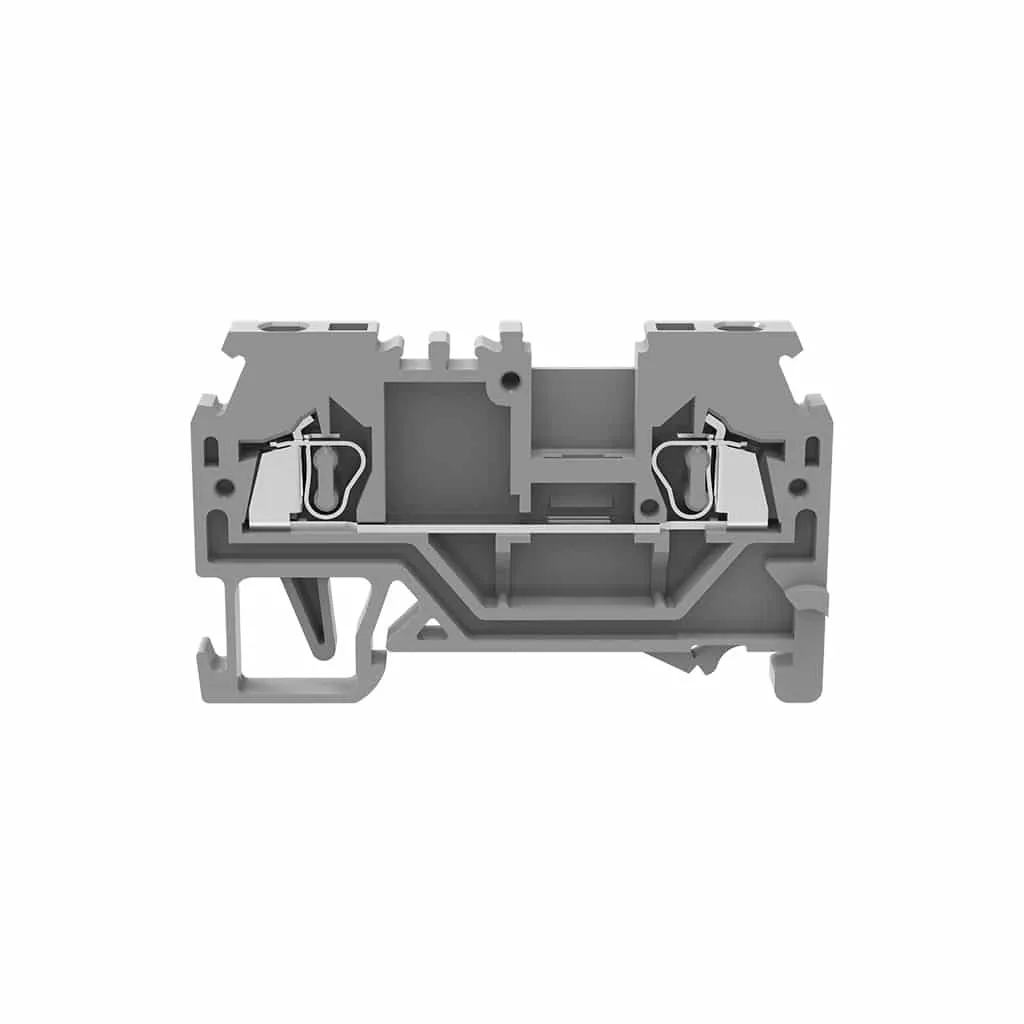

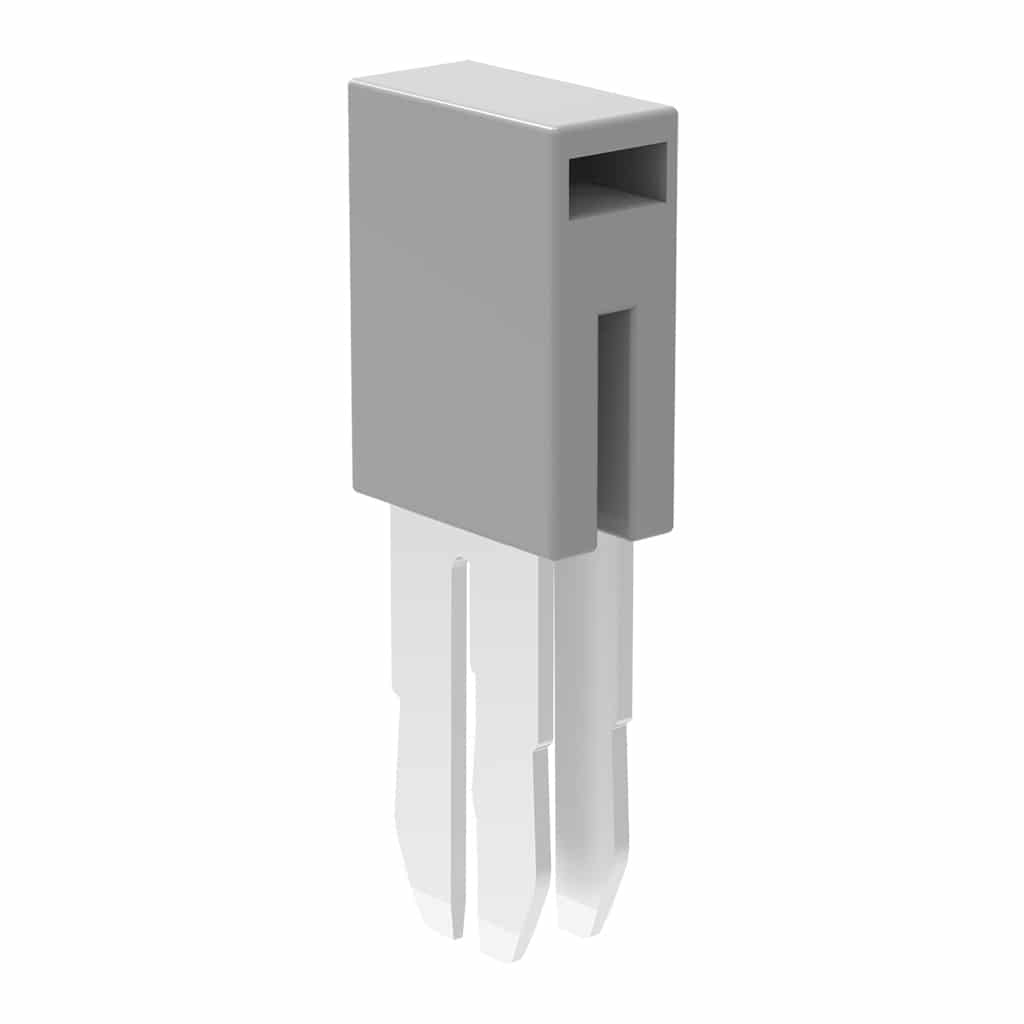

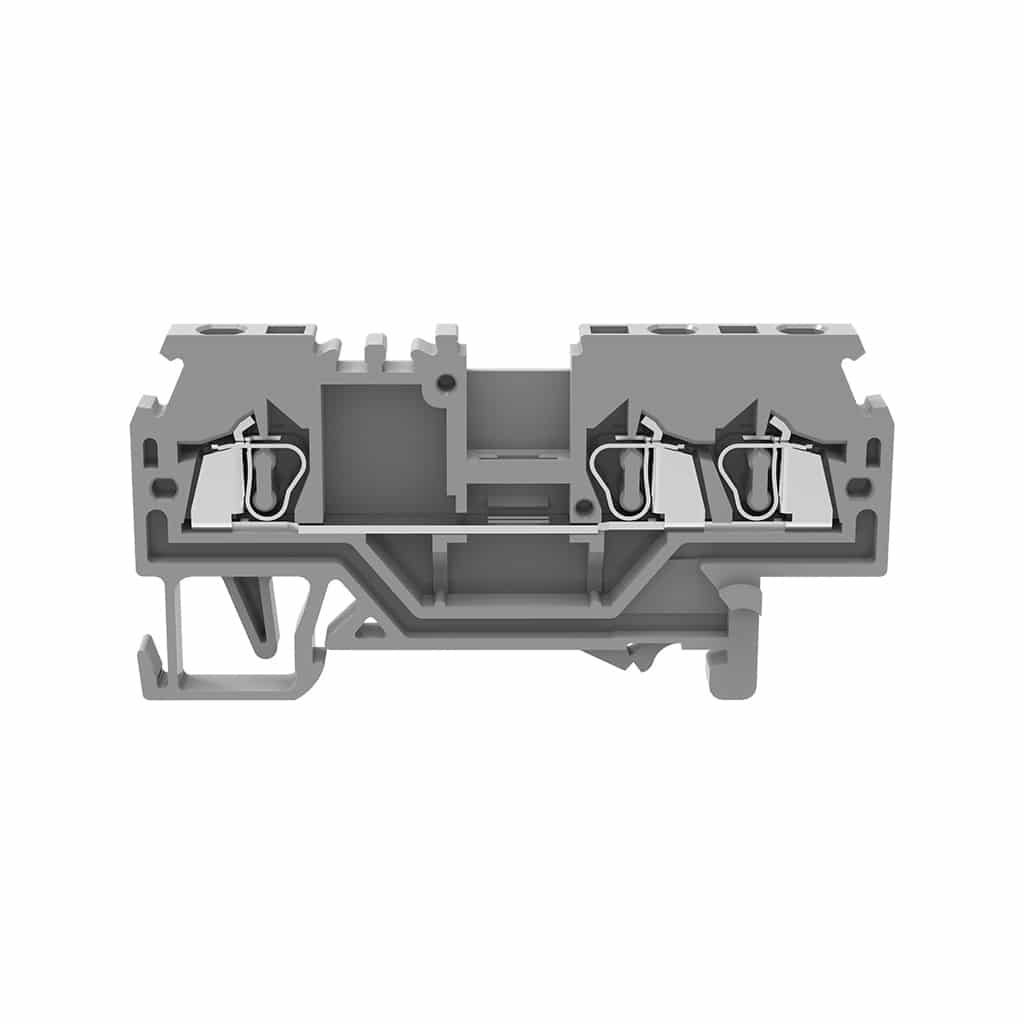

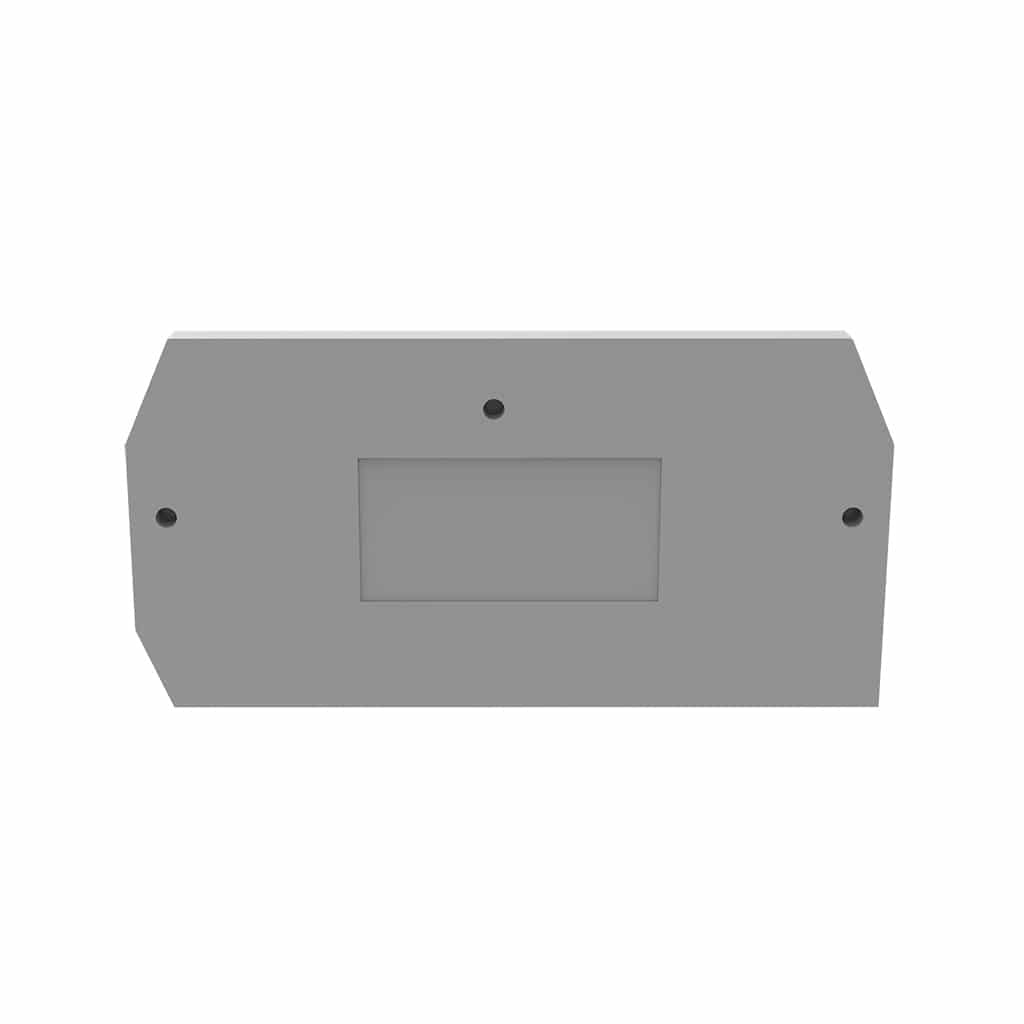

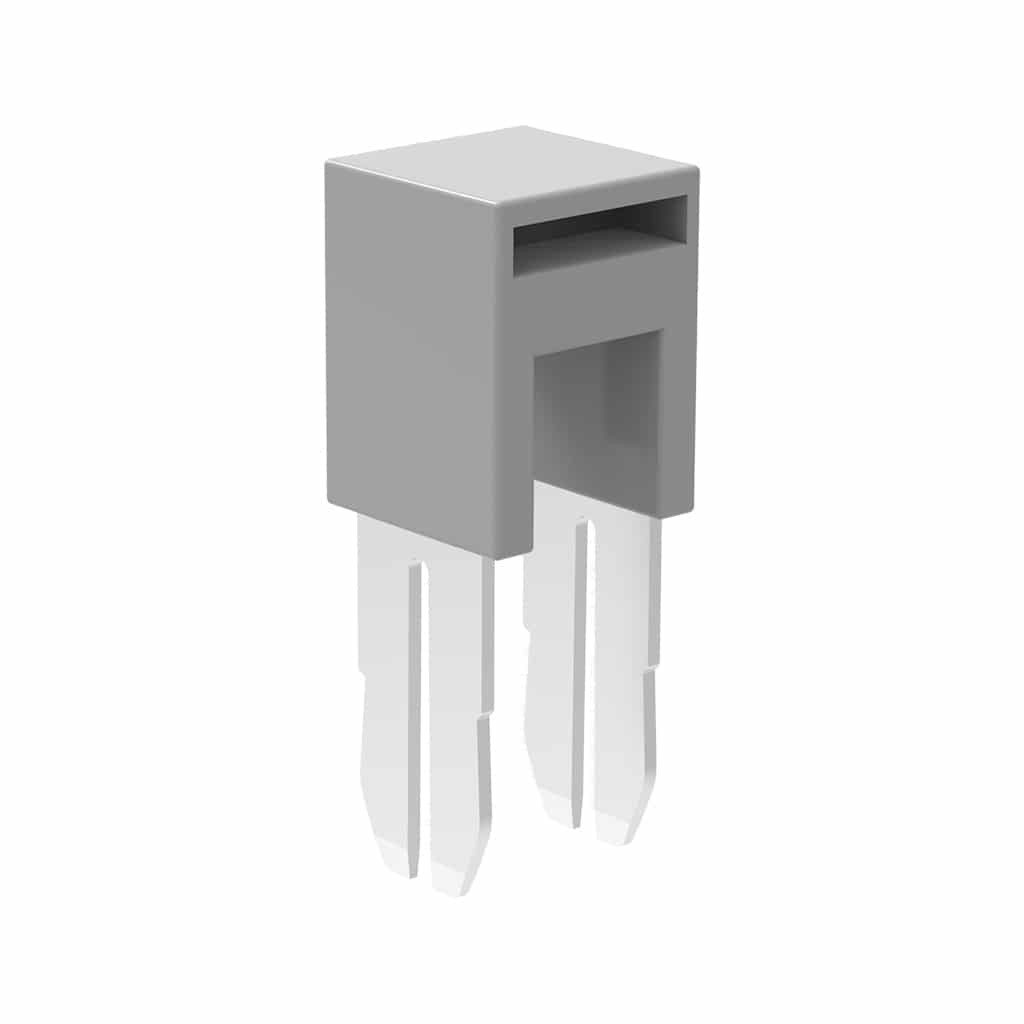

| Description | 1.5mm2 Earth, 1.5mm2 Grey, 2 Way Jumper, Blank Marking Tab, End Piece for WS1.5, End Piece For WS1.5-QU, End Piece For WS1.5-SD, End Piece For WS1.5-TW, End Stop |
| VDE/CE Ratings | 0.2-1.5mm2 18a @ 800V, 0.2-1.5mm2 |
| UL Ratings | 16-28awg, 16-28awg 10a @ 600V |
| Number of Positions | 2, 3, 4, 10 |
| Colour | Grey, Yellow/Green, Red, Blue, Black |
| Approvals | CE, CE, UL |
Product Description

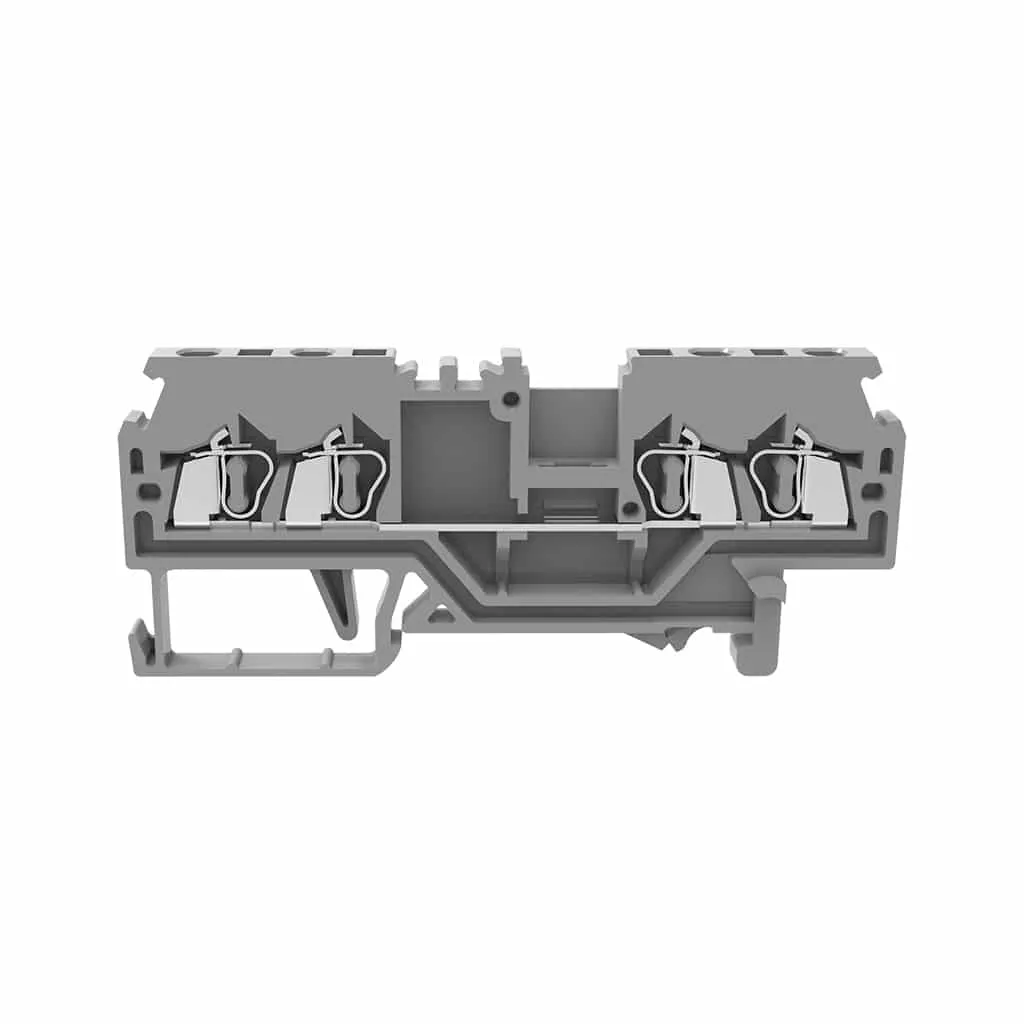

WS1.5 series is a Spring Cage Type Din-Rail connector from Degson offering upto 1.5mm2 Cable entry. Product is available in multiple colours upon request. WS1.5 series are PA66 material offering the highest V0 flammability rating.
- 1.5mm2
- Spring Cage
- Flammability Rating -V0
- Temperature – -40 + 105C
- Material PA66
- Other colours available on request
