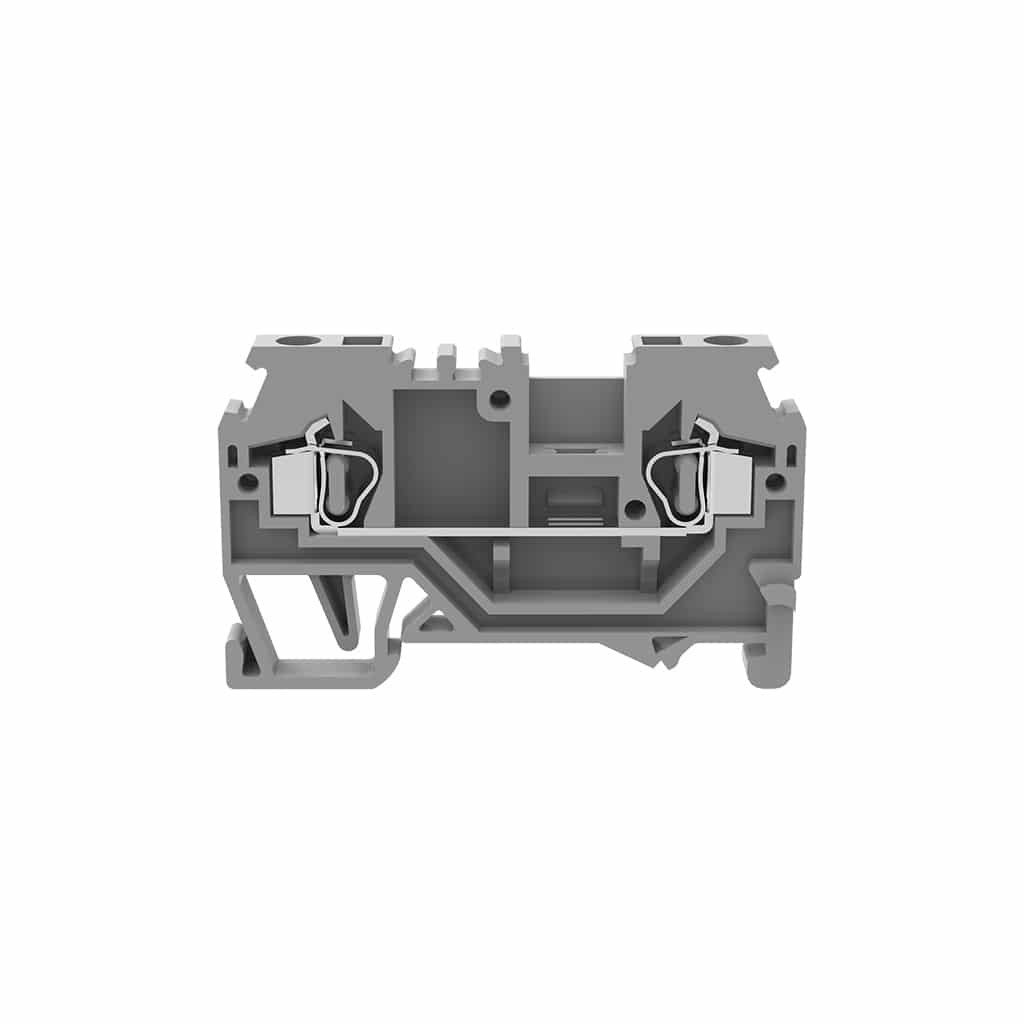

2.5mm2 – Spring Cage – WS2.5 – Din-Rail Series

SKU: WS2.5 Category: Manufacturer:

Product specs

Dimensions N/A
Description

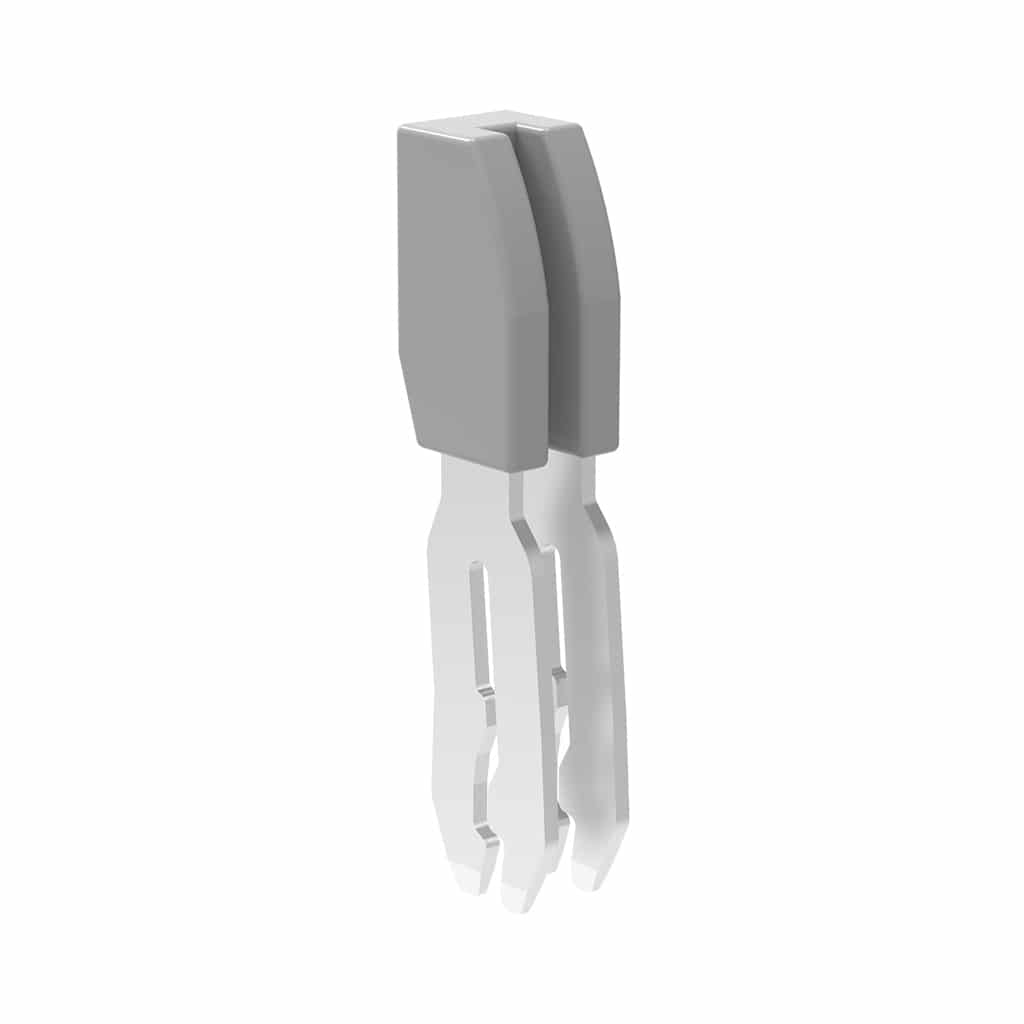

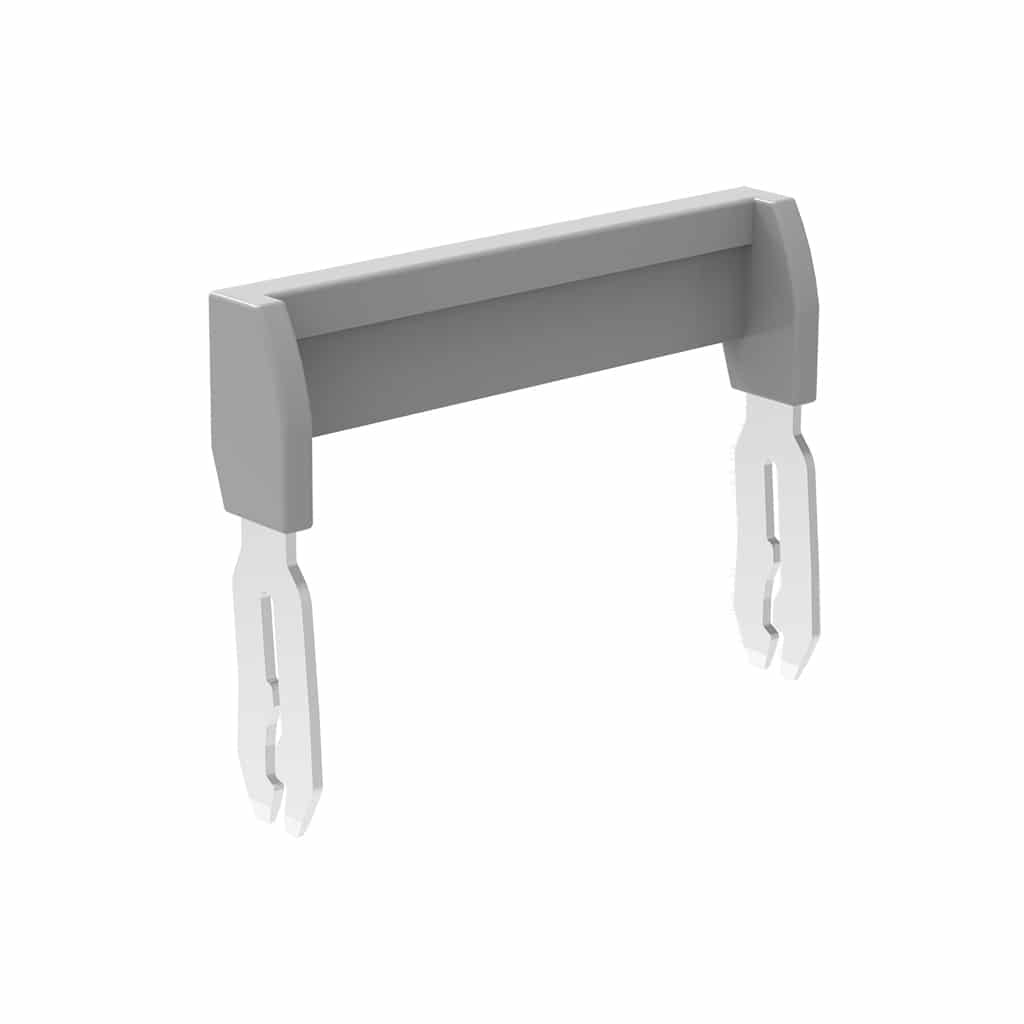

2 Way Jumper, 2.5mm2 Earth Connector, 2.5mm2 Grey Connector, Blank Marking Tab, End piece for WS2.5-QU,WS2.5-QU-PE, End piece for WS2.5-SD,WS2.5-SD-PE, End piece for WS2.5-TW,WS2.5-TW-PE, End piece for WS2.5,WS2.5-PE, End Stop
VDE/CE Ratings

0.2-2.5mm2 24a @ 800V, 0.2-2.5mm2
UL Ratings

12-28awg, 12-28awg 15a @ 600V, 14-28awg, 14-28awg 15a @ 600V
Number of Positions

2, 3, 4, 10
Colour

Grey, Yellow/Green, Red, Blue, Black
Approvals

CE, CE, UL

Product Description

WS2.5 series is a Spring Cage Type Din-Rail connector from Degson offering upto 2.5mm2 Cable entry. Product is available in multiple colours upon request. WS2.5 series are PA66 material offering the highest V0 flammability rating.

  • 2.5mm2
  • Spring Cage
  • Flammability Rating -V0
  • Temperature – -40 + 105C
  • Material PA66
  • Other colours available on request
