16mm2 – Screw Type – DC16 – Din-Rail Series
Product specs
| Dimensions | N/A |
|---|---|

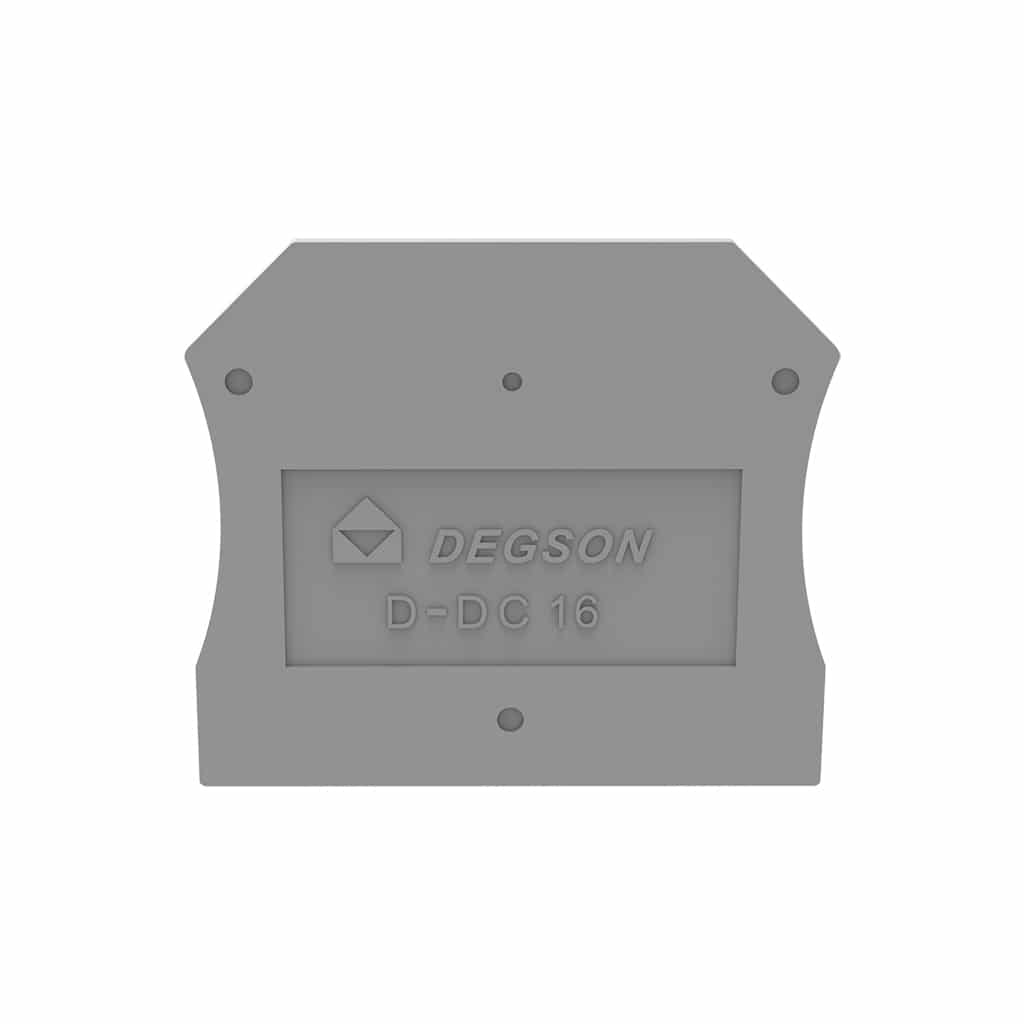

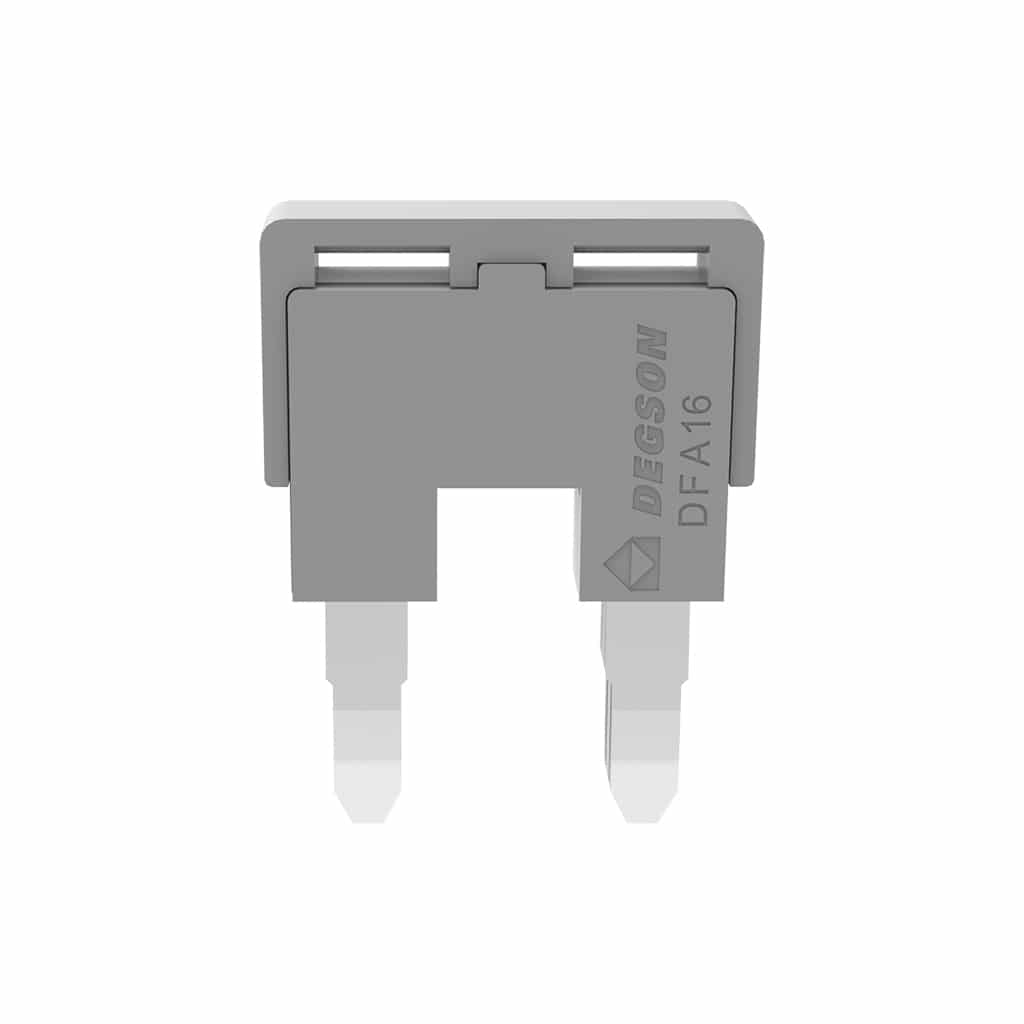

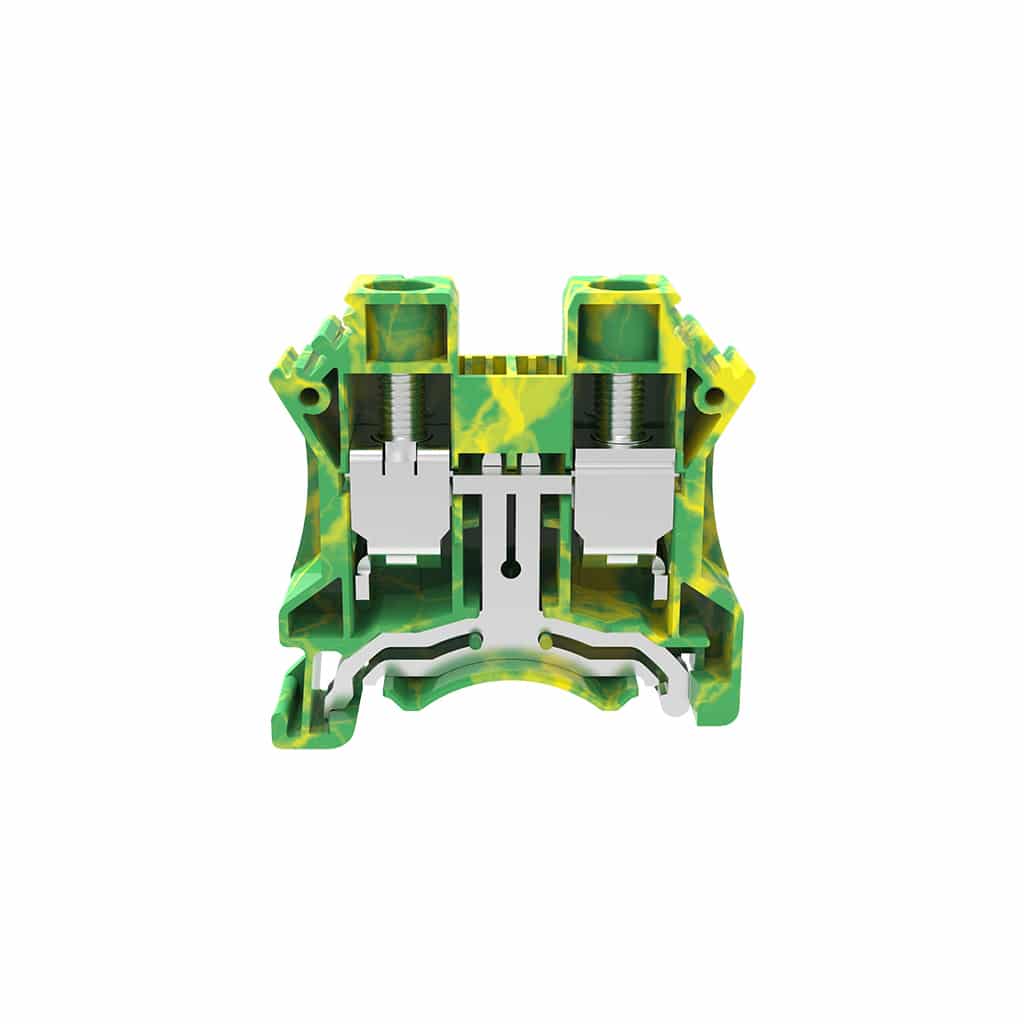

| Description | 16mm2 Earth Connector, 16mm2 Grey Connector, 2 Way Jumper, Blank Marking Tab, End Stop, Grey End Piece |
| UL Ratings | 3-14awg, 3-14awg 100a @ 600V |
| VDE/CE Ratings | 1.5-25mm2, 1.5-25mm2 76a @ 1000V |
| Number of Positions | 2, 10 |
| Colour | Grey, Yellow/Green, Red, Blue, Black |
| Approvals | CE |
Product Description

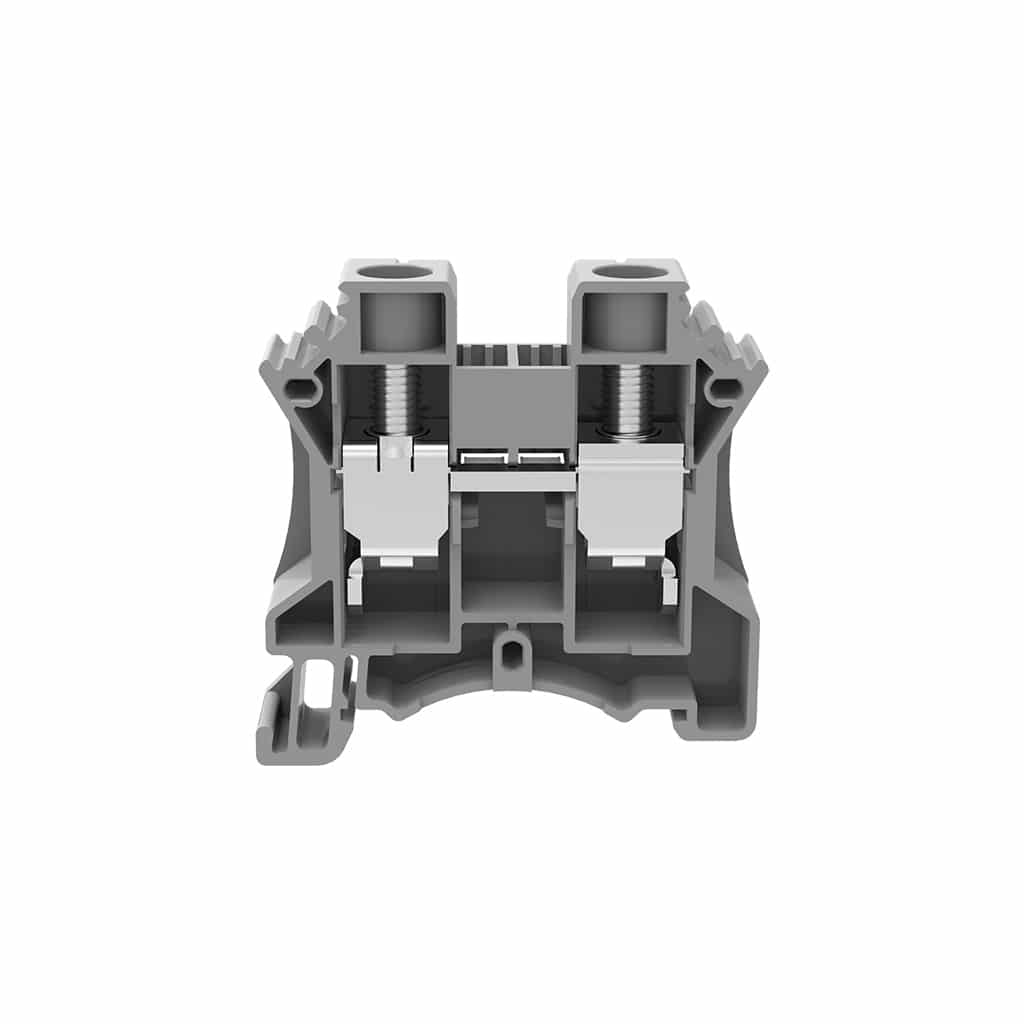

DC16 series is a Screw Type Din-Rail connector from Degson offering 16mm2. Product is available in multiple colours upon request. Dc16 are PA66 material offering the highest V0 flammability rating.
- 16mm2
- Flammability Rating -V0
- Temperature – -40 + 105C
- Material PA66
- Other colours available on request
