2SMPB-02B

SKU: 2SMPB-02B Categories: , , Manufacturer:

Product Description

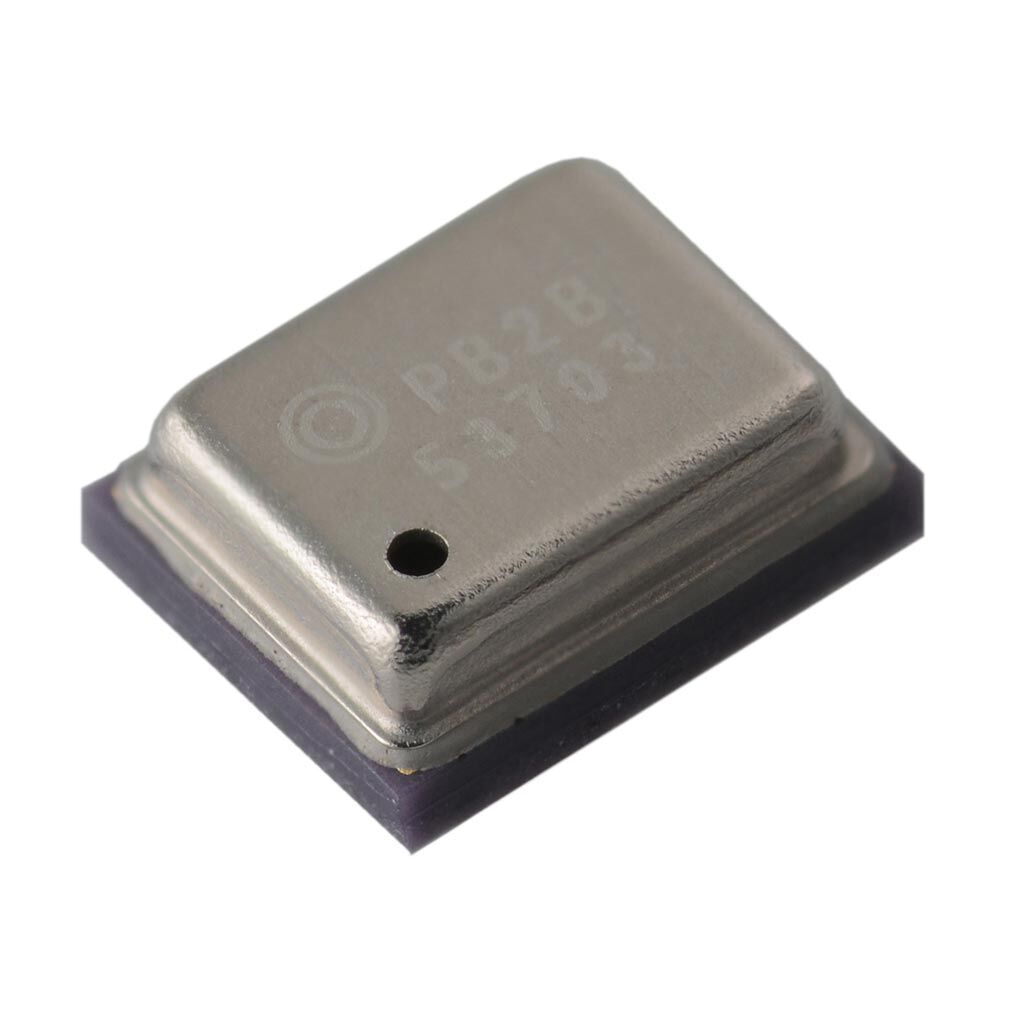

The 2SMPB-02B is a high accuracy, small sized barometric pressure sensor with low current consumption. It measures barometric pressure and temperature with a high level of accuracy of ±0.6Pa. This device has digital control and output via I2C/SPI interface





  • Type of Pressure: Absolute Pressure
  • Medium: Air
  • Operating Pressure Range: 30kPa to 110kPa
  • Structure: LGA (9 pin)
  • Power Supply Voltage: 4V
  • Maximum Pressure: 800 kPa
  • Measure barometric pressure and temperature with high accuracy.
  • Built in low noise 24 bit ADC.
  • Digital control and output via I2C/SPI interface
  • Automatically power down non-working circuit
    to minimize power consumption.
  • Individual calibration parameters stored in OTP*
    * One Time Programmable – ROM
