EE-SX1046

SKU: EE-SX1046 Categories: , Manufacturer:

Product specs

Emitter: Forward Current

50mA

Emitter: Pulse Forward Current

1A

Emitter: Reverse Voltage

4V

Detector: Collector-Emitter-Voltage

30V

Detector: Collector Current

20mA

Detector: Collector Dissipation

100mW

Temperature Range

-25°C to +85°C

Product Description

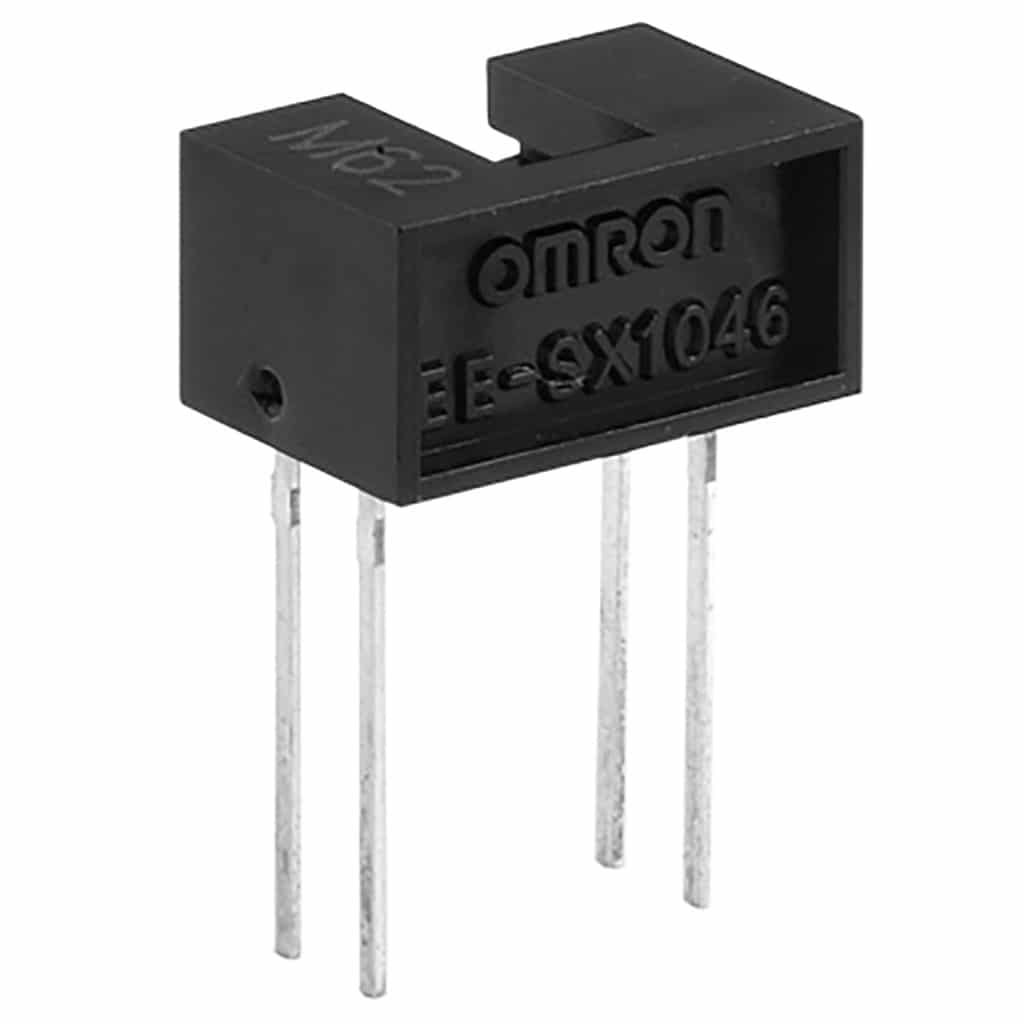

The EE-SX1046 from Omron is a Photomicrosensor with a horizontal sensing aperture. It is a PCB mounting type and is high resolution with a 0.5mm wide aperture

  • Horizontal Sensing Aperture
  • 0.5mm Wide Aperture
  • Emitter Forward Current: 50mA
  • Emitter Pulse Forward Current: 1A
  • Emitter Reverse Voltage: 4V
  • Detector Collector-Emitter Voltage: 30V
  • Detector Collector Current: 20mA
  • Detector Collector Dissipation: 100mW
  • Operating Temperature: -25C to +85C
  • Storage Temperature: -30C to +100C
  • Soldering Temperature: +260C
