D6F-A1

D6F-A1

SKU: D6F-A1 Categories: , , Manufacturer:
Download PDF

Product specs

Weight 12.8 g
Applicable Gas

Air
Flow Rate

0~1L/min, 0~2L/min
Power Supply (Vdc)

10.8~26.4 Vdc
Voltage Output Signal

Analog 1-5 Vdc
Connect

Bamboo Connect

Product Description

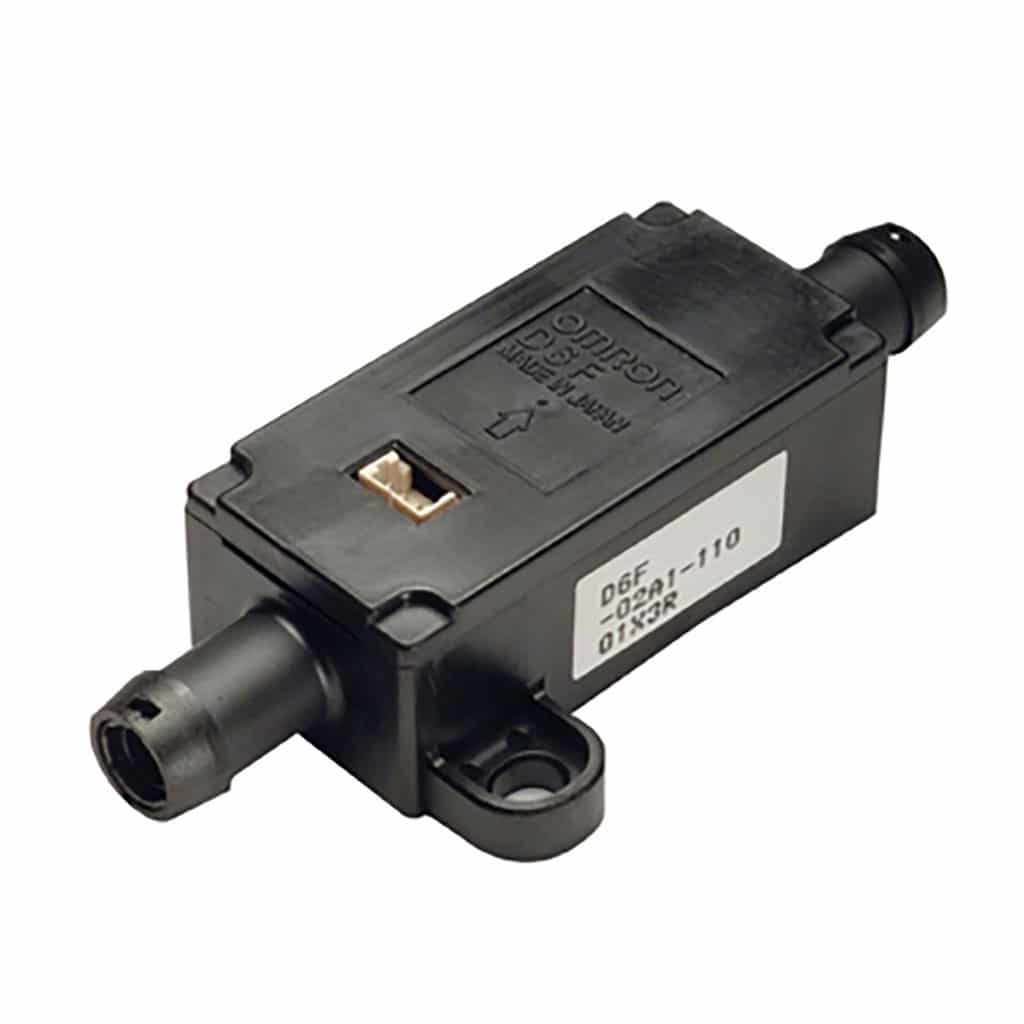

The D6F-A1 MEMS flow sensor series from Omron is a compact, high accuracy sensor family that measures low flow rates. It allows for flow rates to be measured without being affected by temperature or pressure, with an accuracy of ±3% FS

  • Calibration Gas: Air
  • Flow Port Type: Bamboo Joint (max. outside diameter 8.6mm, min. outside diameter 7.4mm)
  • Electrical Connection: 3 Pin Connector
  • Power Supply: 10.8 to 26.4 VDC
  • Current Consumption: 15mA (with no load)
  • Accuracy: ±3% FS
  • Case: PPS
  • Protection: IP40 (excluding tubing sections)
  • Operating Temperature: -10°C to +60°C
  • Storage Temperature: -40°C to +80°C
  • Weight: 12.8g
