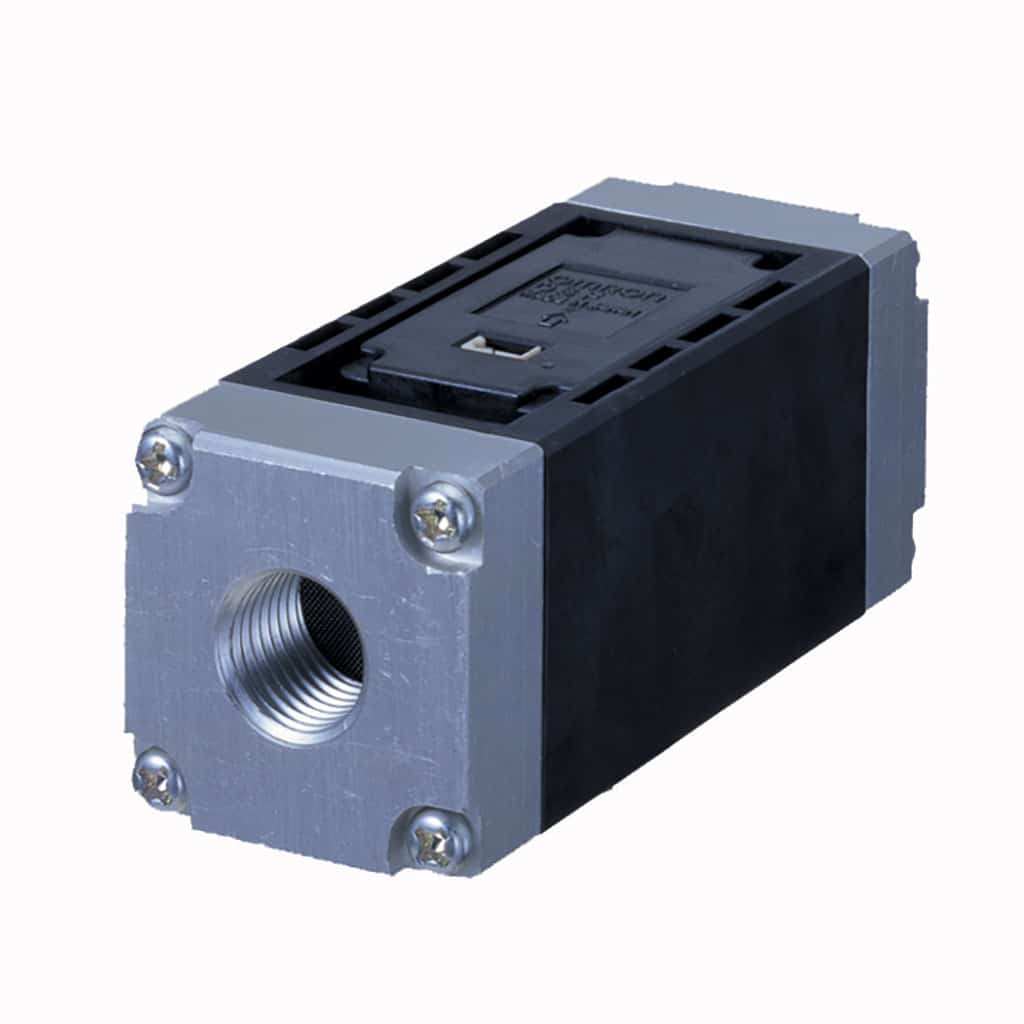

D6F-A6

SKU: D6F-A6 Categories: , , Manufacturer:
Download PDF

Product specs

Weight 103 g
Dimensions 78 × 30 × 30 mm
Applicable Gas

Air
Flow Rate

0~10L/min, 0~20L/min, 0~50L/min
Power Supply (Vdc)

10.8~26.4 Vdc
Voltage Output Signal

Analog 1-5 Vdc
Connect

NPT 1/8 Screw, Rc 1/4 Screw

Product Description

The D6F-A6 MEMS flow sensor series from Omron is a family of high accuracy sensors with a compact body that allows for flow rates from 10L to 50L/min.

  • Calibration Gas: Air
  • Flow Port Type: RC1/4 Thread or NPT1/8 Thread
  • Electrical Connection: 3 Pin Connector
  • Power Supply: 10.8 to 26.4 VDC
  • Current Consumption: 15mA (with no load)
  • Accuracy: ±3% FS
  • Case: PPS/aluminium alloy
  • Protection: IP40 (excluding tubing sections)
  • Operating Temperature: -10°C to +60°C
  • Storage Temperature: -30°C to +80°C
  • Weight: 103g
