This product is currently out of stock and unavailable.

SKU: EE-SX4070 Categories: , Manufacturer:

Product specs

Emitter: Forward Current


Emitter: Reverse Voltage


Temperature Range

-40°C to +75°C

Product Description

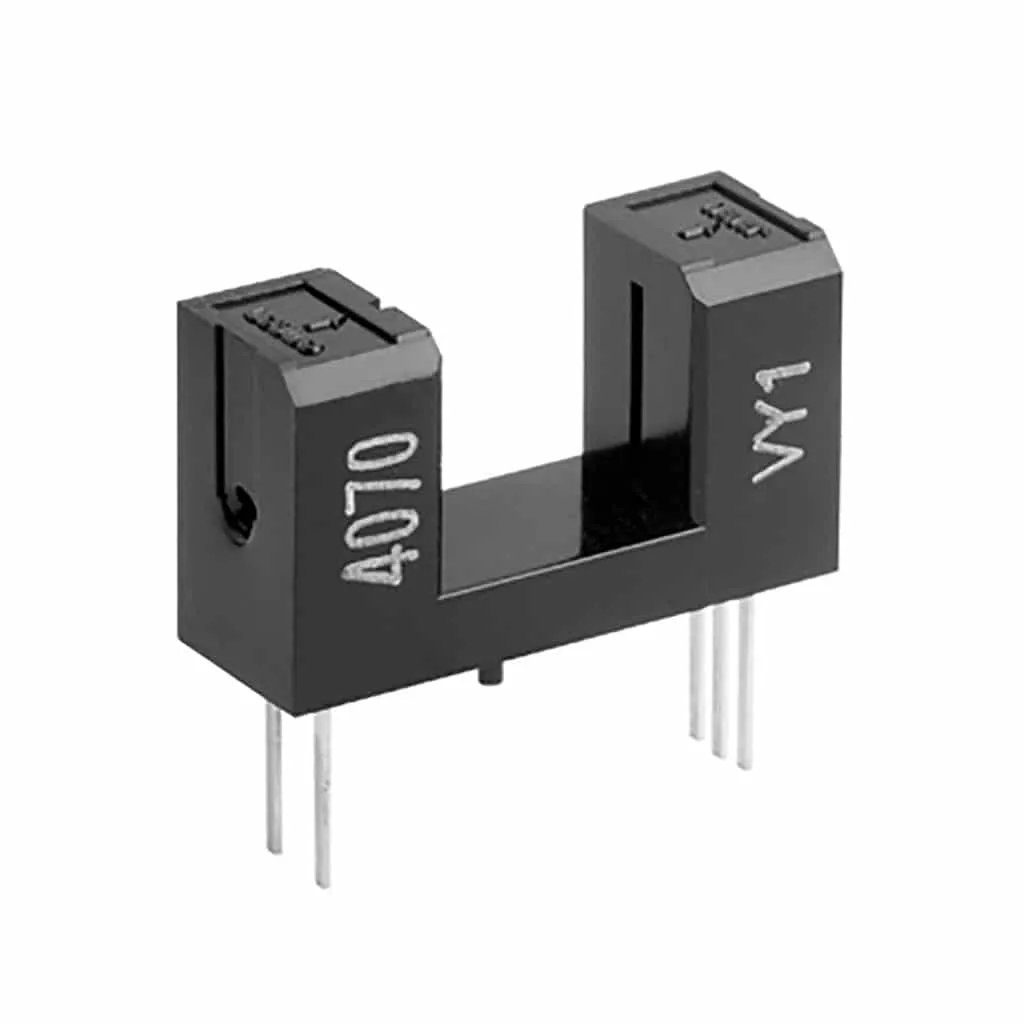

The EE-SX4070 from Omron is a Photomicrosensor with an integrated IC that has a built-in detector element and amplifier. It has a wide supply voltage range of 4.5V to 16V, and also directly connects with C-MOS and TTL. This device has a 0.5mm wide sensing aperture

  • 8.0mm Slot
  • 0.5mm Wide Aperture
  • Emitter Forward Current: 50mA
  • Emitter Reverse Voltage: 4V
  • Detector Power Supply: 16V
  • Detector Output Voltage: 28V
  • Detector Output Current: 16mA
  • Permissible Output Dissipation: 250mW
  • Operating Temperature: -40C to + 75C
  • Storage Temperature: -40C to +85C
  • Soldering Temperature: +260C
