2.5mm2 – Screw Type – DC2.5 – Din-Rail Series
Product specs
| Dimensions | N/A |
|---|---|

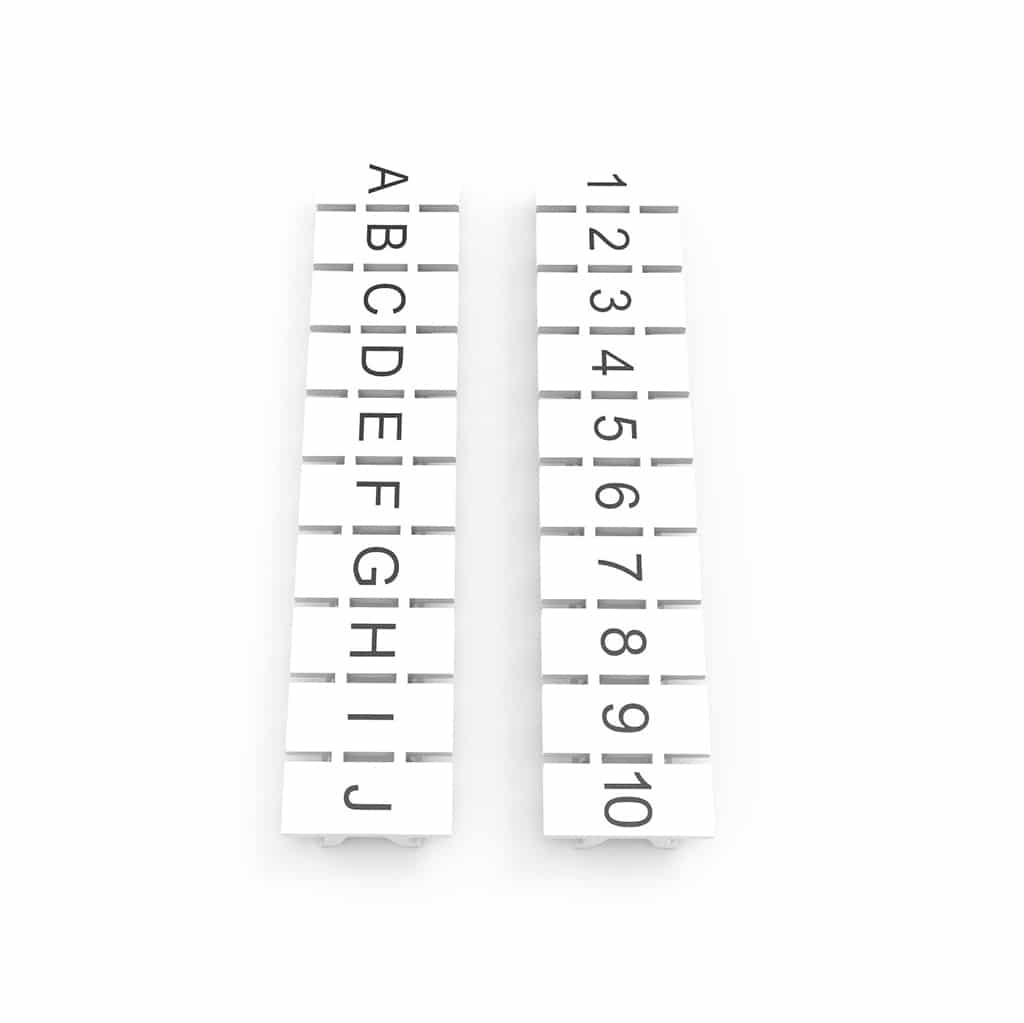

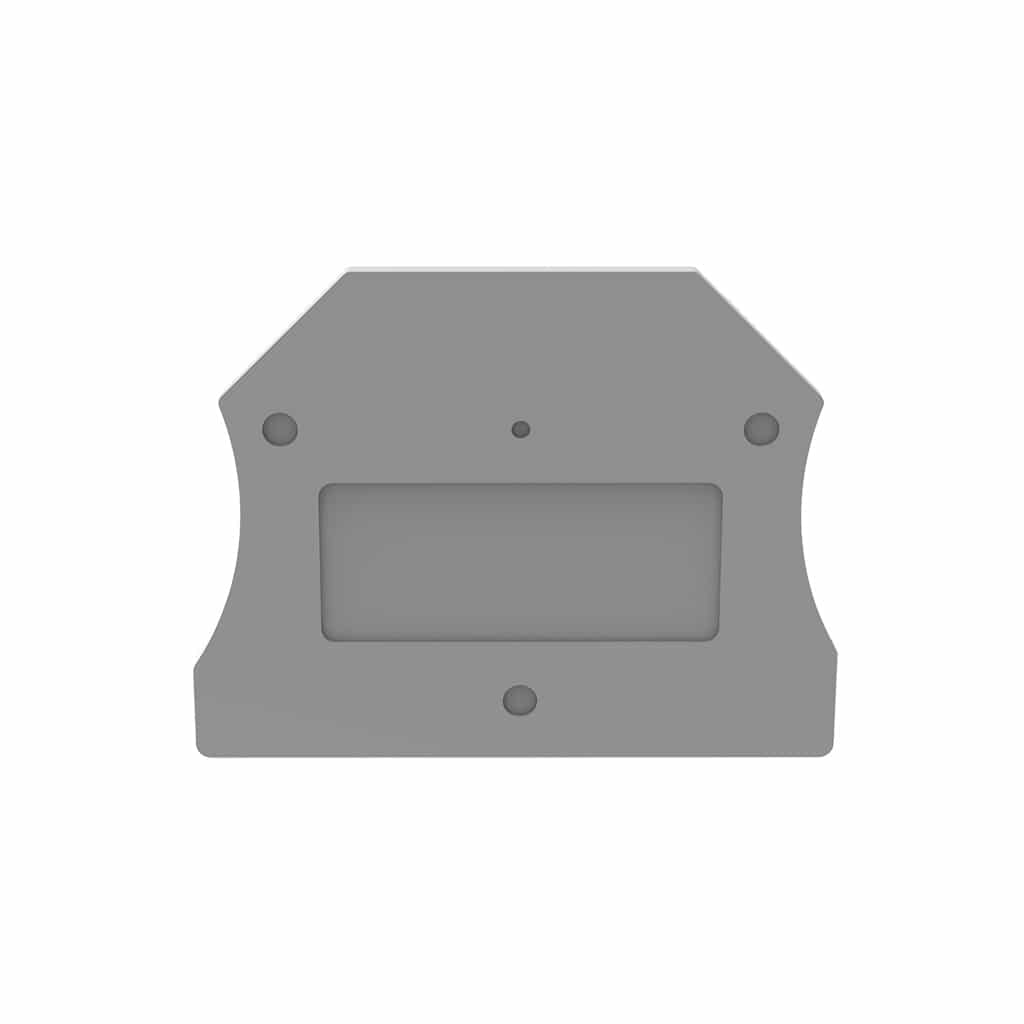

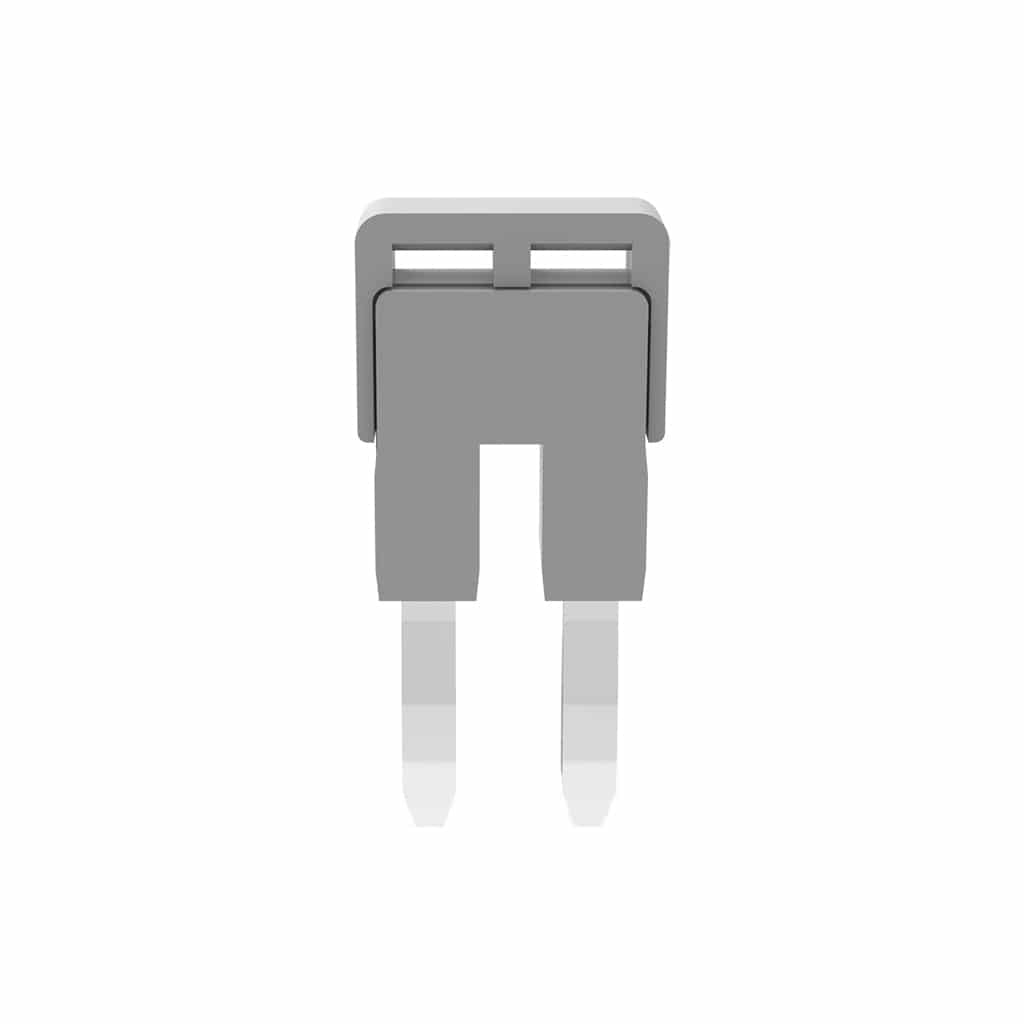

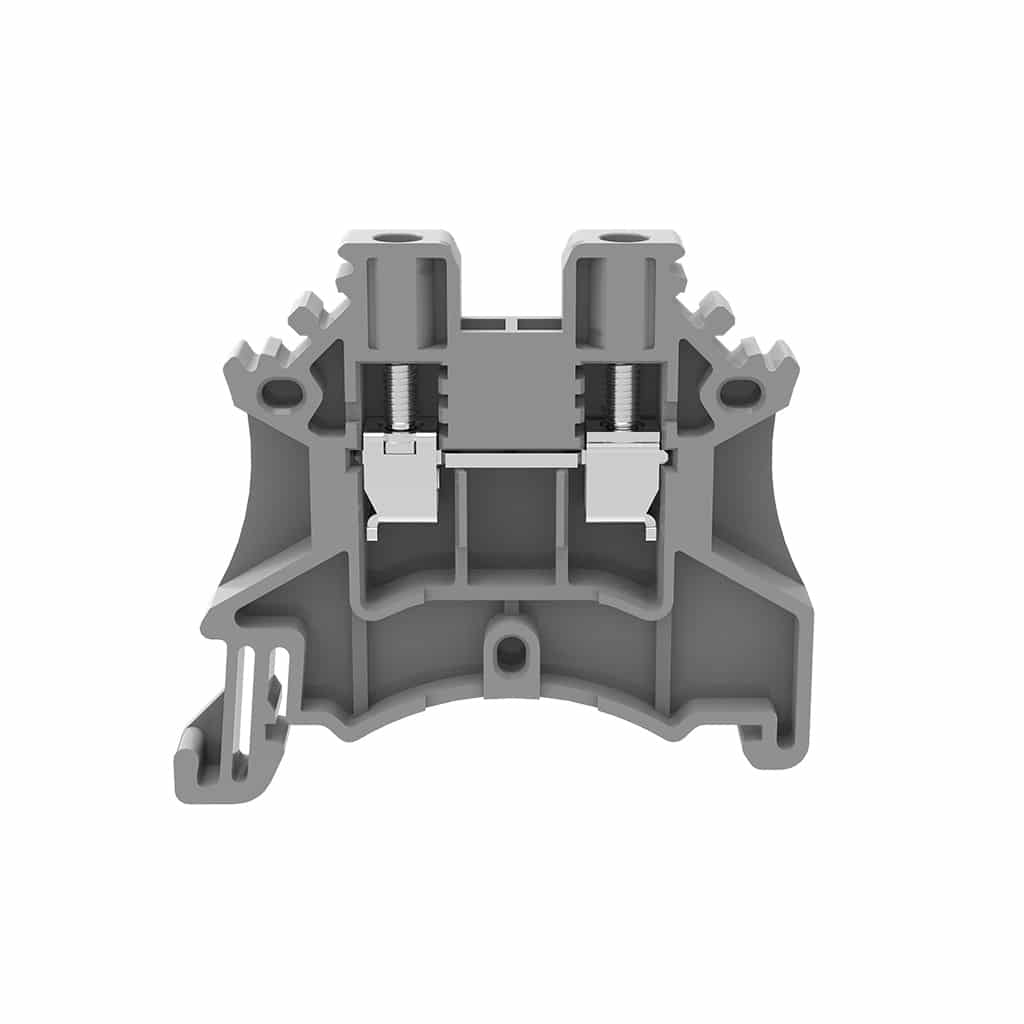

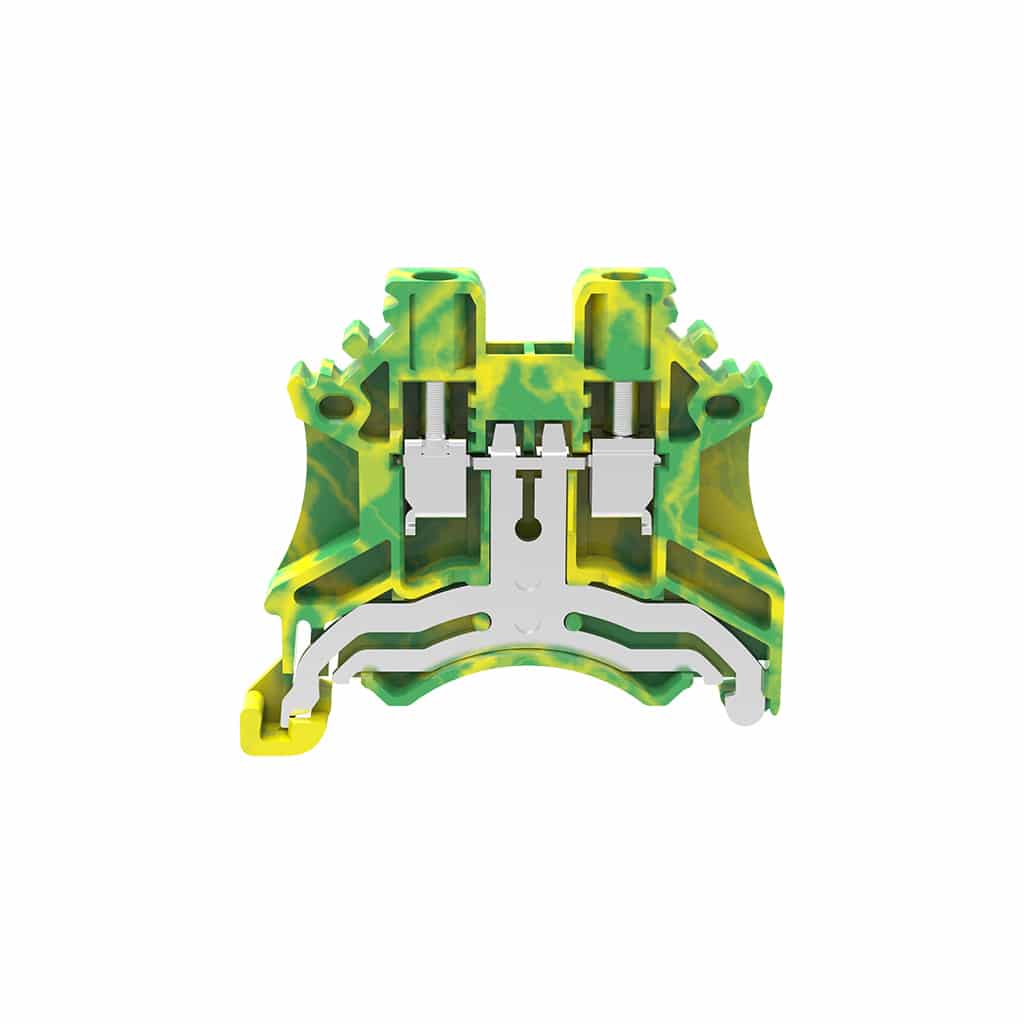

| Description | 2 Way Jumper, 2.5mm2 Earth Connector, 2.5mm2 Grey Connector, Blank Marking Tab, Grey End Piece |
| UL Ratings | 12-26awg, 12-26awg 25a @ 600V |
| VDE/CE Ratings | 0.2-2.5mm2 24a @ 800V, 0.2-2.5mm2 |
| Number of Positions | 2, 10 |
| Colour | Grey, Yellow/Green, Red, Blue, Black |
| Approvals | CE, UL |
Product Description
DC2.5 series is a Screw Type Din-Rail connector from Degson offering 2.5mm2 Cable entry. Product is available in multiple colours upon request. Dc2.5 are PA66 material offering the highest V0 flammability rating.
- 2.5mm2
- Flammability Rating -V0
- Temperature – -40 + 105C
- Material PA66
- Other colours available on request
