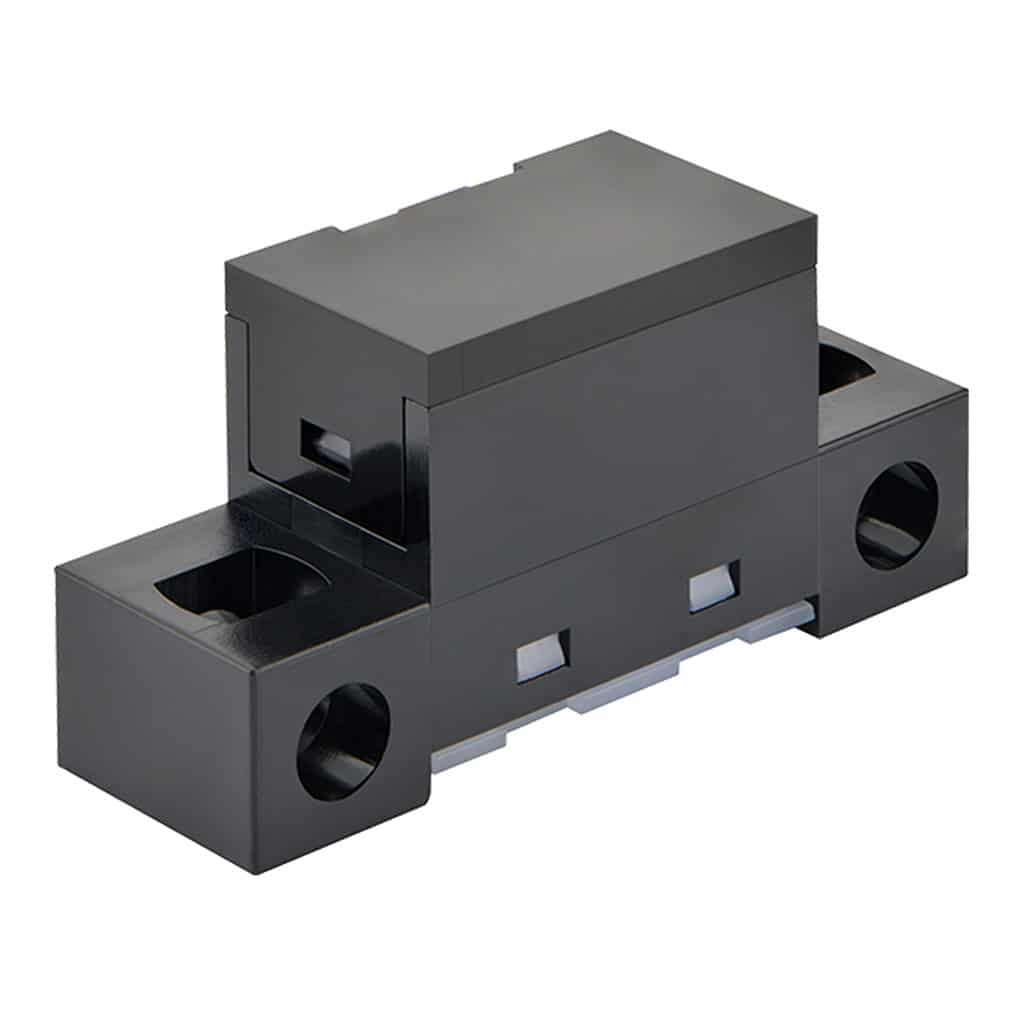

B5W-DB Series Reflective Sensor

SKU: B5W-DB Categories: , , Manufacturer:

Product specs

Weight 1.6 g
Dimensions 26 × 13 × 8.4 mm

Product Description

The B5W-DB series is a a super miniature long distance reflective sensor that can be installed anywhere. A unique design allows for this sensor to mounted from four different directions.

An ideal device for contactless applications, this sensor is ideally suited for hand or human body detection

  • Sensing Distance: 550mm
  • Differential Travel: 30% (Max)
  • Light Source: Infrared LED (850nm)
  • Power Supply: 12VDC
  • Current Consumption: 20mA (Max)
  • Operating Mode: Light-ON (When detecting objects, the sensor has output)
  • Control Output: NPN Open Collector
  • Response Time: Operate/Reset 1ms (Max)
  • IP50
