EE-SX1041

SKU: EE-SX1041 Categories: , Manufacturer:

Product specs

Emitter: Forward Current

50mA

Emitter: Pulse Forward Current

1A

Emitter: Reverse Voltage

4V

Detector: Collector-Emitter-Voltage

30V

Detector: Collector Current

20mA

Detector: Collector Dissipation

100mW

Temperature Range

-25°C to +95°C

Product Description

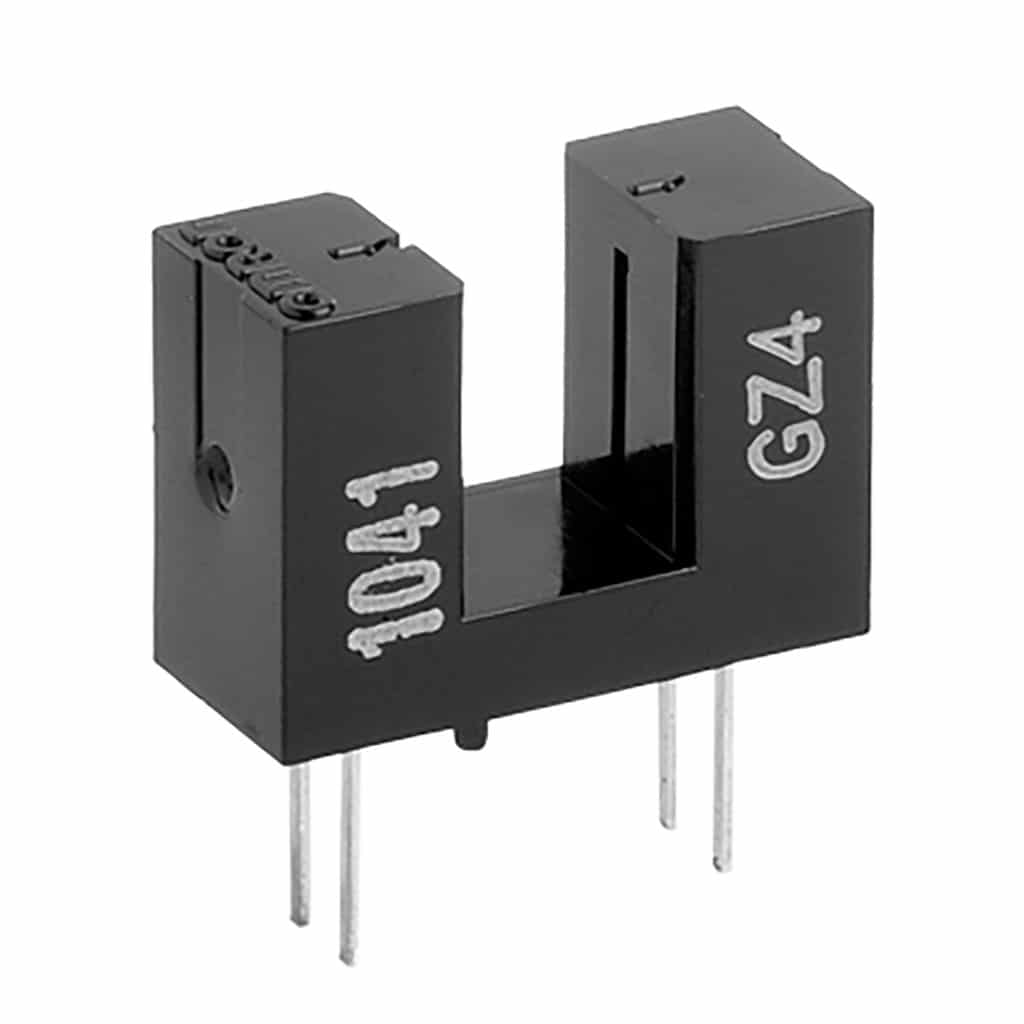

Easby are able to offer this Omron high resolution general purpose Photomicrosensor (Transmissive) which offers a 5.0mm wide slot with a 0.5mm wide aperture, in a PCB mounting package

  • 5.0mm Wide Slot
  • 0.5mm Wide Aperture
  • PCB Mounting Type
  • Emitter Forward Current: 50mA
  • Emitter Pulse Forward Current: 1A
  • Emitter Reverse Voltage: 4V
  • Detector Collector-Emitter Voltage: 30V
  • Detector Collector Current: 20mA
  • Detector Collector Dissipation: 100mW
  • Operating Temperature: -25C to +95C
  • Storage Temperature: -30C to +100C
  • Soldering Temperature: +260C
