EE-SX1106
Product specs
| Emitter: Forward Current | 50mA |
|---|---|
| Emitter: Reverse Voltage | 5V |
| Detector: Collector-Emitter-Voltage | 30V |
| Detector: Emitter-Collector Voltage | 4.5V |
| Detector: Collector Current | 30mA |
| Detector: Collector Dissipation | 80mW |
| Temperature Range | -25°C to +85°C |
Product Description

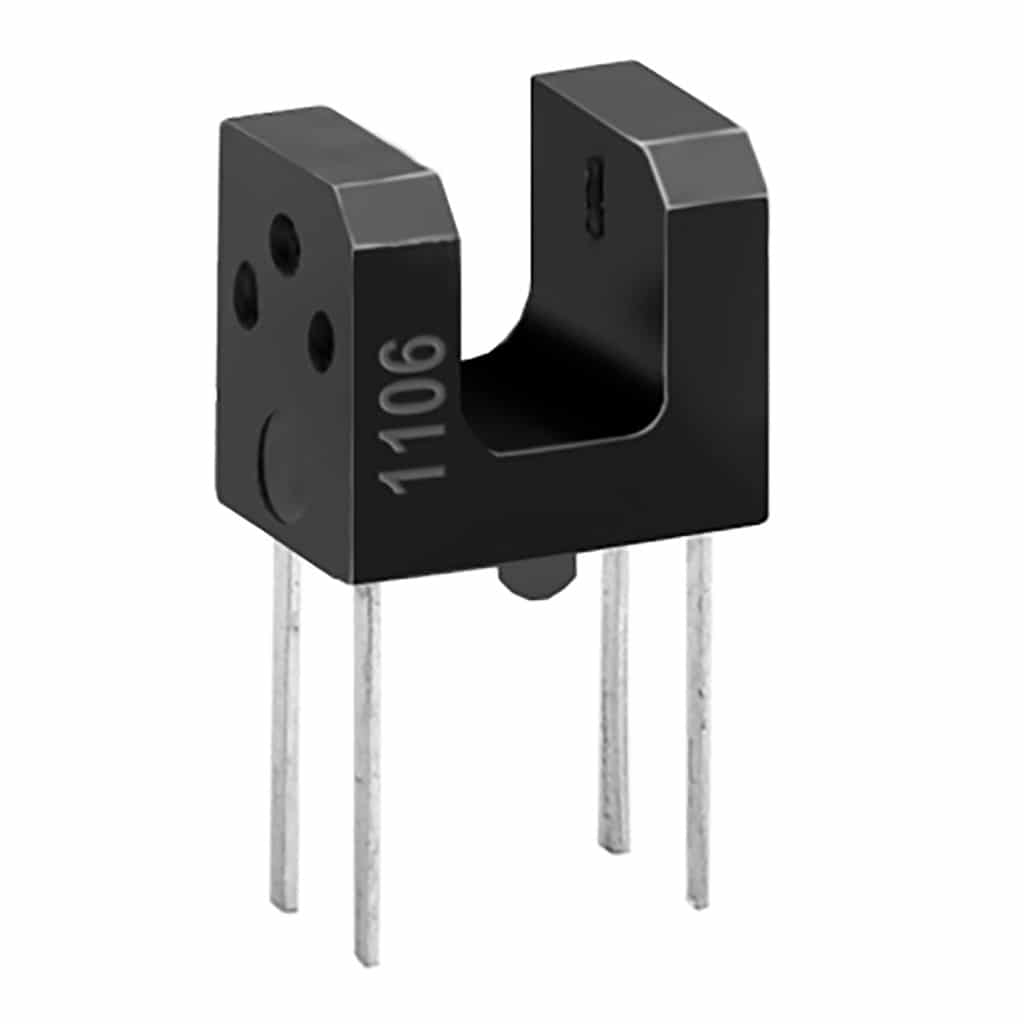

The EE-SX1106 from Omron is an ultra compact Photomicrosensor with a slot width of just 3.0mm. It is a PCB mounting type and is high resolution with a 0.4mm wide aperture
- 3.0mm Slot
- 0.4mm Wide Aperture
- Emitter Forward Current: 50mA
- Emitter Pulse Forward Current: 1A
- Emitter Reverse Voltage: 5V
- Detector Collector-Emitter Voltage: 30V
- Detector Emitter-Collector Voltage: 4.5V
- Detector Collector Current: 30mA
- Detector Collector Dissipation: 80mW
- Operating Temperature: -25C to + 85C
- Storage Temperature: -30C to +85C
- Soldering Temperature: +260C
