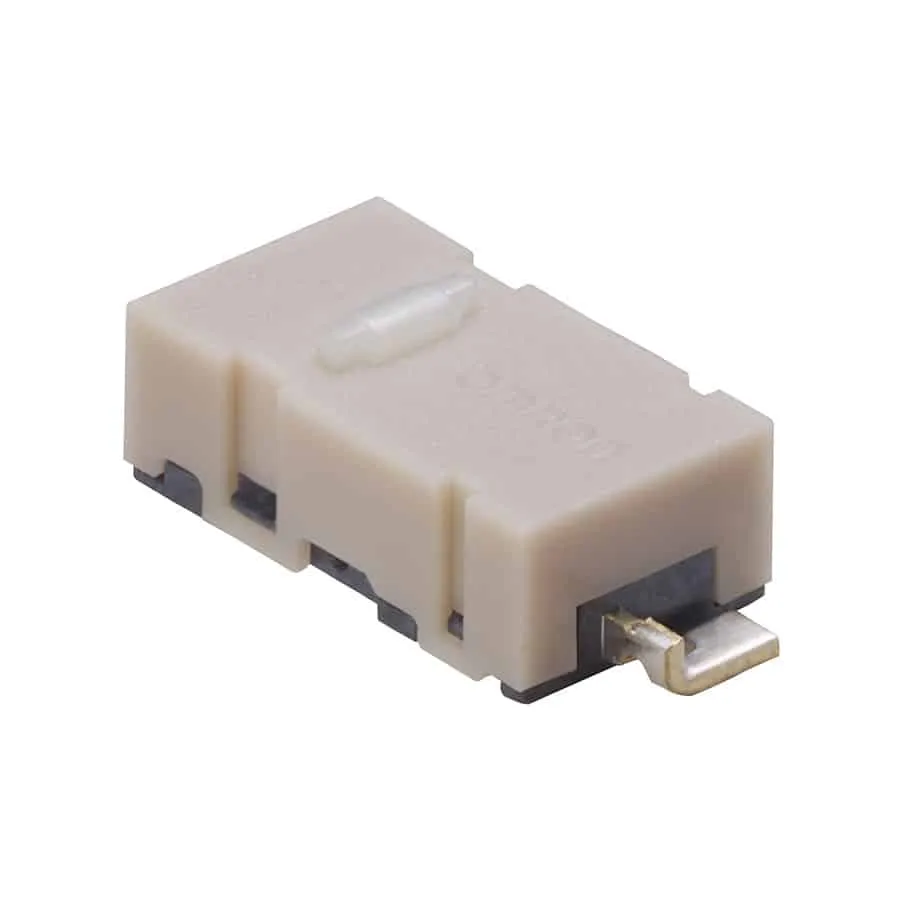

D2LS Ultra Subminature SMD Switch
Product specs
| Rated Voltage: | 6Vdc |
|---|---|
| Resistive Load: | 1mA |
| Operating Speed: | 1 mm to 500 mm/s |
| Weight: | Approx. 0.16 g |
Product Description
Compact Surface-mounting Switches are ideal for applications requiring long durability. High-force type with long durability are also available.
Features:
- High operating force type achieving long durability
- 0.6 & 1.2 N – 10,000,000 operations
- 0.6 N – 20,000,000 operations
- Clear click feeling
- Embossed taping package for automatic mounting
