Rising Clamp , 3.5mm Pitch – DG381-3.5-xxP-1400AH

SKU: DG381-3.5-xxP-1400AH Categories: , , Manufacturer:

Product specs

Height

8.5mm

Pitch

3.5mm

Wire Orientation

Horizontal

Poles

2, 3

Clamp Type

Rising Clamp

Colour

Black, Green

Product Description

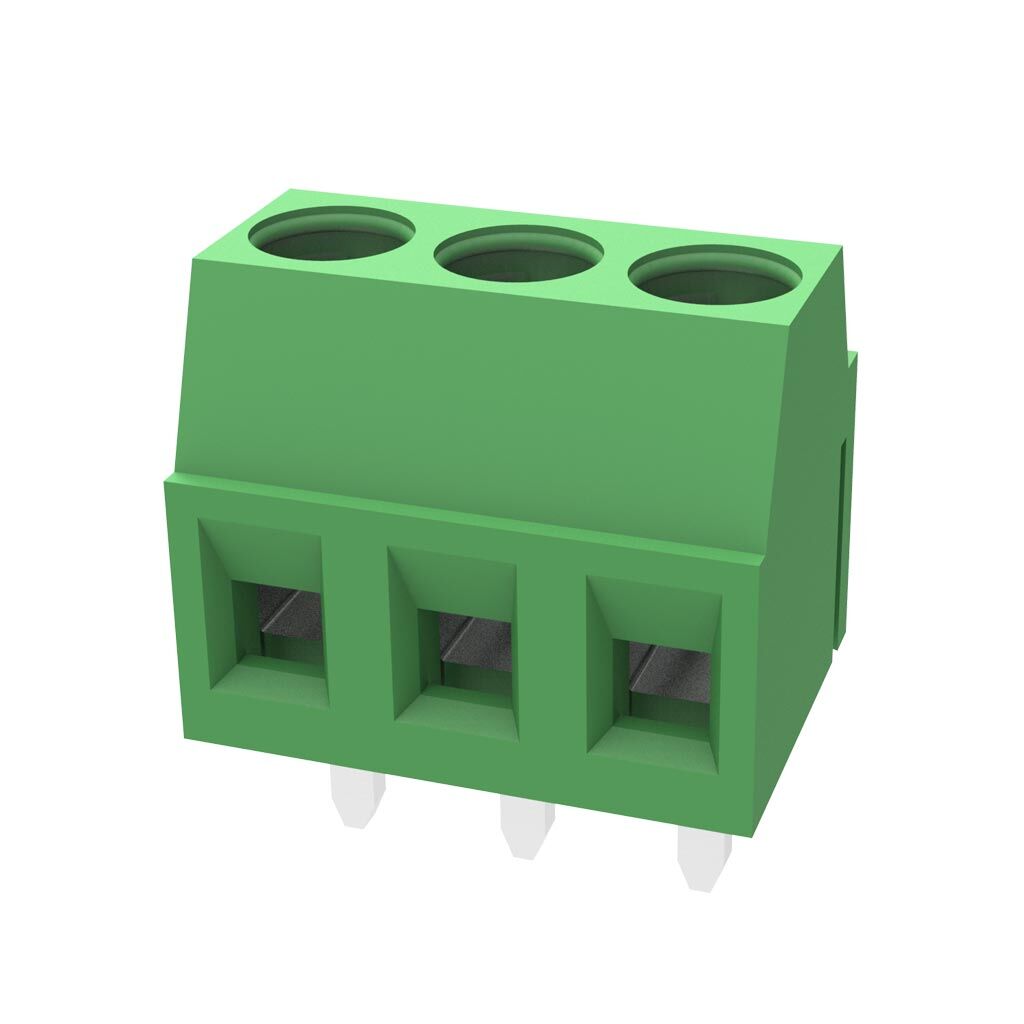

DG381-3.5 series is a 3.5mm pitch rising clamp terminal block series. Product is available in multiple poles and different colours upon request. Product is interlocking so any number of poles can be made up with a 2 & 3 way combination.

DG381 series is both UL (E228872) & VDE (40022127) approved and with the highest V0 flammability rating.





  • Pitch 3.5mm
  • 8.5mm High – 7.4mm Depth
  • Ambient Temperature – -40 + 105C
  • Housing – PA66
  • Screw – M2 slotted
  • Torque – 1.73 lb/In
  • UL File number E228872 – 16-26 Awg – 10A @ 300v
  • VDE File number 40022127 – 0.5-1.0mm2 – 10A @ 130v
  •  Interlocking device
  • Colour Green as standard
