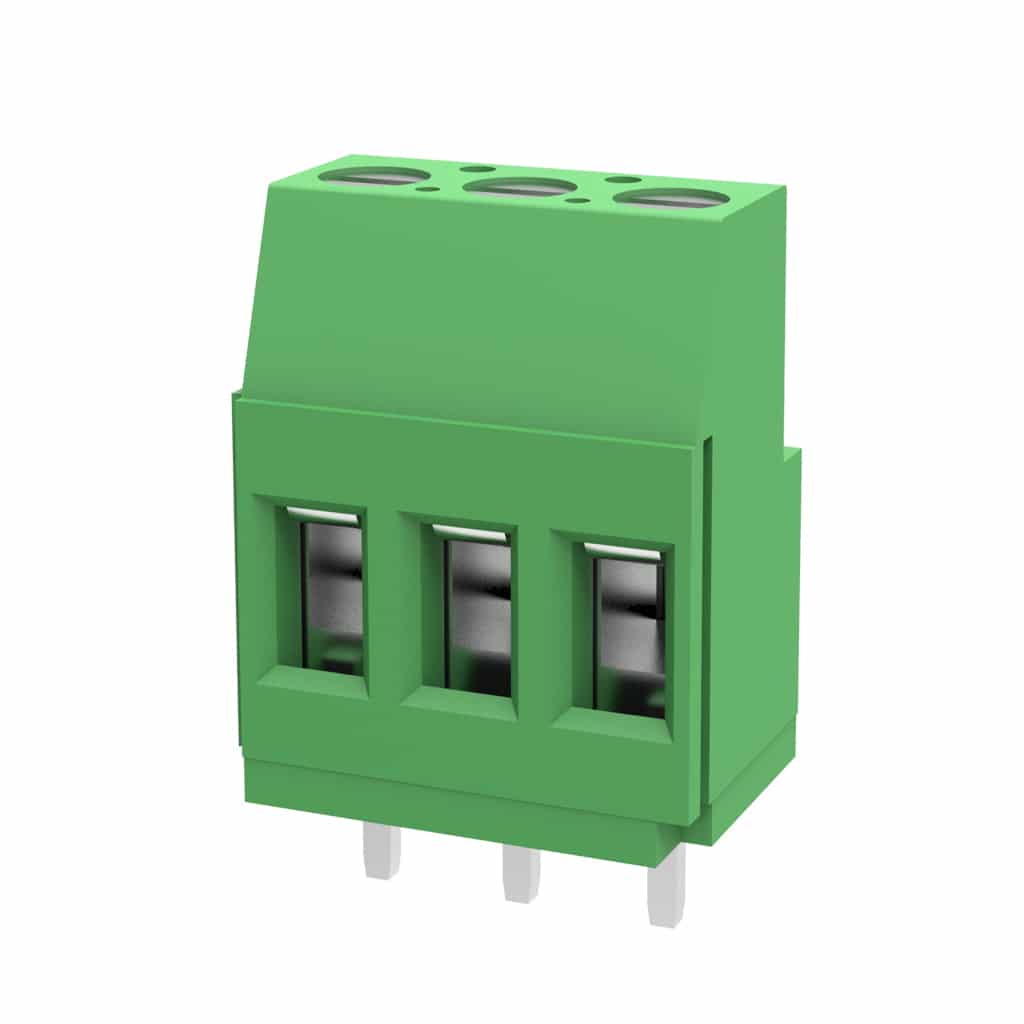

Rising Clamp , 5mm Pitch – DG129-5.0-xxP-1400AH

SKU: DG129-5.0-xxP-1400AH Categories: , , Manufacturer:

Product specs

Height

19.5mm

Pitch

5mm

Wire Orientation

Horizontal

Poles

2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

Clamp Type

Rising Clamp

Colour

Green

Product Description

DG129-5.0 series is one of Degson most popular rising clamp terminal block ranges. Product is available in multiple poles and colours upon request. Product is interlocking so any number of poles can be made up with a 2 & 3 way combination. The DG129 blocks have a removable base reducing the height if needed.

Dg129 series is both UL (E228872) & VDE (40022088) approved and with the highest V0 flammability rating.





  • Pitch 5mm
  • 19.5mm High – 10.5mm Depth
  • Ambient Temperature – -40 + 105C
  • Housing – PA66
  • Screw – M3 slotted
  • Torque – 3.5 lb/In
  • UL File number E228872 – 12-26 Awg – 20A @ 300v
  • VDE File number 40022088 – 0.5-2.5mm2 – 20A @ 250v
  •  Interlocking device
  • Colour Green as standard
