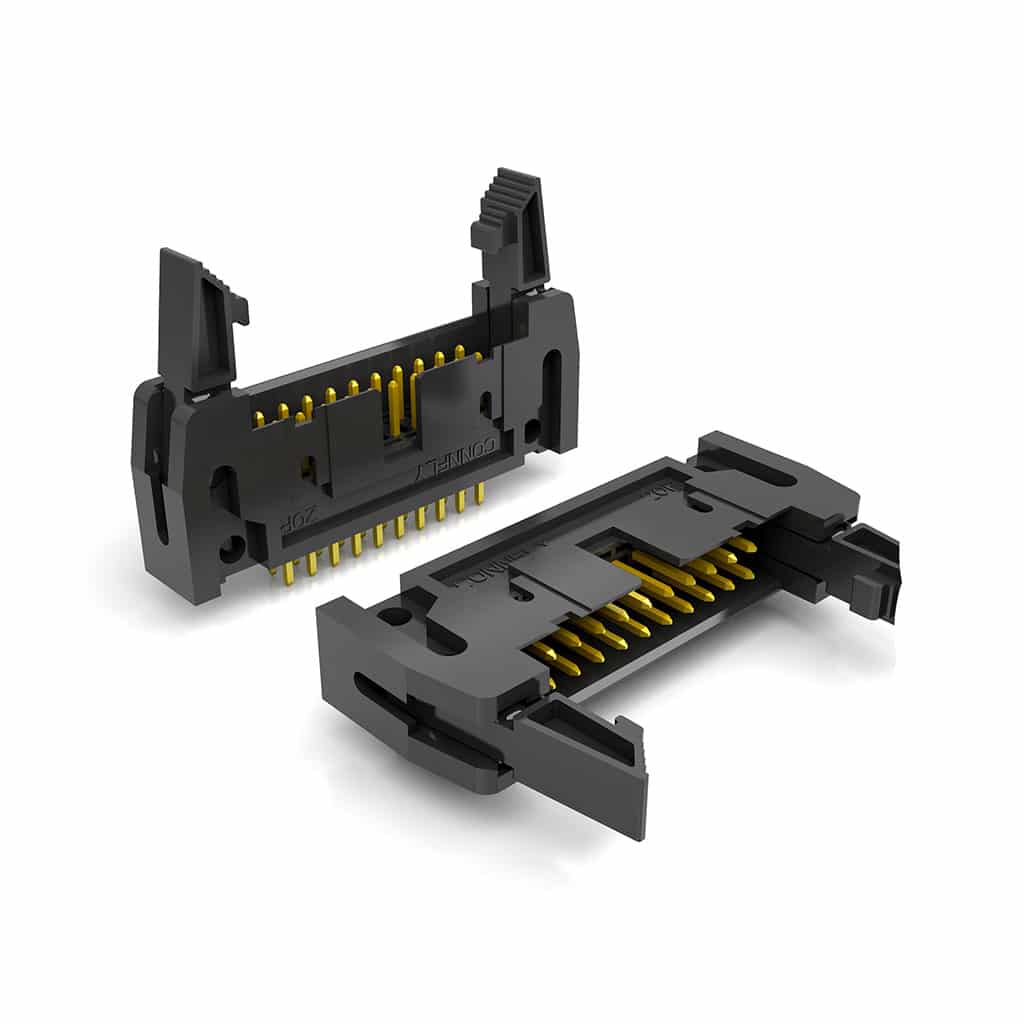

IDC Straight Latching PCB Header 2.54mm – DS1011 Series
Product specs
| Pitch | 2.54mm |
|---|---|
| Number of Pins | 10, 14, 16, 20, 26, 34, 40, 50 |
| Number of Rows | 2 |
| Tray | 70, 84, 98, 126, 140, 154, 182 |
- IDC Pitch – 2.54mm
- Contact/Plating – Copper Alloy / Full Gold Flash
- Insulator – Thermoplastic (UL 94V-0)
- Temperature Range – -40C + 105C
- Contact Resistance – 20mΩ max
- Insulation Resistance – 1000mΩ max
- Dielectric Withstand Voltage – AC 500V 1 Minute
